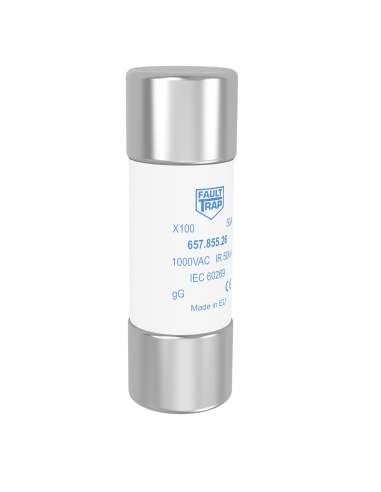

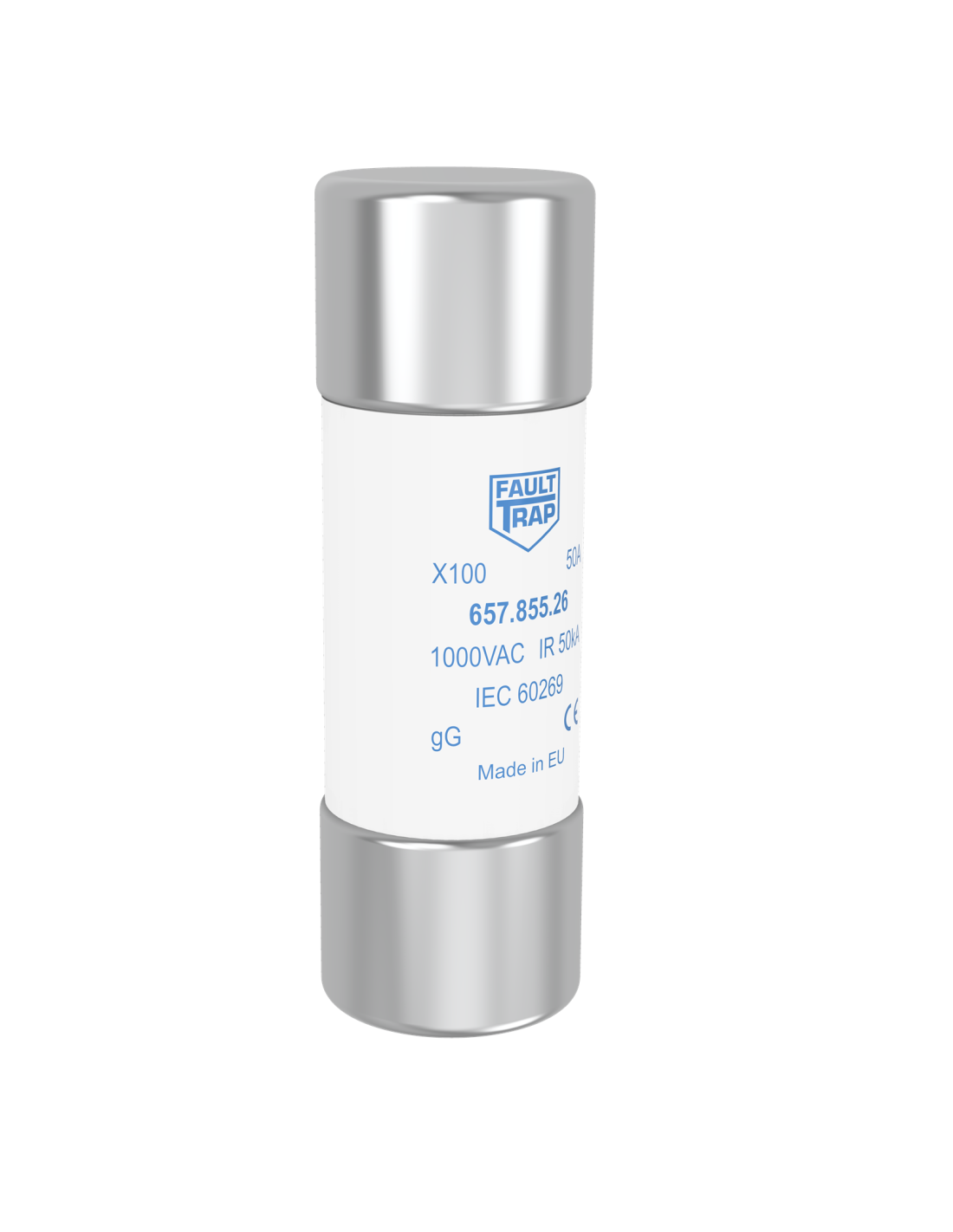

Fuse 1000VAC gG 6A 22x65mm
399.505.59
| Series name | X100 | Power loss (W) | 1,5 |
| Rated current In (A) | 6 | Class | gG |
| Rated Voltage Un AC (V) | 1000 | Rated breaking capacity I1 AC (kA) | 50 |
| Fuse Dimension (mm) | 22x65 | Fuse Connection/Terminal type | Cylindrical |
| Melting I²t value (A²s) | 120 | Total clearing I²t @Un AC (A²s) | 4150 |
| Applicable standards | IEC |
