All Products

Showing 1-12 of 807 item(s)

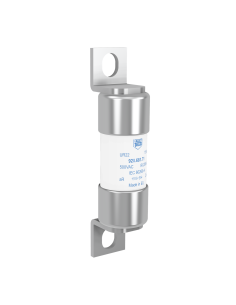

Fuse 500VAC IEC/550VAC UL aR 40A 22x58mm surface mount,...

Reference: 100.913.34

Series name: UR22

Power loss (W): 9,6

Rated current In (A): 40

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 148

Total clearing I²t @Un AC (A²s): 640

Applicable standards: IEC

Available

3D Datasheet

Compare

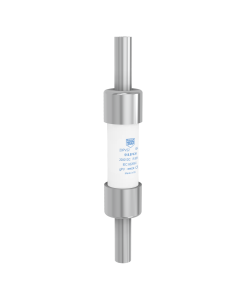

Fuse 2000VDC gPV 60A 22x85mm in-line aluminum terminals 6AWG

Reference: 100.942.90

Series name: 20PV22

Power loss (W): 13,9

Rated current In (A): 60

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1450

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 3A 10x85mm in-line terminals

Reference: 105.250.53

Series name: V108

Rated current In (A): 3

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: In-line for copper cable

Applicable standards: IEC

Available

3D Datasheet

Compare

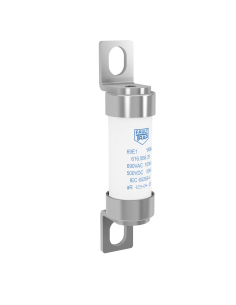

Fuse BS 690VAC/500VDC aR 45A 17x77mm fixing centres 63mm

Reference: 109.463.20

Series name: 69E1

Power loss (W): 13,8

Rated current In (A): 45

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 17x77

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 63,5

Melting I²t value (A²s): 114

Total clearing I²t @Un AC (A²s): 724

Applicable standards: IEC

Available

3D Datasheet

Compare

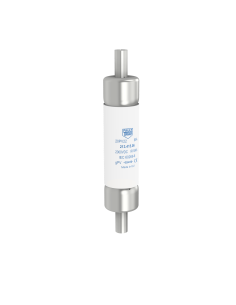

Fuse 2000VDC gPV 60A 22x85mm in-line copper terminals 6/8...

Reference: 110.602.39

Series name: 20PV22

Power loss (W): 13,9

Rated current In (A): 60

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1450

Applicable standards: IEC

Available

3D Datasheet

Compare

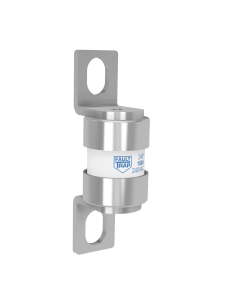

Fuse BS 240VAC/150VDC aR 32A 17x56mm fixing centres 42mm

Reference: 111.513.22

Series name: 24E1

Power loss (W): 5,1

Rated current In (A): 32

Class: aR

Rated Voltage Un AC (V): 240

Rated breaking capacity I1 AC (kA): 100

Rated Voltage Un DC (V): 150

Rated breaking capacity I1 DC (kA): 20

Melting I²t value (A²s): 39,1

Total clearing I²t @Un AC (A²s): 390

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 6300A size 2 61x50mm M10 flush end terminals

Reference: 111.779.56

Series name: C200

Power loss (W): 80

Rated current In (A): 630

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 61x50

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 55500

Total clearing I²t @Un AC (A²s): 305000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 350A 50x123mm surface mount,...

Reference: 112.127.07

Series name: Z050A

Rated current In (A): 350

Class: EV Fuse – Full range

Rated Voltage Un DC (V): 1000

Time costant L/R (ms): 2,5

Applicable standards: UL

Available

3D Datasheet

Compare

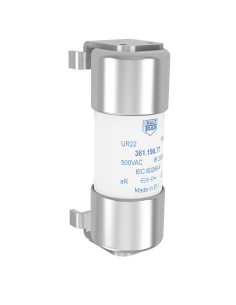

Fuse 500VAC IEC/550VAC UL aR 135A 22x58mm with pins for...

Reference: 114.304.22

Series name: UR22

Power loss (W): 28,6

Rated current In (A): 135

Class: aR

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 3640

Total clearing I²t @Un AC (A²s): 17800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 550A size 1 53x52mm M8 flush end terminals

Reference: 114.997.24

Series name: C100

Power loss (W): 84

Rated current In (A): 550

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 33000

Fixing dimensions: M8

Total clearing I²t @Un AC (A²s): 230000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 160A size 1 53x52mm M8 flush end terminals

Reference: 115.115.26

Series name: C100

Power loss (W): 24

Rated current In (A): 160

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1100

Fixing dimensions: M8

Total clearing I²t @Un AC (A²s): 7500

Applicable standards: IEC

Available

3D Datasheet

Compare

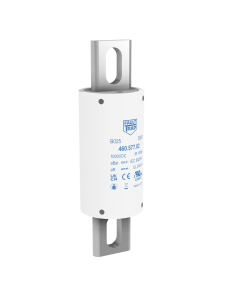

Fuse 1000VDC aBat/aR 200A 38x129mm tin plated axial...

Reference: 116.278.54

Series name: B025

Power loss (W): 30

Rated current In (A): 200

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 10400

Total clearing I²t @Un DC (A²s): 23000

Minimum breaking current (A): 1600

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

807 items
