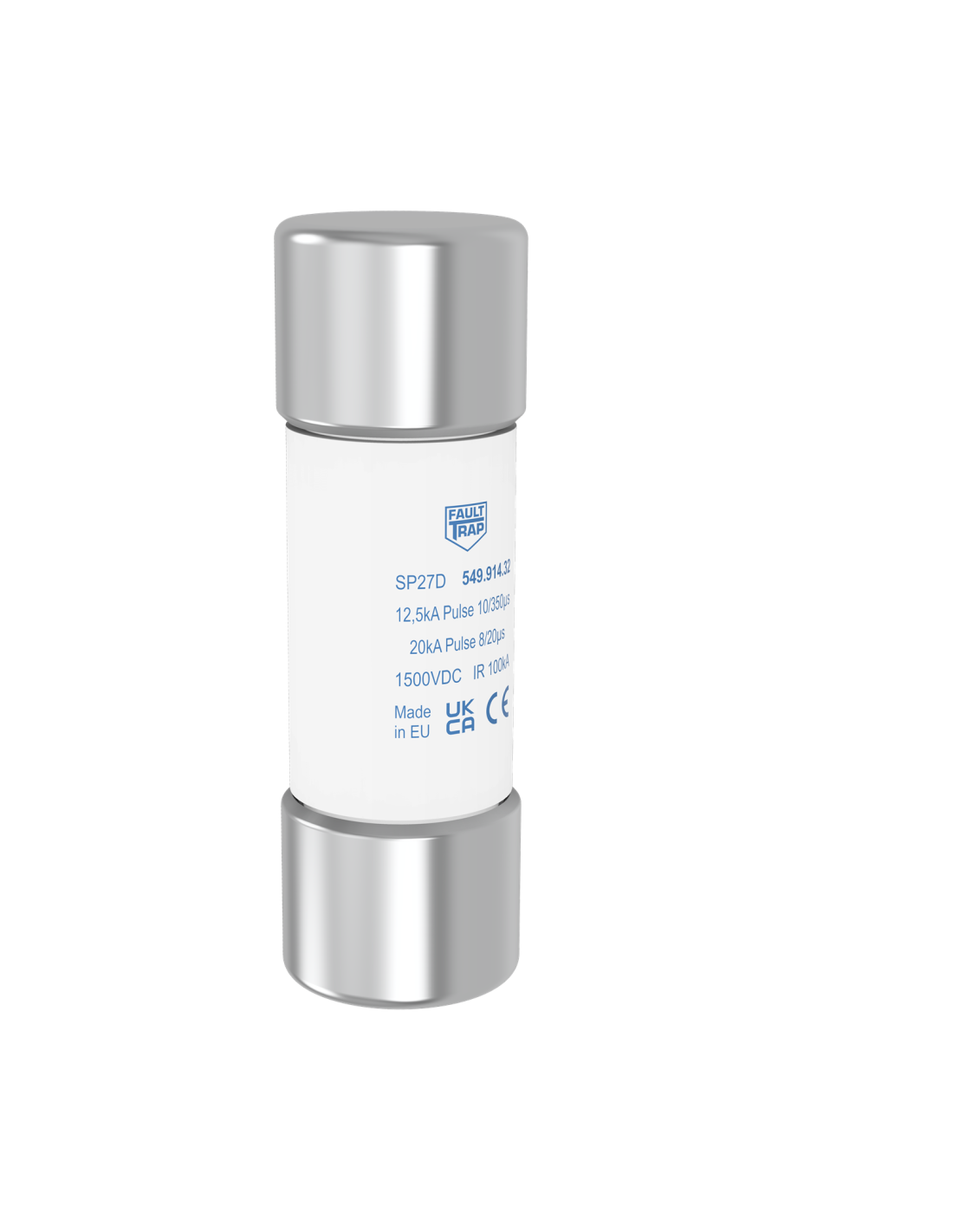

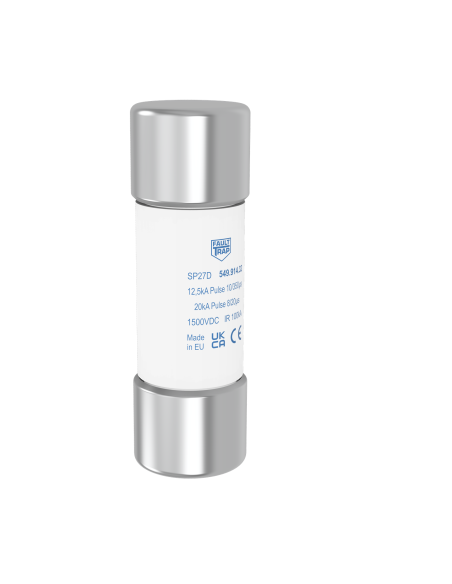

Fuse 1500VDC 27x85mm for protection of SPD with limp up to 12,5kA 10/350µs and In up to 20kA 8/20µs
549.914.32
| Series name | SP27D | Fuse Dimension (mm) | 27x85 |
| Rated Voltage Un DC (V) | 1500 | Rated breaking capacity I1 DC (kA) | 100 |
| Time costant L/R (ms) | 1-3 | Fuse Connection/Terminal type | Cylindrical |
| Melting I²t value (A²s) | 39700 | Applicable standards | IEC |
