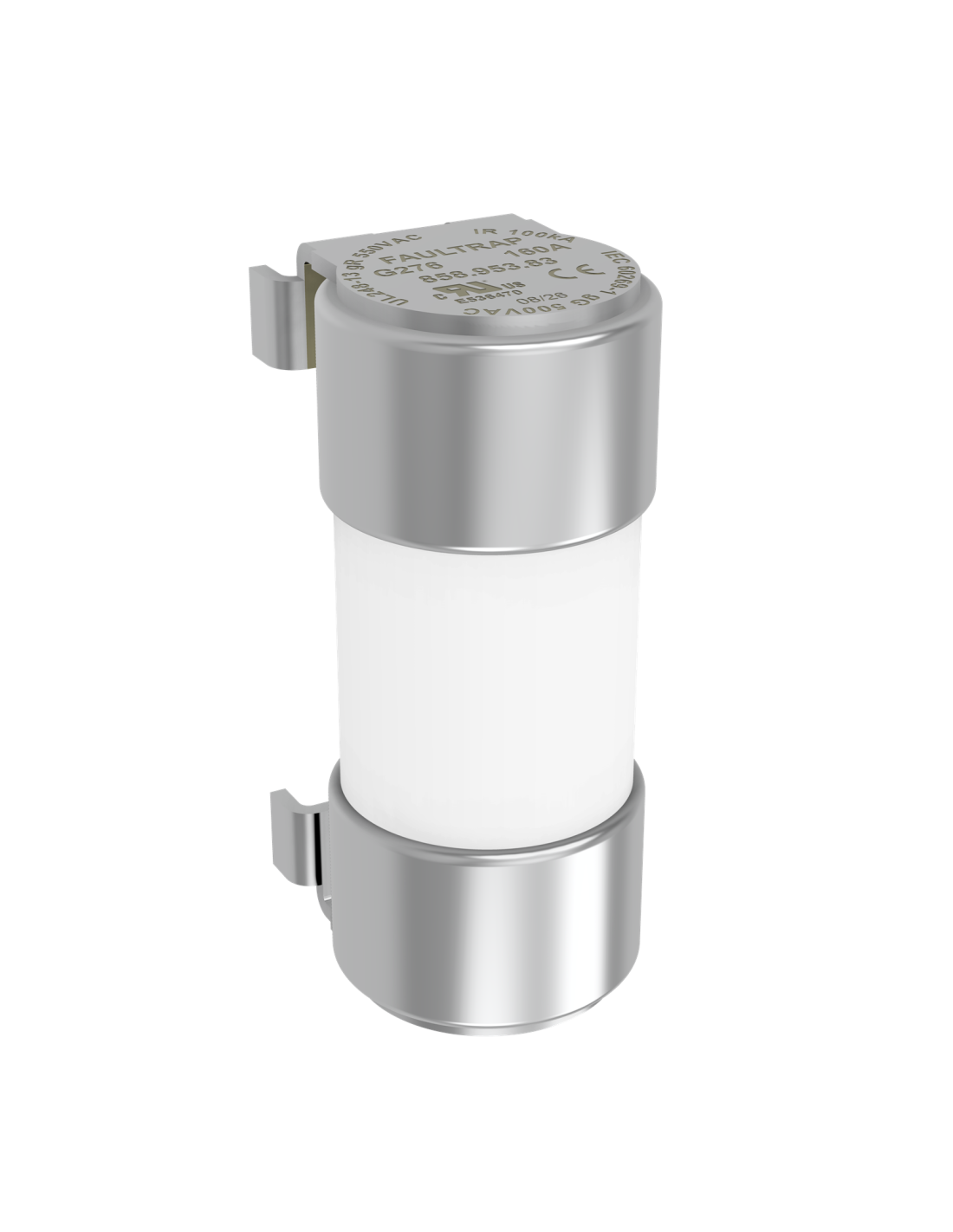

Fuse 500VAC gG/550VAC gR 100A 27x60mm with pins for PCB soldering
171.902.24
| Series name | G276 | Power loss (W) | 8 |
| Rated current In (A) | 100 | Class | gG, gR |
| Rated Voltage Un AC (V) | 500, 550 | Rated breaking capacity I1 AC (kA) | 100 |
| Fuse Dimension (mm) | 27x60 | Fuse Connection/Terminal type | PCB Mount Terminals |
| Melting I²t value (A²s) | 23650 | Total clearing I²t @Un AC (A²s) | 84000 |
| Applicable standards | IEC, UL |
