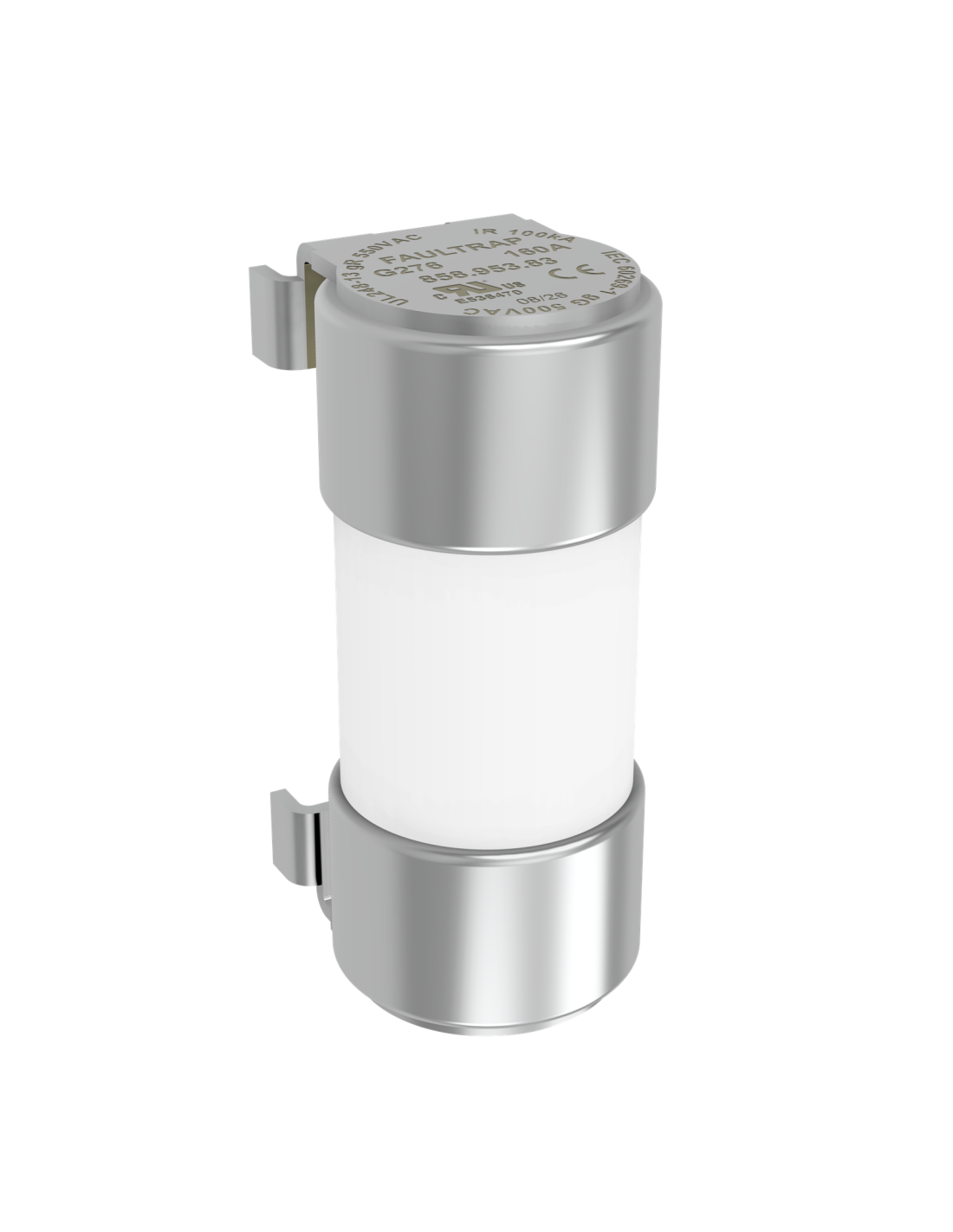

Fuse 500VAC gG/550VAC gR 160A 27x60mm with pins for PCB soldering
858.953.83
| Series name | G276 | Power loss (W) | 12 |
| Rated current In (A) | 160 | Class | gG, gR |
| Rated Voltage Un AC (V) | 500, 550 | Rated breaking capacity I1 AC (kA) | 100 |
| Fuse Dimension (mm) | 27x60 | Fuse Connection/Terminal type | PCB Mount Terminals |
| Melting I²t value (A²s) | 74650 | Total clearing I²t @Un AC (A²s) | 265000 |
| Applicable standards | IEC, UL |
