Available
Fuse 800VAC gG 4A 22x65mm
413.870.21
| Series name | X800 | Power loss (W) | 1,3 |
| Rated current In (A) | 4 | Class | gG |
| Rated Voltage Un AC (V) | 800 | Rated breaking capacity I1 AC (kA) | 80 |
| Fuse Dimension (mm) | 22x65 | Fuse Connection/Terminal type | Cylindrical |
| Melting I²t value (A²s) | 31 | Total clearing I²t @Un AC (A²s) | 560 |
| Applicable standards | IEC |

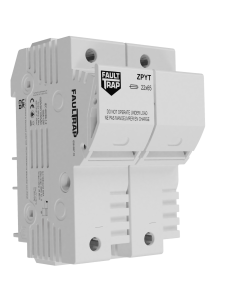

Accessories
