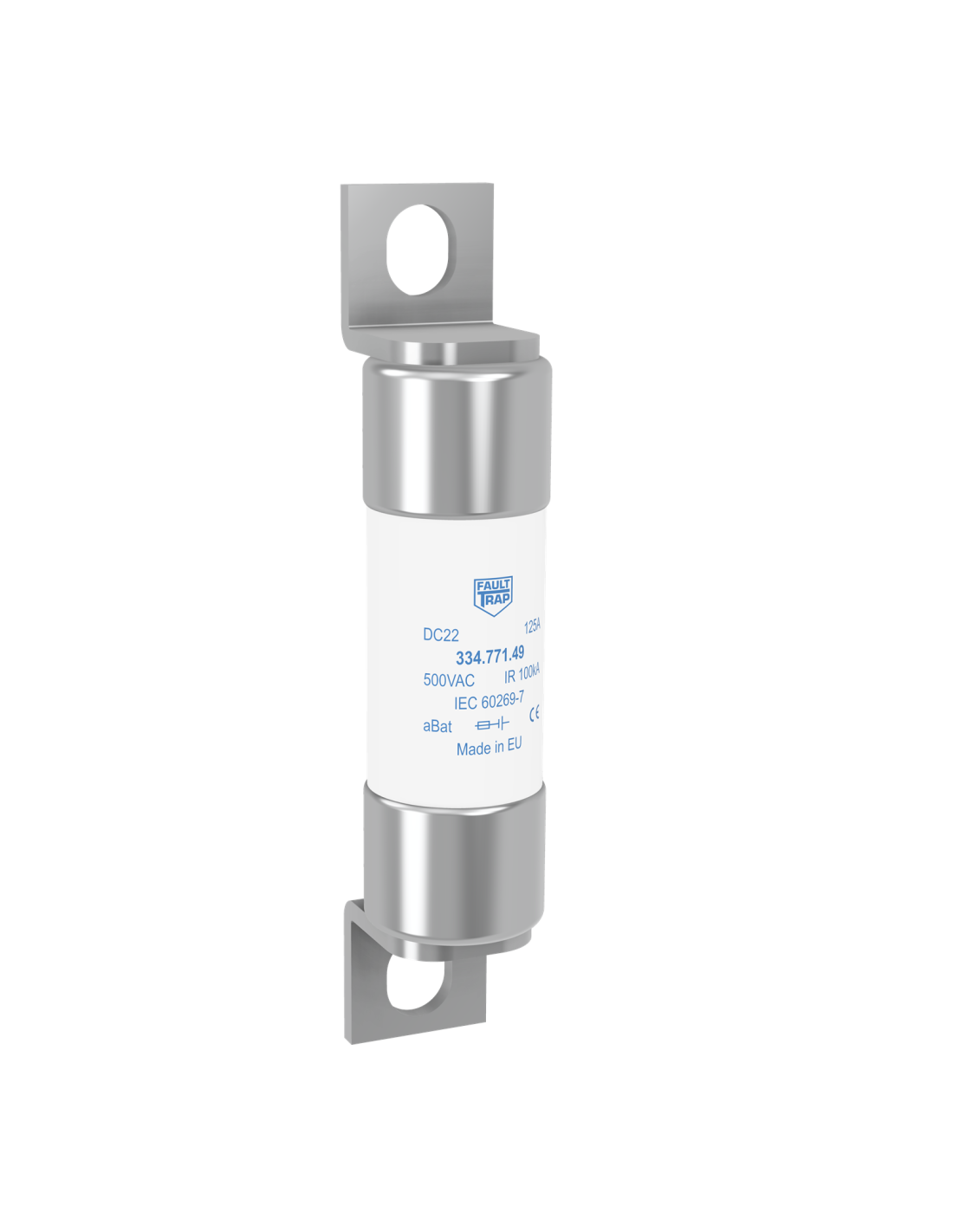

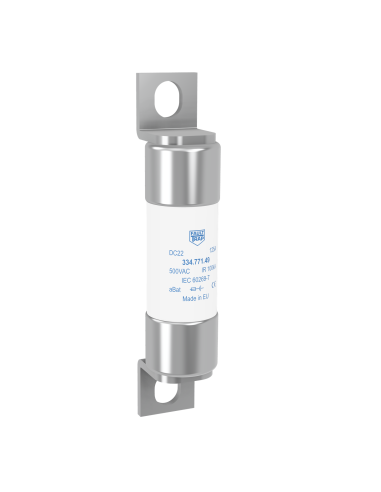

Fuse 1000VDC aBat 125A 22x65mm surface mount, fixing centres 87mm
334.771.49
| Series name | DC22 | Power loss (W) | 29,5 |
| Rated current In (A) | 125 | Class | aBat |
| Fuse Dimension (mm) | 22x65 | Rated Voltage Un DC (V) | 1000 |
| Rated breaking capacity I1 DC (kA) | 100 | Fixing connection centres (mm) | 87 |
| Time costant L/R (ms) | 3 | Fuse Connection/Terminal type | Screw fixing |
| Melting I²t value (A²s) | 3550 | Total clearing I²t @Un DC (A²s) | 15600 |
| Applicable standards | IEC |
