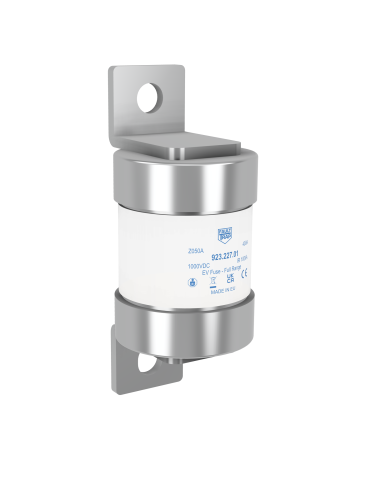

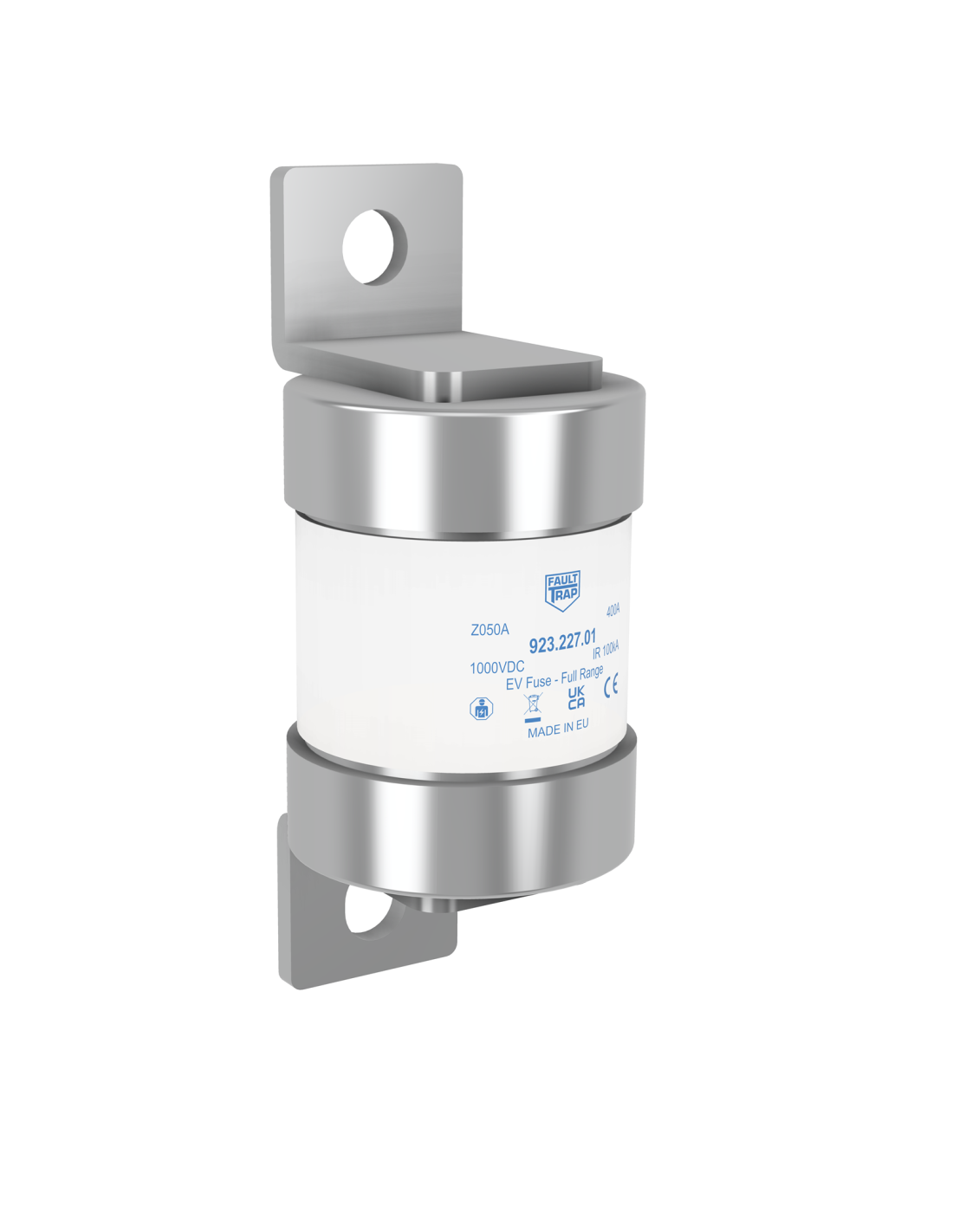

Fuse 1000VDC EV-full range 300A 50x123mm surface mount, fixing centres 100mm
682.493.71
| Series name | Z050A | Power loss (W) | 61 |
| Rated current In (A) | 300 | Class | EV Fuse – Full range |
| Fuse Dimension (mm) | 50x123 | Rated Voltage Un DC (V) | 1000 |
| Fixing connection centres (mm) | 100,1 | Time costant L/R (ms) | 2,5 |
| Fuse Connection/Terminal type | Screw fixing | Melting I²t value (A²s) | 23000 |
| Total clearing I²t @Un DC (A²s) | 188600 | Minimum breaking current (A) | 600 |
| Applicable standards | UL |
