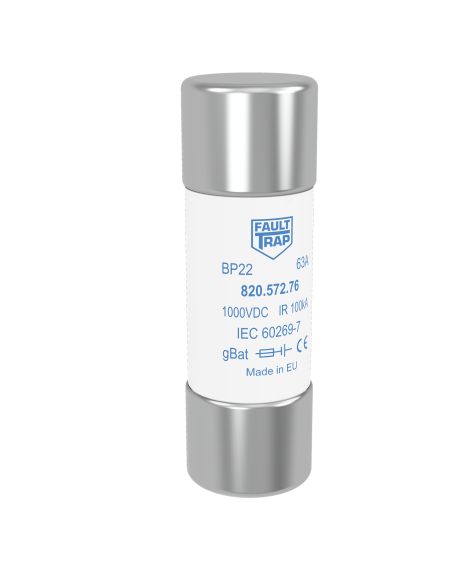

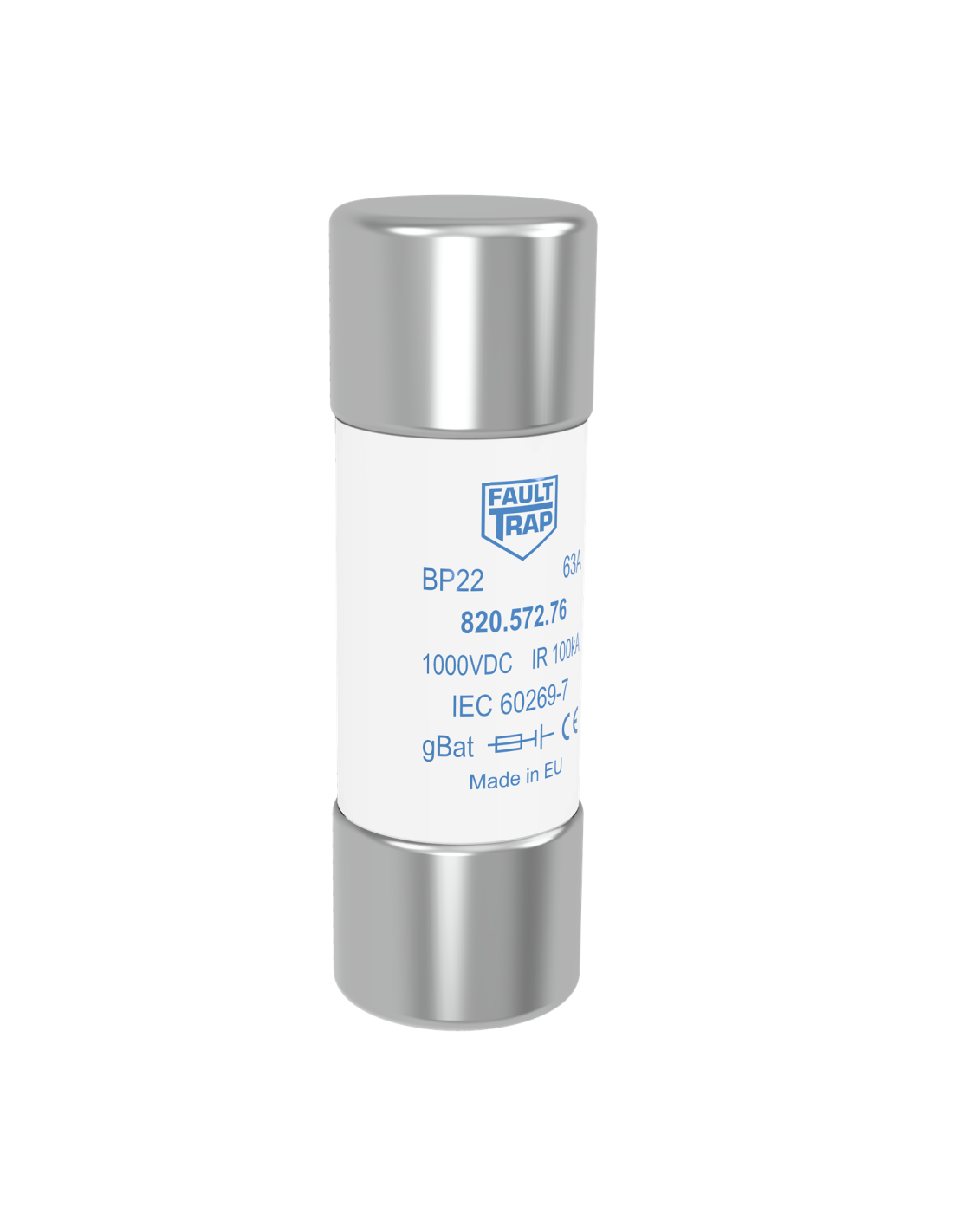

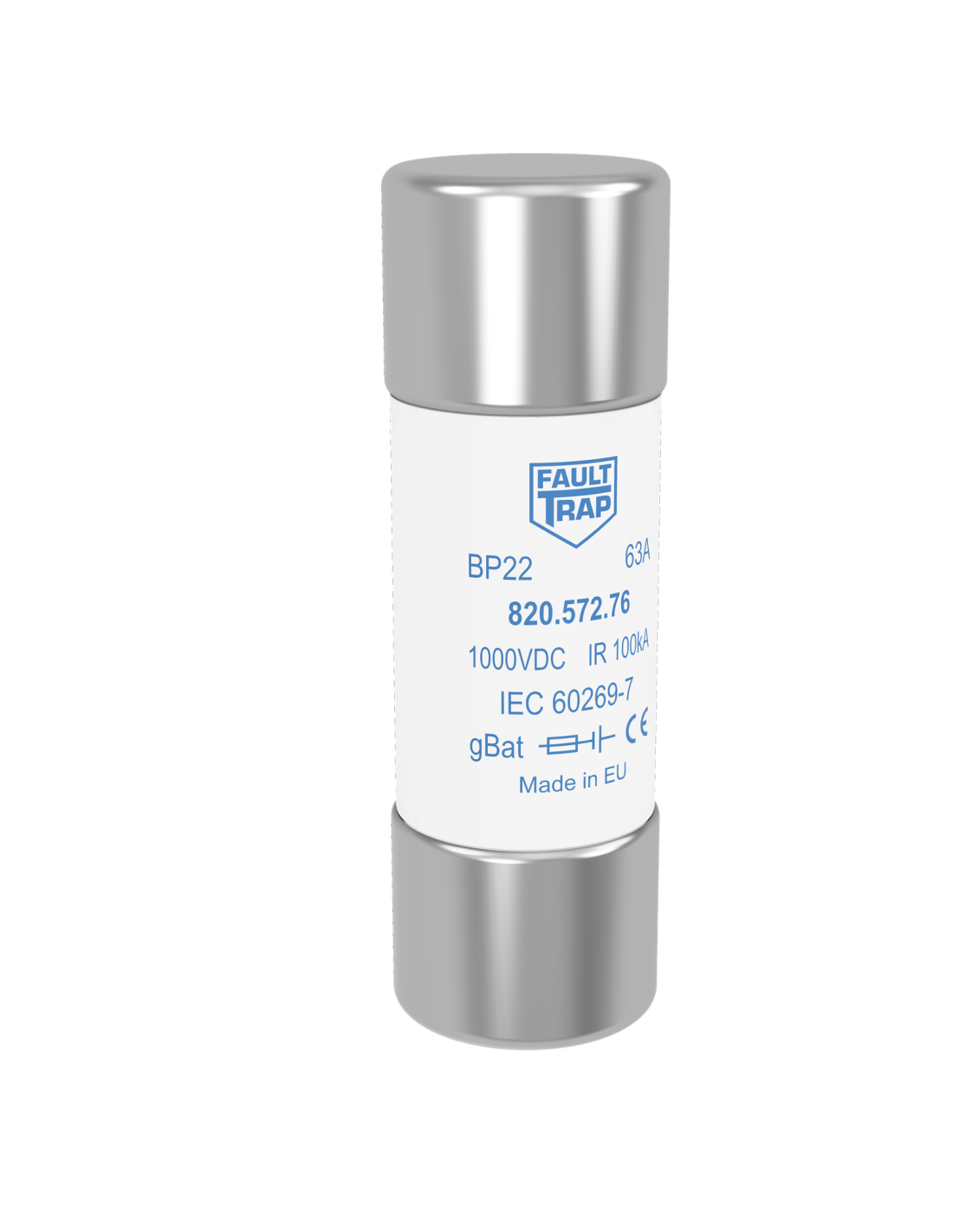

Fuse 1000VDC gBat 63A 22x65mm
820.572.76
| Series name | BP22 | Power loss (W) | 8,8 |
| Rated current In (A) | 63 | Class | gBat |
| Fuse Dimension (mm) | 22x65 | Rated Voltage Un DC (V) | 1000 |
| Rated breaking capacity I1 DC (kA) | 100 | Time costant L/R (ms) | 1-3 |
| Fuse Connection/Terminal type | Cylindrical | Melting I²t value (A²s) | 1660 |
| Minimum breaking current (A) | 126 | Applicable standards | IEC |
