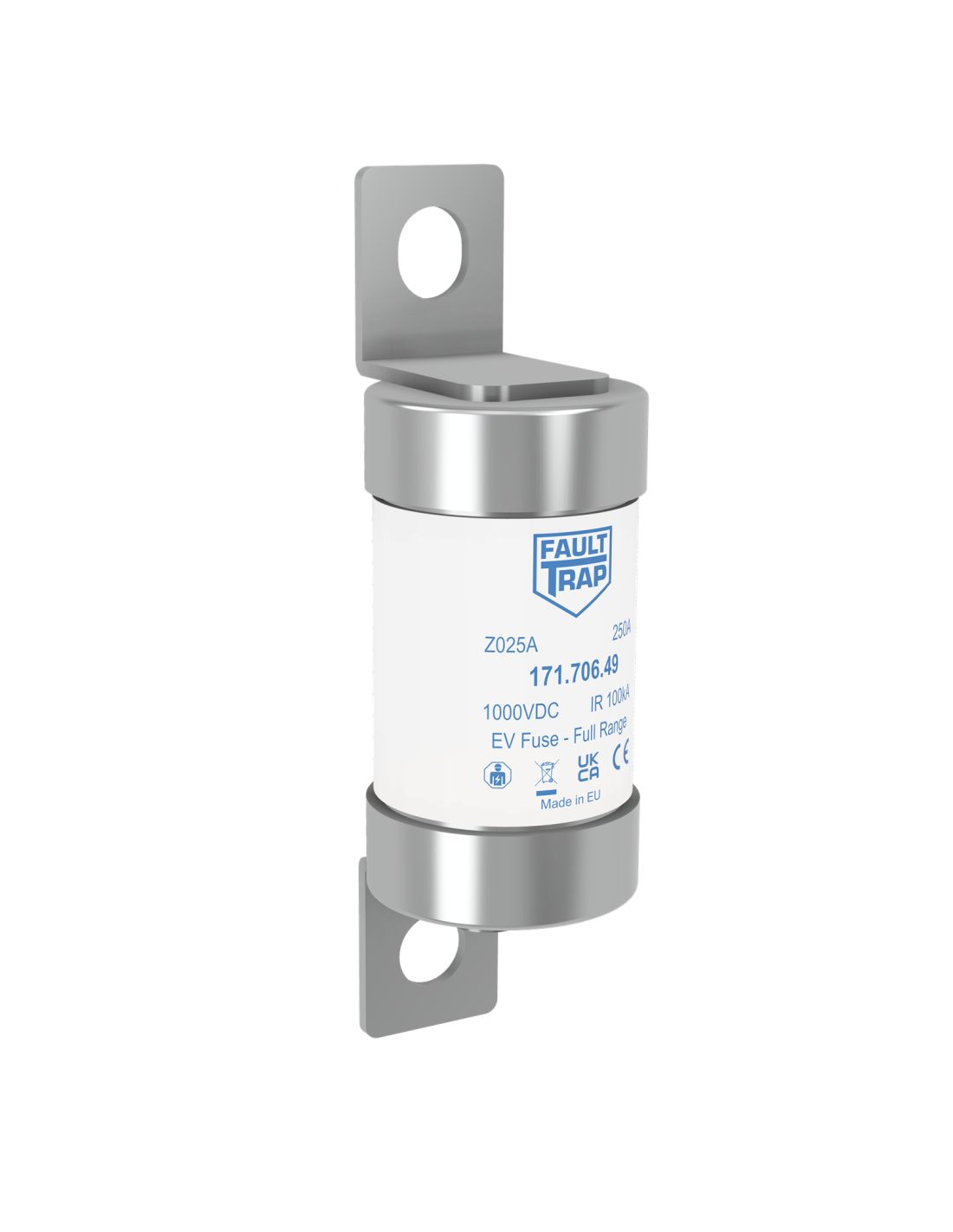

Fuse for automotive 1000V DC EV-full range 250A 37x123mm surface mount terminals, fixing centres 100mm
171.706.49
| Series name | Z025A | Power loss (W) | 42 |
| Rated current In (A) | 250 | Class | EV Fuse – Full range |
| Fuse Dimension (mm) | 37x123 | Rated Voltage Un DC (V) | 1000 |
| Rated breaking capacity I1 DC (kA) | 100 | Fixing connection centres (mm) | 100,1 |
| Time costant L/R (ms) | 2,5 | Fuse Connection/Terminal type | Screw fixing |
| Melting I²t value (A²s) | 23700 | Total clearing I²t @Un DC (A²s) | 194340 |
| Minimum breaking current (A) | 500 |
