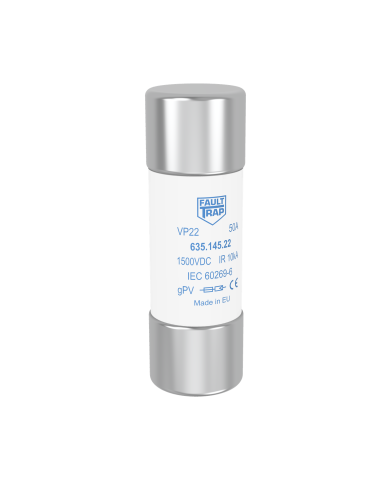

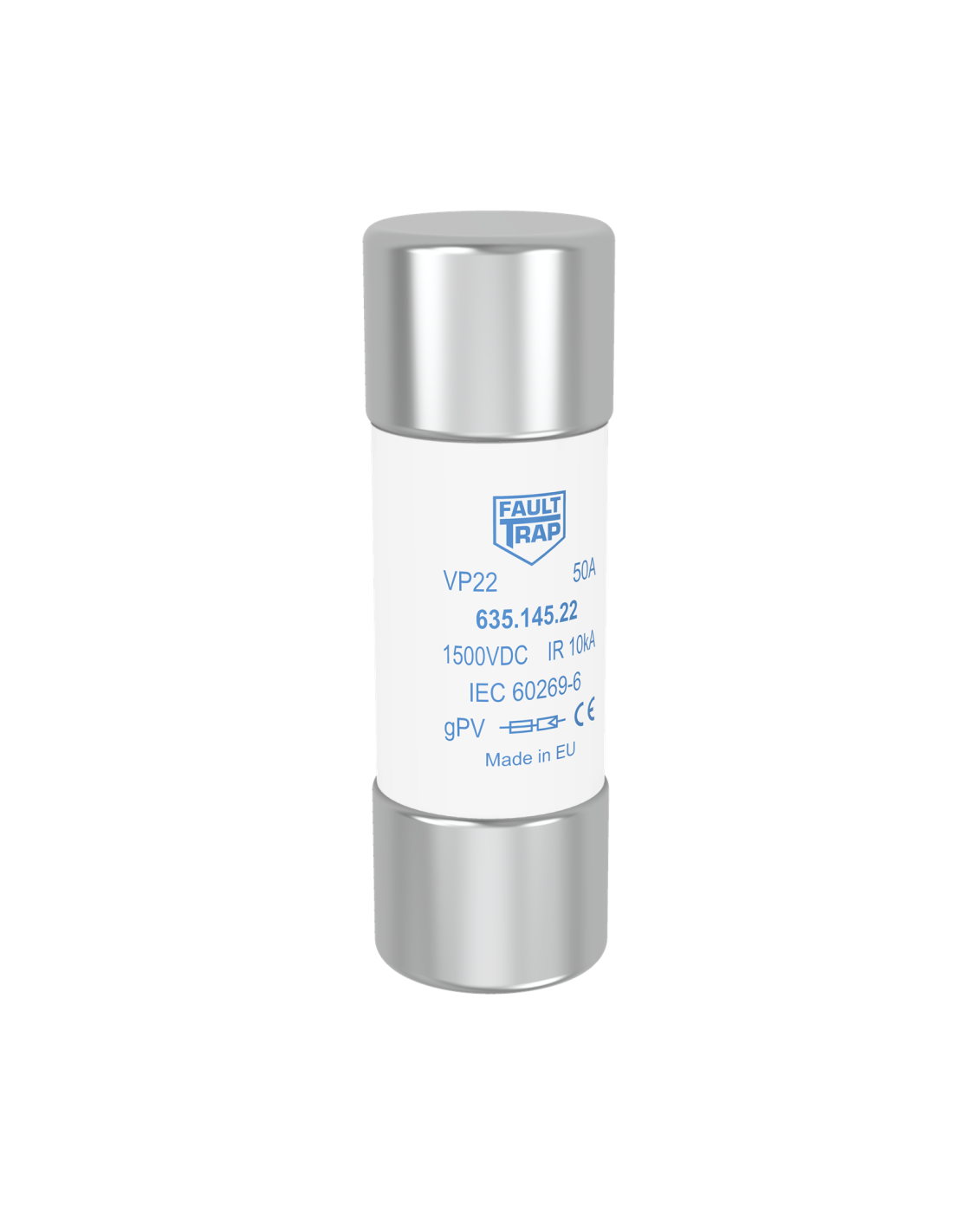

Fuse 1500VDC gPV 50A 22x65mm
635.145.22
| Series name | VP22 | Power loss (W) | 9 |
| Rated current In (A) | 50 | Class | gPV, gR |
| Rated Voltage Un AC (V) | 800 | Rated breaking capacity I1 AC (kA) | 100 |
| Fuse Dimension (mm) | 22x65 | Rated Voltage Un DC (V) | 1500 |
| Rated breaking capacity I1 DC (kA) | 10 | Time costant L/R (ms) | 1-3 |
| Fuse Connection/Terminal type | Cylindrical | Melting I²t value (A²s) | 740 |
| Total clearing I²t @Un AC (A²s) | 4100 | Total clearing I²t @Un DC (A²s) | 6550 |
| Applicable standards | IEC |
