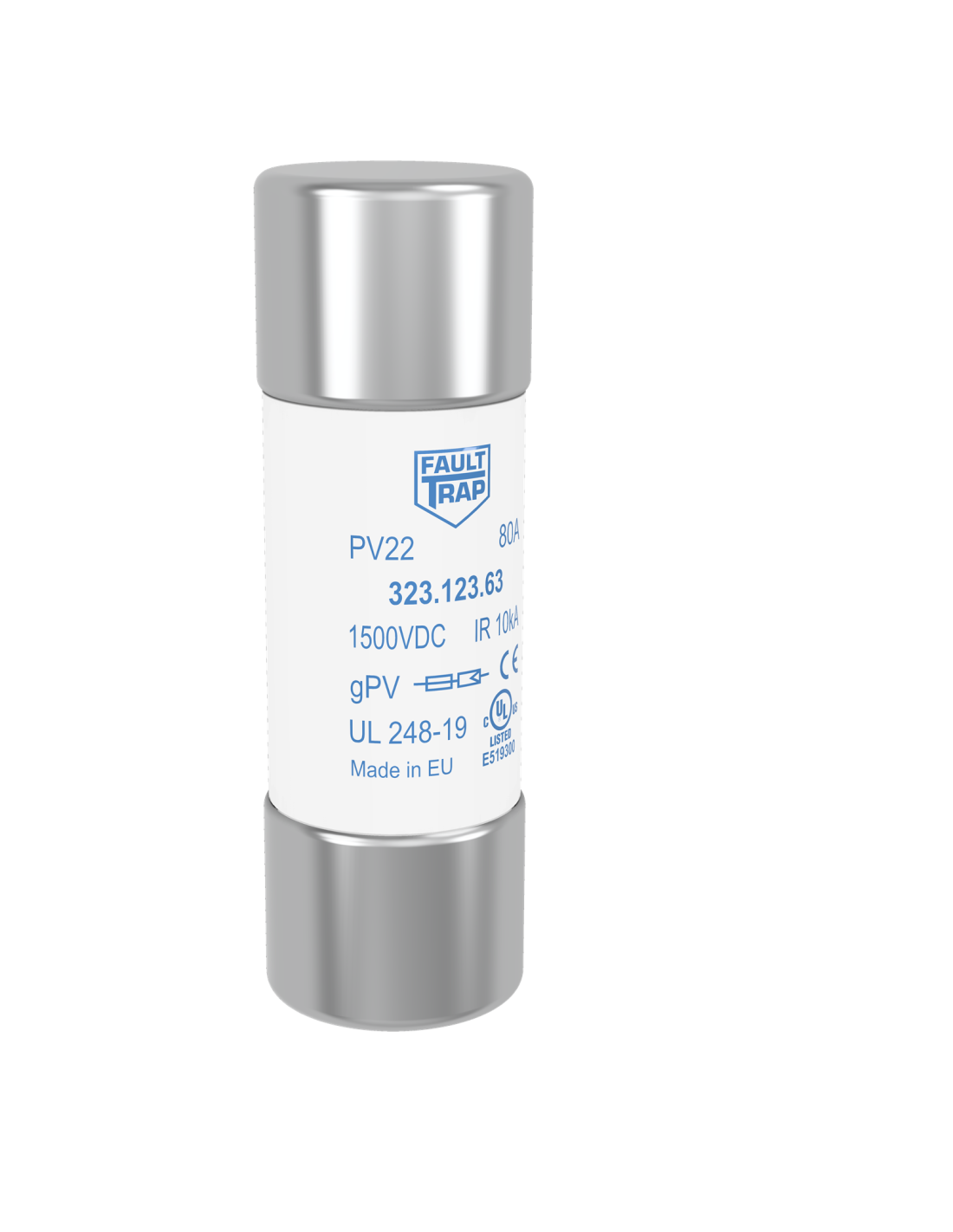

Fuse 1500VDC gPV 80A 22x65mm
323.123.63
| Series name | PV22 | Power loss (W) | 14,9 |
| Rated current In (A) | 80 | Class | gPV |
| Fuse Dimension (mm) | 22x65 | Rated Voltage Un DC (V) | 1500 |
| Rated breaking capacity I1 DC (kA) | 10 | Time costant L/R (ms) | 1-3 |
| Fuse Connection/Terminal type | Cylindrical | Melting I²t value (A²s) | 3000 |
| Total clearing I²t @Un DC (A²s) | 14900 | Applicable standards | UL |
