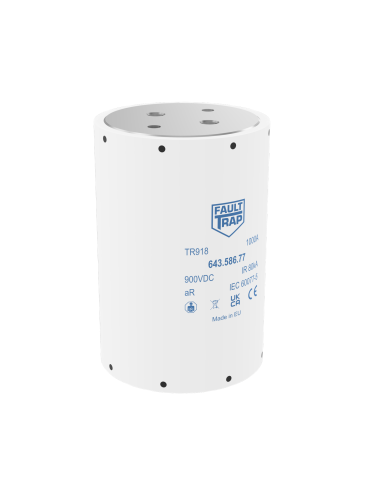

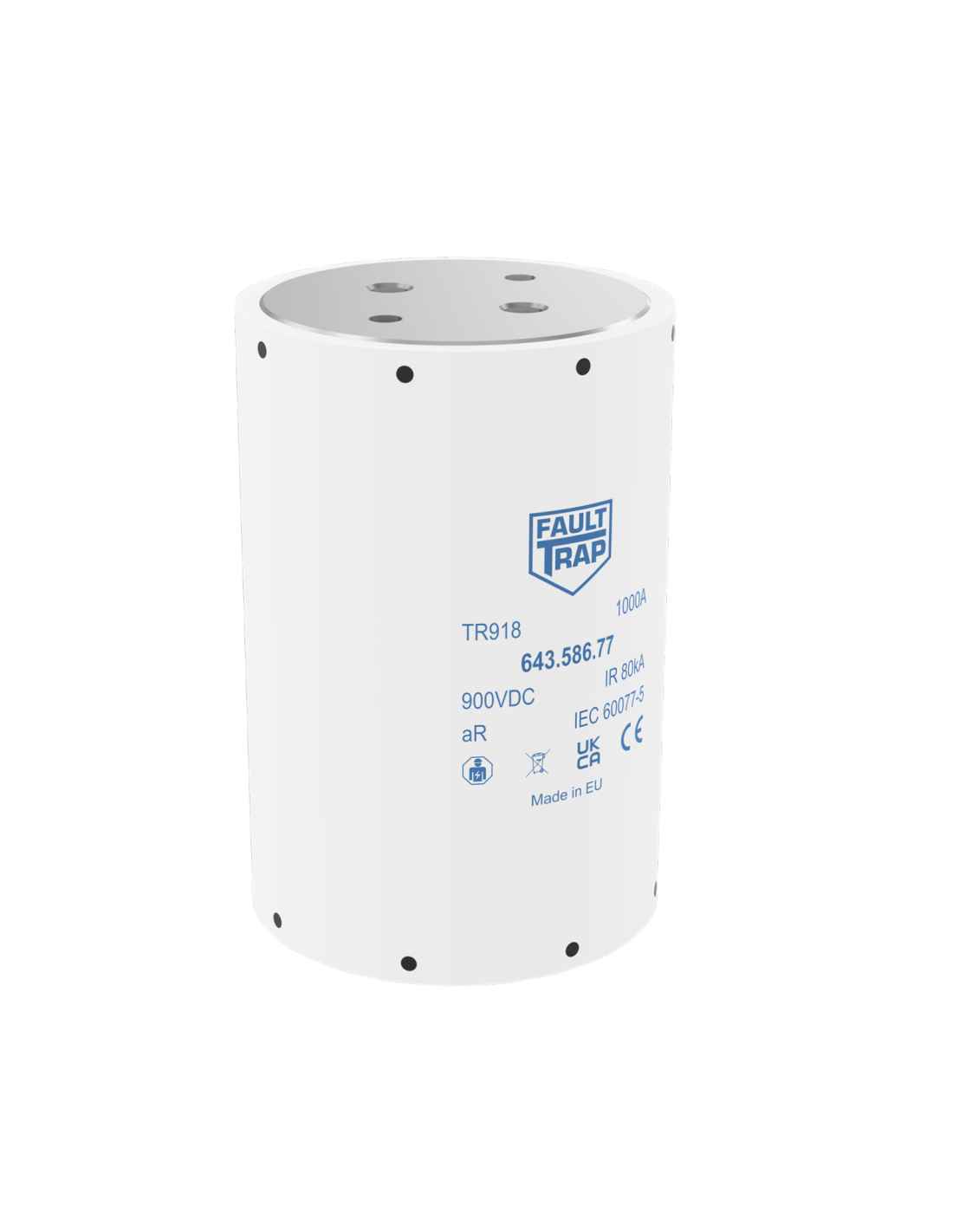

Fuse 900VDC aR 1000A 108x161,5mm M12 flush end terminals
643.586.77
| Series name | TR918 | Rated current In (A) | 1000 |
| Class | aR | Fuse Dimension (mm) | 108x161,5 |
| Rated Voltage Un DC (V) | 900 | Rated breaking capacity I1 DC (kA) | 80 |
| Time costant L/R (ms) | 80 | Fuse Connection/Terminal type | Screw fixing |
| Melting I²t value (A²s) | - | Total clearing I²t @Un DC (A²s) | - |
| Applicable standards | IEC |
