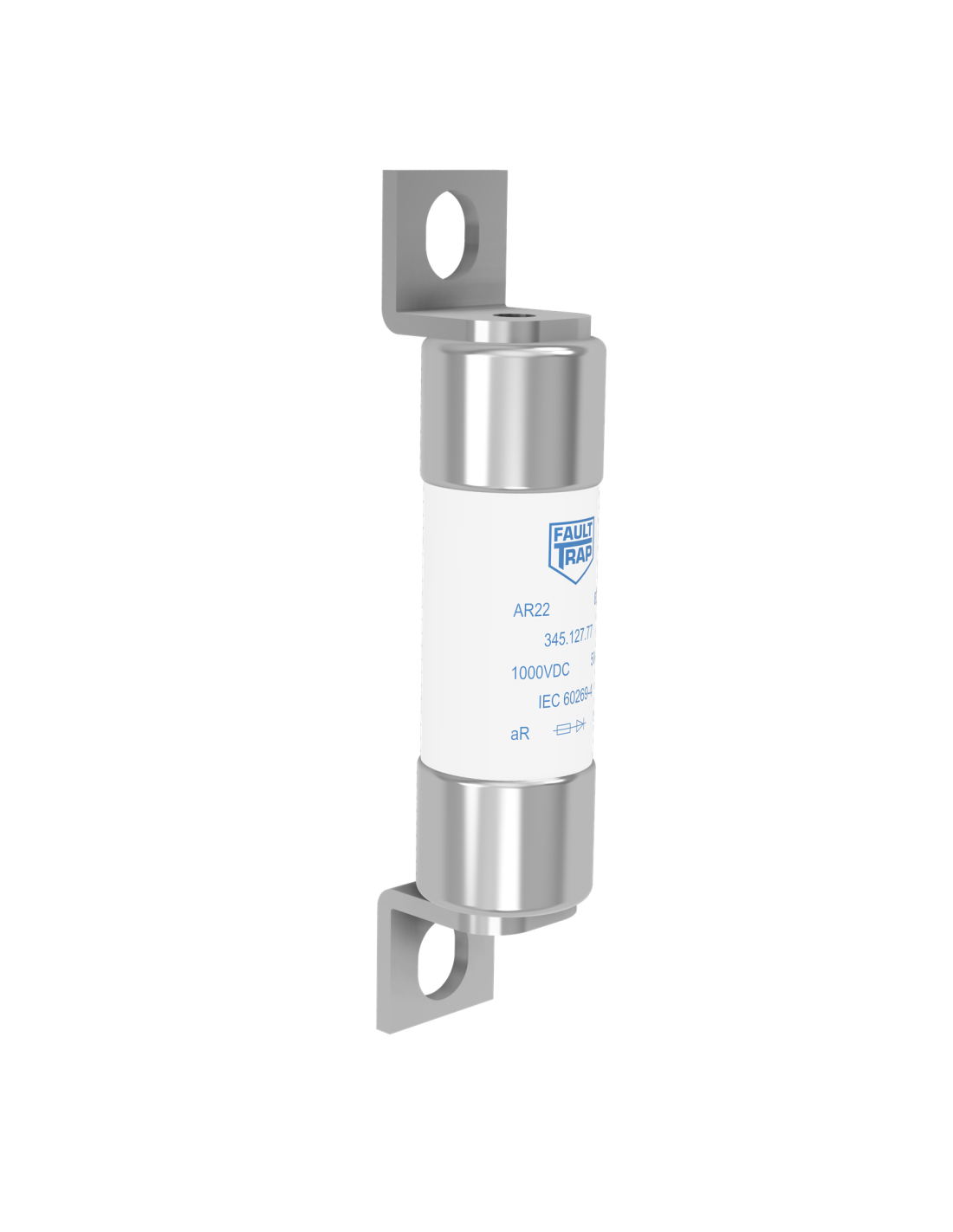

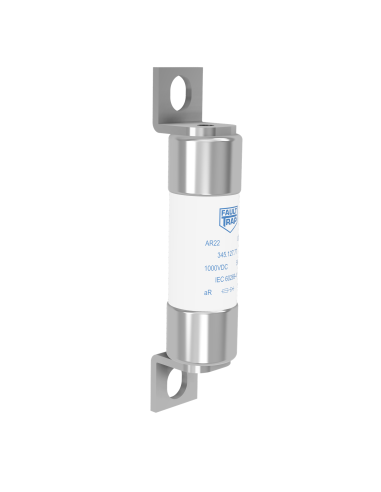

Fuse 1000VDC aR 100A 22x65mm surface mount with fixing distance 87mm
520.370.75
| Series name | AR22 | Power loss (W) | 17,7 |
| Rated current In (A) | 100 | Class | aR |
| Fuse Dimension (mm) | 22x65 | Rated Voltage Un DC (V) | 1000 |
| Rated breaking capacity I1 DC (kA) | 50 | Fixing connection centres (mm) | 87 |
| Time costant L/R (ms) | 1-3 | Fuse Connection/Terminal type | Screw fixing |
| Melting I²t value (A²s) | 6650 | Total clearing I²t @Un DC (A²s) | 34700 |
| Applicable standards | IEC |
