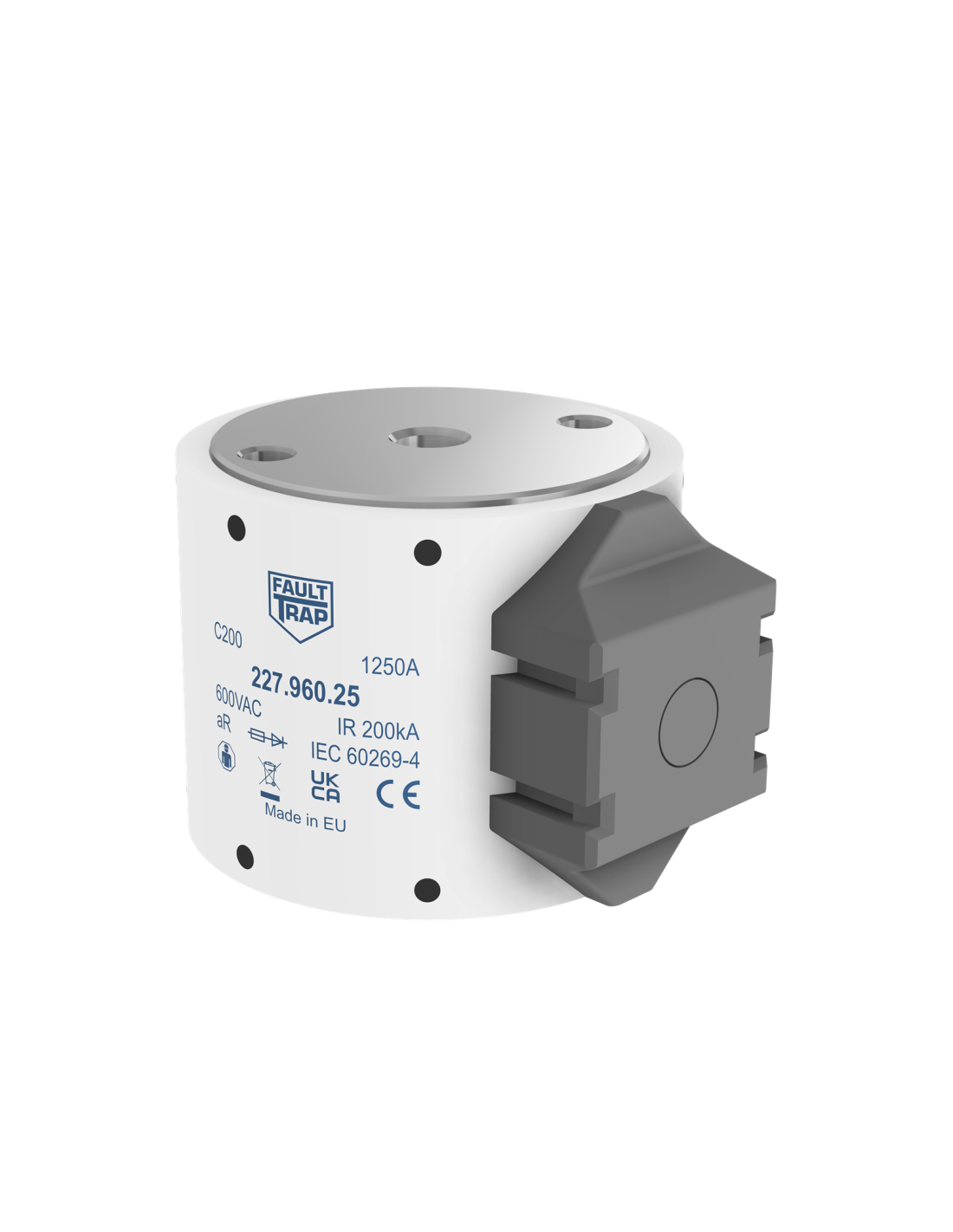

Fuse 600VAC aR 1250A size 2 61x50,5mm M10 flush end terminals, with microswitch adapter
227.960.25
| Series name | C200 | Power loss (W) | 142 |
| Rated current In (A) | 1250 | Class | aR |
| Rated Voltage Un AC (V) | 600 | Rated breaking capacity I1 AC (kA) | 200 |
| Fuse Dimension (mm) | 61x50,5 | Fuse size | 2 |
| Fuse Connection/Terminal type | Screw fixing | Melting I²t value (A²s) | 370000 |
| Fixing dimensions | M10 | Total clearing I²t @Un AC (A²s) | 2553000 |
| Applicable standards | IEC |
