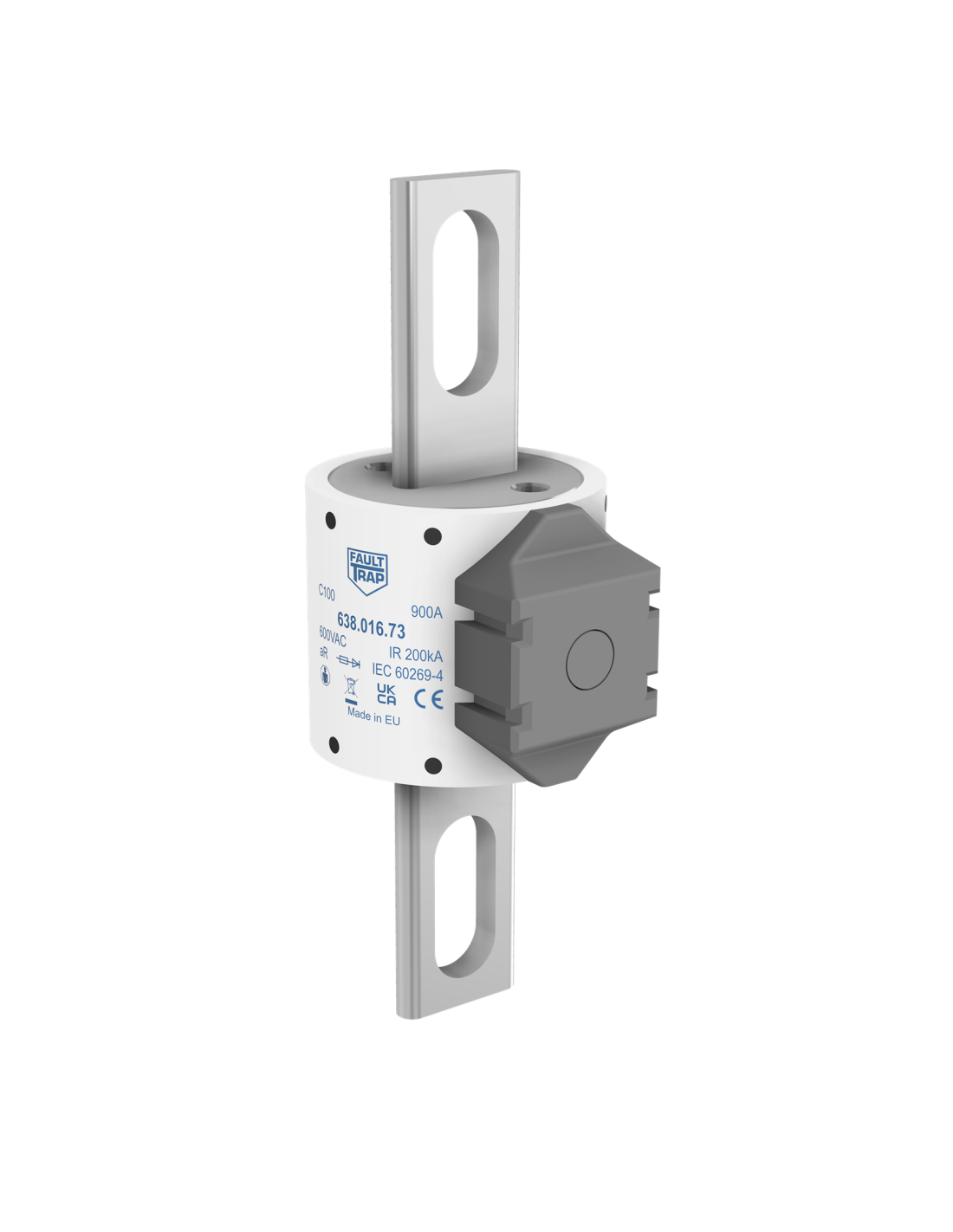

Fuse 600VAC aR 900A size 1 53x153mm axial mount terminals 110mm, with microswitch adapter
638.016.73
| Series name | C100 | Power loss (W) | 104 |
| Rated current In (A) | 900 | Class | aR |
| Rated Voltage Un AC (V) | 600 | Rated breaking capacity I1 AC (kA) | 200 |
| Fuse Dimension (mm) | 53x153 | Fuse size | 1 |
| Fixing connection centres (mm) | 110 | Fuse Connection/Terminal type | Screw fixing |
| Melting I²t value (A²s) | 169600 | Total clearing I²t @Un AC (A²s) | 932800 |
