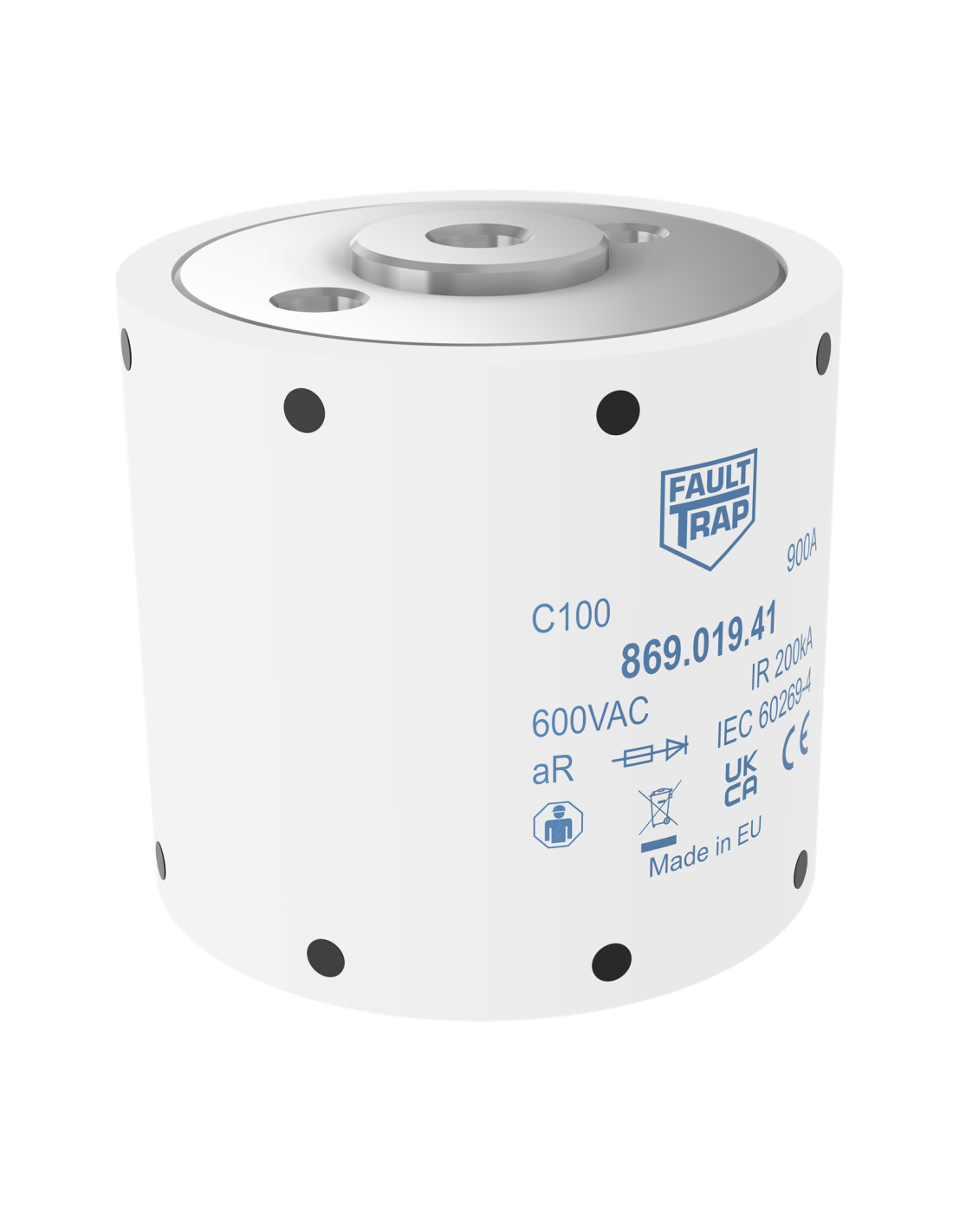

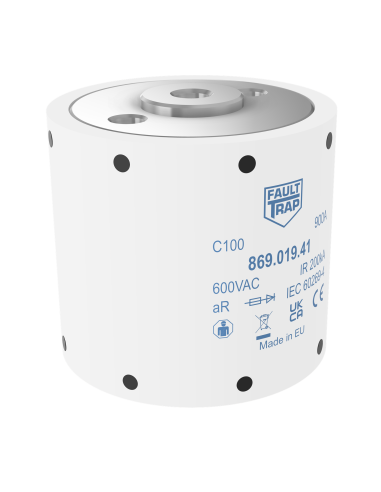

Fuse 600VAC aR 900A size 1 53x52,4mm M8 flush end terminals
869.019.41
| Series name | C100 | Power loss (W) | 104 |
| Rated current In (A) | 900 | Class | aR |
| Rated Voltage Un AC (V) | 600 | Rated breaking capacity I1 AC (kA) | 200 |
| Fuse Dimension (mm) | 53x52,4 | Fuse size | 1 |
| Fuse Connection/Terminal type | Screw fixing | Melting I²t value (A²s) | 169600 |
| Fixing dimensions | M8 | Total clearing I²t @Un AC (A²s) | 932800 |
| Applicable standards | IEC |
