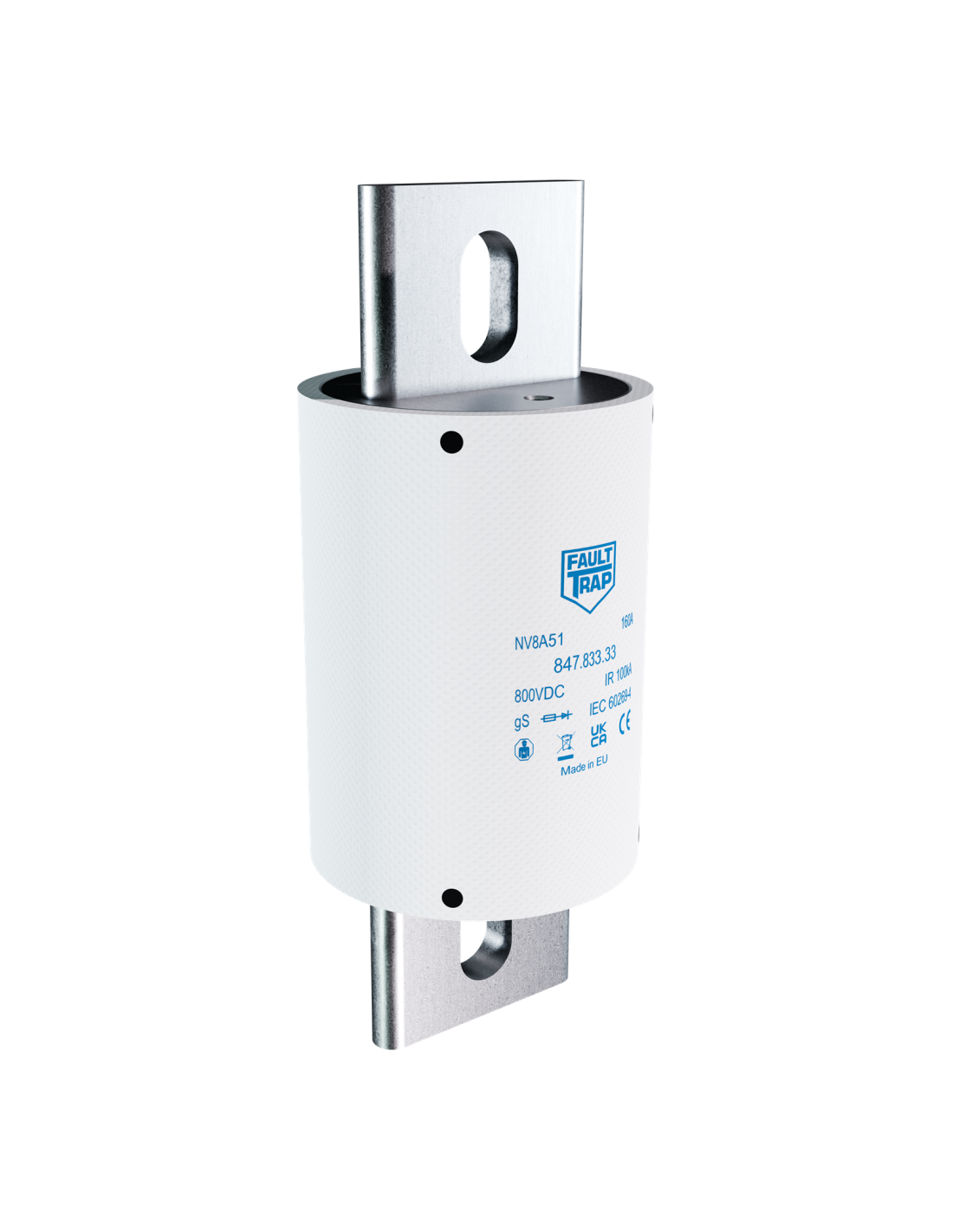

Fuse 800V DC gS 125A 51x129mm axial terminals, fixing centres 97mm
600.222.15
| Series name | NV8A51 | Power loss (W) | 18,4 |
| Rated current In (A) | 125 | Class | gS |
| Fuse Dimension (mm) | 51x129 | Rated Voltage Un DC (V) | 800 |
| Rated breaking capacity I1 DC (kA) | 100 | Fixing connection centres (mm) | 97 |
| Time costant L/R (ms) | 8 | Fuse Connection/Terminal type | Screw fixing |
| Melting I²t value (A²s) | 3900 | Total clearing I²t @Un DC (A²s) | 16600 |
| Applicable standards | IEC |
