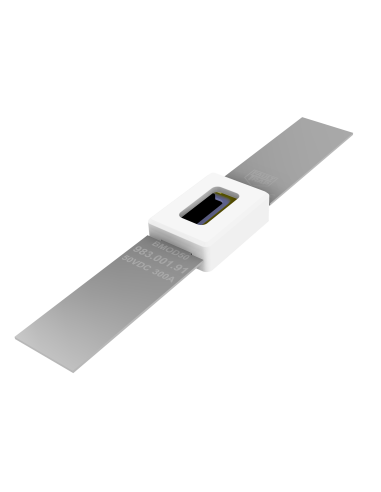

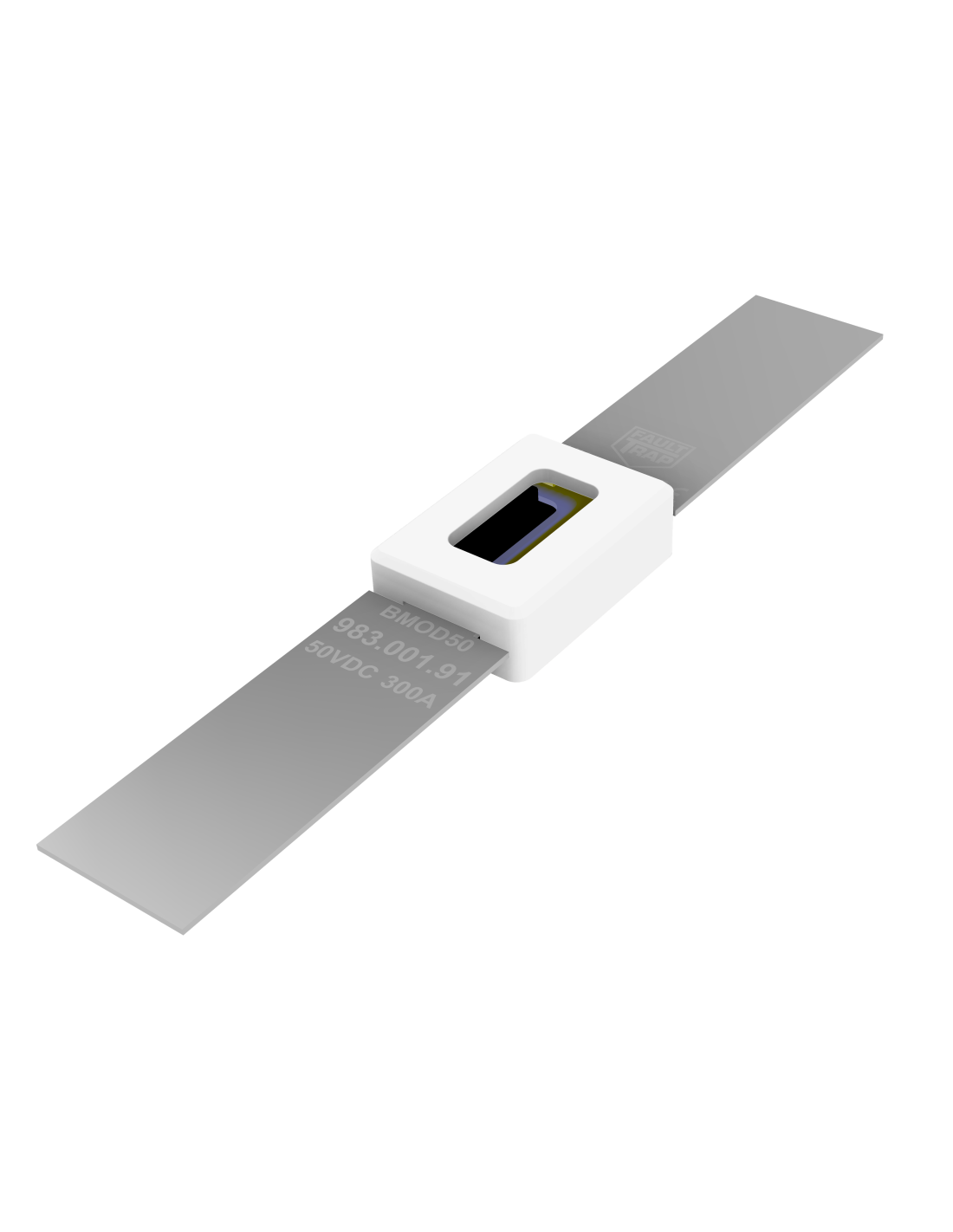

Fuse 50VDC 160A 31,8x22mm Solderable terminals
131.335.28
| Series name | BMOD50 | Power loss (W) | 9,2 |
| Rated current In (A) | 160 | Class | Partial range |
| Fuse Dimension (mm) | 31,8x22 | Rated Voltage Un DC (V) | 50 |
| Rated breaking capacity I1 DC (kA) | 960 | Time costant L/R (ms) | 3 |
| Melting I²t value (A²s) | 225000 | Applicable standards | Company standard |
