Battery Fuses

Showing 1-12 of 260 item(s)

Fuse 1000VDC aBat/aR 200A 38x129mm tin plated axial...

Reference: 116.278.54

Series name: B025

Power loss (W): 30

Rated current In (A): 200

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 10400

Total clearing I²t @Un DC (A²s): 23000

Minimum breaking current (A): 1600

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

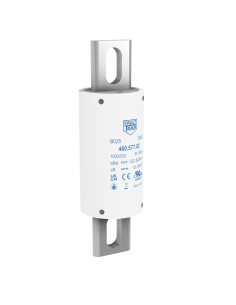

Fuse 1000VDC aBat/aR 80A 38x129mm silver plated axial...

Reference: 118.783.40

Series name: B025

Power loss (W): 12,5

Rated current In (A): 80

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1300

Total clearing I²t @Un DC (A²s): 2900

Minimum breaking current (A): 640

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 500VDC aBat 350A 38x109mm fixing centres 80mm

Reference: 121.209.35

Series name: T500

Power loss (W): 40

Rated current In (A): 350

Class: aBat

Fuse Dimension (mm): 38x109

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 80,35

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 33600

Total clearing I²t @Un DC (A²s): 50000

Minimum breaking current (A): 3500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 63A 38x129mm tin plated axial...

Reference: 121.227.80

Series name: B025

Power loss (W): 10

Rated current In (A): 63

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 740

Total clearing I²t @Un DC (A²s): 1700

Minimum breaking current (A): 504

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

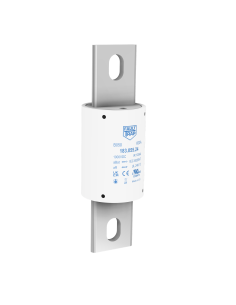

Fuse 1000VDC aBat/aR 300A 50x141mm tin plated axial...

Reference: 122.473.58

Series name: B050

Power loss (W): 42

Rated current In (A): 300

Class: aBat, aR

Fuse Dimension (mm): 50x141

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 22300

Total clearing I²t @Un DC (A²s): 58000

Minimum breaking current (A): 3000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1400A 103x144mm 2x M12 flush end...

Reference: 122.820.87

Series name: B500

Power loss (W): 325

Rated current In (A): 1400

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 977000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 5390000

Minimum breaking current (A): 16000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VDC aBat 300A 38x109mm fixing centres 80mm

Reference: 124.111.98

Series name: T500

Power loss (W): 31

Rated current In (A): 300

Class: aBat

Fuse Dimension (mm): 38x109

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 80,35

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 23300

Total clearing I²t @Un DC (A²s): 34500

Minimum breaking current (A): 3000

Applicable standards: IEC

Available

3D Datasheet

Compare

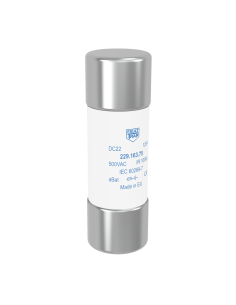

Fuse 1000VDC aBat 50A 22x65mm

Reference: 128.721.89

Series name: DC22

Power loss (W): 11,8

Rated current In (A): 50

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 380

Total clearing I²t @Un DC (A²s): 1710

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 900A 103x144mm 2x M12 flush end...

Reference: 129.490.94

Series name: B500

Power loss (W): 250

Rated current In (A): 900

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 344000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1900000

Minimum breaking current (A): 10000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 900A 103x144mm 4x M10 flush end...

Reference: 130.246.84

Series name: B500

Power loss (W): 250

Rated current In (A): 900

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 344000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 1900000

Minimum breaking current (A): 10000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 630A 50x215mm axial terminals, fixing...

Reference: 135.742.09

Series name: BPF1

Power loss (W): 105

Rated current In (A): 630

Class: aBat

Fuse Dimension (mm): 50x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 168,65

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 242250

Total clearing I²t @Un DC (A²s): 847900

Minimum breaking current (A): 6300

Applicable standards: IEC

Available

3D Datasheet

Compare

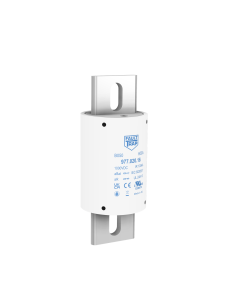

Fuse 1000VDC aBat/aR 300A 50x129mm silver plated axial...

Reference: 149.115.43

Series name: B050

Power loss (W): 42

Rated current In (A): 300

Class: aBat, aR

Fuse Dimension (mm): 50x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 22300

Total clearing I²t @Un DC (A²s): 58000

Minimum breaking current (A): 3000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

260 items
