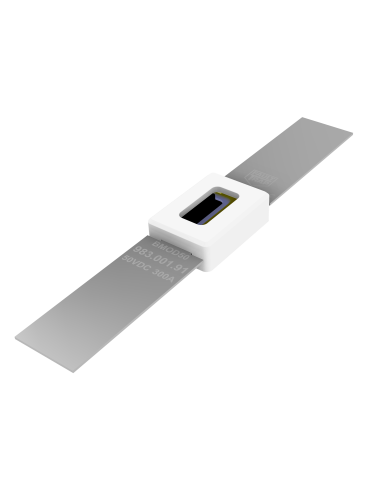

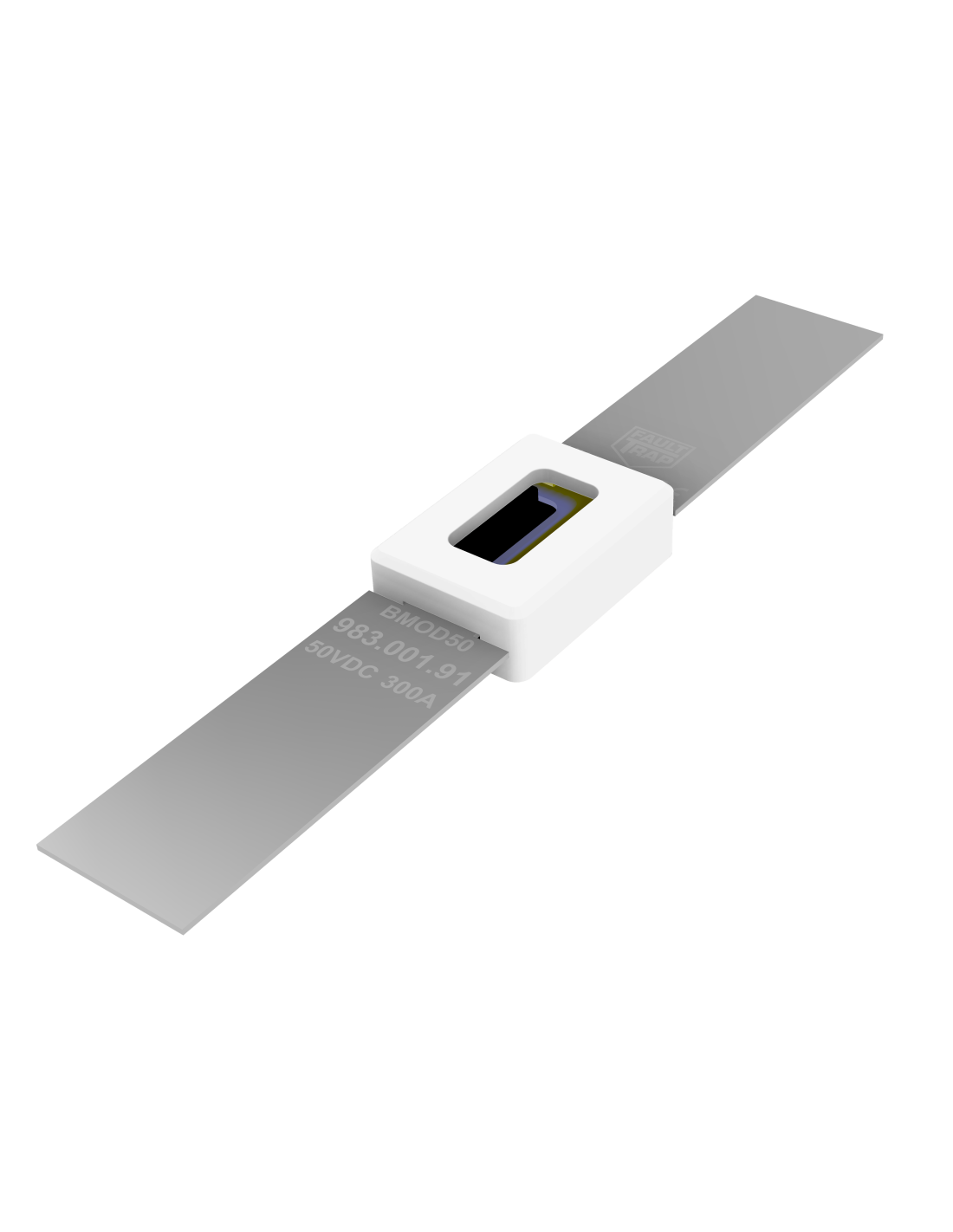

Fuse 50VDC 355A 31,8x22mm Solderable terminals
104.422.90
| Series name | BMOD50 | Power loss (W) | 26 |
| Rated current In (A) | 355 | Class | Partial range |
| Fuse Dimension (mm) | 31,8x22 | Rated Voltage Un DC (V) | 50 |
| Rated breaking capacity I1 DC (kA) | 2130 | Time costant L/R (ms) | 3 |
| Melting I²t value (A²s) | 1296000 | Applicable standards | Company standard |
