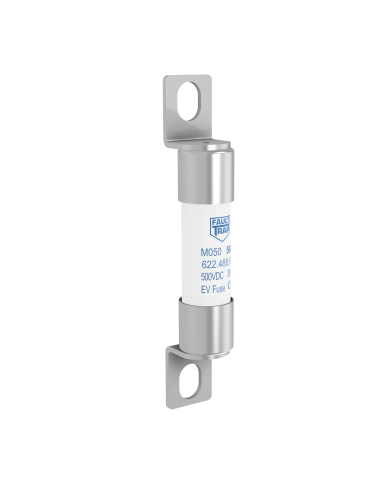

Fuse 500VDC EV-full range 40A 10x38mm surface mount, fixing centres 53mm
904.360.78
| Series name | M050 | Power loss (W) | 5,6 |
| Rated current In (A) | 40 | Fuse Dimension (mm) | 10x38 |
| Rated Voltage Un DC (V) | 500 | Rated breaking capacity I1 DC (kA) | 30 |
| Fixing connection centres (mm) | 53,5 | Fuse Connection/Terminal type | Screw fixing |
| Minimum breaking current (A) | 80 |
