Fuses

Showing 1-111 of 111 item(s)

Fuse 2000VDC gPV 60A 22x85mm in-line aluminum terminals 6AWG

Reference: 100.942.90

Series name: 20PV22

Power loss (W): 13,9

Rated current In (A): 60

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1450

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 60A 22x85mm in-line copper terminals 6/8...

Reference: 110.602.39

Series name: 20PV22

Power loss (W): 13,9

Rated current In (A): 60

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1450

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 60A 22x85mm

Reference: 140.737.12

Series name: 20PV22

Power loss (W): 13,9

Rated current In (A): 60

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1450

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 1A 10x85mm

Reference: 148.405.23

Series name: 20PV10

Power loss (W): 0,8

Rated current In (A): 1

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 0,7

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 80A 27x85mm in-line terminal for copper...

Reference: 166.238.86

Series name: 20PV27

Power loss (W): 20

Rated current In (A): 80

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 2400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 12A 14x85mm in-line terminals

Reference: 170.071.20

Series name: 20PV14

Power loss (W): 4

Rated current In (A): 12

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 23

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 4A 10x85mm

Reference: 171.064.59

Series name: 20PV10

Power loss (W): 1,8

Rated current In (A): 4

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 19

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 50A 22x85mm in-line copper terminals 6/8...

Reference: 180.780.89

Series name: 20PV22

Power loss (W): 12,7

Rated current In (A): 50

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 815

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 5A 10x85mm in-line terminals

Reference: 199.448.53

Series name: 20PV10

Power loss (W): 2

Rated current In (A): 5

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 42

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 45A 22x85mm in-line copper terminals 6/8...

Reference: 212.218.36

Series name: 20PV22

Power loss (W): 11,9

Rated current In (A): 45

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 65A 22x85mm in-line copper terminals 6/8...

Reference: 213.415.06

Series name: 20PV22

Power loss (W): 15,4

Rated current In (A): 65

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1660

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 40A 22x85mm

Reference: 226.616.51

Series name: 20PV22

Power loss (W): 11,3

Rated current In (A): 40

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 415

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 55A 22x85mm

Reference: 276.236.15

Series name: 20PV22

Power loss (W): 13,5

Rated current In (A): 55

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1065

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 45A 22x85mm

Reference: 279.406.19

Series name: 20PV22

Power loss (W): 11,9

Rated current In (A): 45

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 35A 22x85mm in-line aluminum terminals 6AWG

Reference: 291.978.89

Series name: 20PV22

Power loss (W): 10,7

Rated current In (A): 35

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 265

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 25A 14x85mm

Reference: 304.185.41

Series name: 20PV14

Power loss (W): 7,6

Rated current In (A): 25

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 118

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 80A 27x85mm

Reference: 308.291.60

Series name: 20PV27

Power loss (W): 20

Rated current In (A): 80

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 3A 10x85mm

Reference: 332.186.86

Series name: 20PV10

Power loss (W): 1,8

Rated current In (A): 3

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 5

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 15A 14x85mm

Reference: 355.645.52

Series name: 20PV14

Power loss (W): 4,8

Rated current In (A): 15

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 38

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 40A 22x85mm in-line aluminum terminals 6AWG

Reference: 380.581.64

Series name: 20PV22

Power loss (W): 11,3

Rated current In (A): 40

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 415

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 450A 76x269mm axial terminals fixing...

Reference: 380.994.11

Series name: 20PV3

Power loss (W): 86,5

Rated current In (A): 450

Class: gPV

Fuse Dimension (mm): 76x269

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 182900

Minimum breaking current (A): 900

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 75A 27x85mm in-line terminal for copper...

Reference: 438.193.02

Series name: 20PV27

Power loss (W): 19,7

Rated current In (A): 75

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1900

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 50A 22x85mm in-line aluminum terminals 6AWG

Reference: 442.354.09

Series name: 20PV22

Power loss (W): 12,7

Rated current In (A): 50

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 815

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 30A 14x85mm in-line terminals

Reference: 456.321.91

Series name: 20PV14

Power loss (W): 8,8

Rated current In (A): 30

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 185

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 20A 14x85mm

Reference: 465.503.38

Series name: 20PV14

Power loss (W): 6,4

Rated current In (A): 20

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 67

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 65A 22x85mm in-line aluminum terminals 6AWG

Reference: 518.974.34

Series name: 20PV22

Power loss (W): 15,4

Rated current In (A): 65

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1660

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 8A 10x85mm in-line terminals

Reference: 538.671.25

Series name: 20PV10

Power loss (W): 2,4

Rated current In (A): 8

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 193

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 6A 10x85mm

Reference: 550.375.82

Series name: 20PV10

Power loss (W): 2,1

Rated current In (A): 6

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 79

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 500A 76x269mm axial terminals fixing...

Reference: 577.282.62

Series name: 20PV3

Power loss (W): 88

Rated current In (A): 500

Class: gPV

Fuse Dimension (mm): 76x269

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 294920

Minimum breaking current (A): 1000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 200A 76x269mm axial terminals fixing...

Reference: 588.833.39

Series name: 20PV3

Power loss (W): 57

Rated current In (A): 200

Class: gPV

Fuse Dimension (mm): 76x269

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 14950

Minimum breaking current (A): 400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 20A 14x85mm in-line terminals

Reference: 592.796.46

Series name: 20PV14

Power loss (W): 6,4

Rated current In (A): 20

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 67

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 30A 14x85mm

Reference: 597.293.07

Series name: 20PV14

Power loss (W): 8,8

Rated current In (A): 30

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 185

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 75A 27x85mm

Reference: 618.698.55

Series name: 20PV27

Power loss (W): 19,7

Rated current In (A): 75

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1900

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 4A 10x85mm in-line terminals

Reference: 621.631.49

Series name: 20PV10

Power loss (W): 1,8

Rated current In (A): 4

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 19

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 6A 10x85mm in-line terminals

Reference: 645.030.33

Series name: 20PV10

Power loss (W): 2,1

Rated current In (A): 6

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 79

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 32A 22x85mm

Reference: 684.844.13

Series name: 20PV22

Power loss (W): 9,7

Rated current In (A): 32

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 225

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 350A 76x269mm axial terminals fixing...

Reference: 693.162.36

Series name: 20PV3

Power loss (W): 81

Rated current In (A): 350

Class: gPV

Fuse Dimension (mm): 76x269

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 73750

Minimum breaking current (A): 700

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 2A 10x85mm

Reference: 706.589.17

Series name: 20PV10

Power loss (W): 1,2

Rated current In (A): 2

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

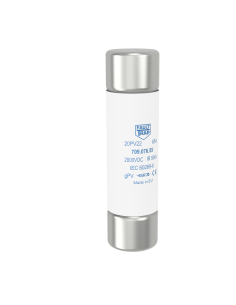

Fuse 2000VDC gPV 65A 22x85mm

Reference: 709.076.55

Series name: 20PV22

Power loss (W): 15,4

Rated current In (A): 65

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1660

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 3A 10x85mm in-line terminals

Reference: 714.152.74

Series name: 20PV10

Power loss (W): 1,8

Rated current In (A): 3

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 5

Applicable standards: IEC

Available

3D Datasheet

Compare

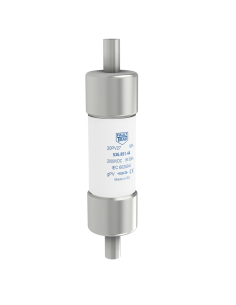

Fuse 2000VDC gPV 70A 27x85mm in-line terminal for copper...

Reference: 720.065.13

Series name: 20PV27

Power loss (W): 20,2

Rated current In (A): 70

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1400

Applicable standards: IEC

Available

3D Datasheet

Compare

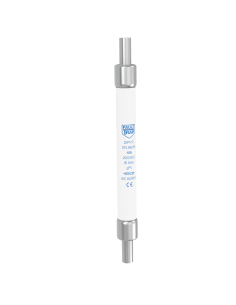

Fuse 2000VDC gPV 2A 10x85mm in-line terminals

Reference: 724.456.12

Series name: 20PV10

Power loss (W): 1,2

Rated current In (A): 2

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

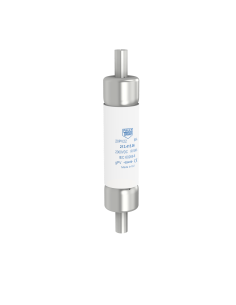

Fuse 2000VDC gPV 40A 22x85mm in-line copper terminals 6/8...

Reference: 730.712.59

Series name: 20PV22

Power loss (W): 11,3

Rated current In (A): 40

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 415

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 35A 22x85mm in-line copper terminals 6/8...

Reference: 732.907.12

Series name: 20PV22

Power loss (W): 10,7

Rated current In (A): 35

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 265

Applicable standards: IEC

Available

3D Datasheet

Compare

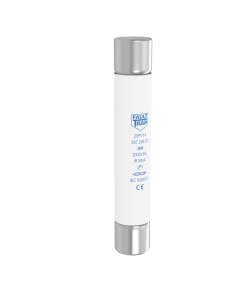

Fuse 2000VDC gPV 12A 14x85mm

Reference: 743.195.59

Series name: 20PV14

Power loss (W): 4

Rated current In (A): 12

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 23

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 1A 10x85mm in-line terminals

Reference: 962.679.68

Series name: 20PV10

Power loss (W): 0,8

Rated current In (A): 1

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 0,7

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 5A 10x85mm

Reference: 987.948.87

Series name: 20PV10

Power loss (W): 2

Rated current In (A): 5

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 42

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 55A 22x85mm in-line copper terminals 6/8...

Reference: 992.157.21

Series name: 20PV22

Power loss (W): 13,5

Rated current In (A): 55

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1065

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 10A 10x85mm

Reference: 765.329.01

Series name: 20PV10

Power loss (W): 2,6

Rated current In (A): 10

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 50A 22x85mm

Reference: 774.105.69

Series name: 20PV22

Power loss (W): 12,7

Rated current In (A): 50

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 815

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 45A 22x85mm in-line aluminum terminals 6AWG

Reference: 792.355.17

Series name: 20PV22

Power loss (W): 11,9

Rated current In (A): 45

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 600

Applicable standards: IEC

Available

3D Datasheet

Compare

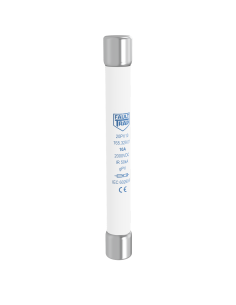

Fuse 2000VDC gPV 8A 10x85mm

Reference: 797.476.09

Series name: 20PV10

Power loss (W): 2,4

Rated current In (A): 8

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 193

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 35A 22x85mm

Reference: 852.242.24

Series name: 20PV22

Power loss (W): 10,7

Rated current In (A): 35

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 265

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 70A 27x85mm

Reference: 861.527.78

Series name: 20PV27

Power loss (W): 20,2

Rated current In (A): 70

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1400

Applicable standards: IEC

Available

3D Datasheet

Compare

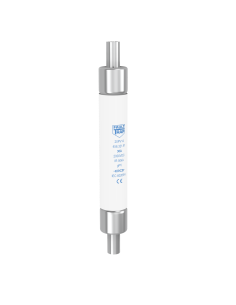

Fuse 2000VDC gPV 15A 14x85mm in-line terminals

Reference: 864.160.53

Series name: 20PV14

Power loss (W): 4,8

Rated current In (A): 15

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 38

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 315A 76x269mm axial terminals fixing...

Reference: 864.831.51

Series name: 20PV3

Power loss (W): 79

Rated current In (A): 315

Class: gPV

Fuse Dimension (mm): 76x269

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 50200

Minimum breaking current (A): 630

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 32A 22x85mm in-line copper terminals 6/8...

Reference: 869.193.43

Series name: 20PV22

Power loss (W): 9,7

Rated current In (A): 32

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 225

Applicable standards: IEC

Available

3D Datasheet

Compare

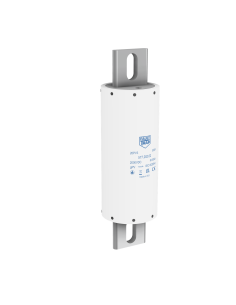

Fuse 2000VDC gPV 400A 76x269mm axial terminals fixing...

Reference: 877.289.08

Series name: 20PV3

Power loss (W): 84,5

Rated current In (A): 400

Class: gPV

Fuse Dimension (mm): 76x269

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 119860

Minimum breaking current (A): 800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 250A 76x269mm axial terminals fixing...

Reference: 921.536.68

Series name: 20PV3

Power loss (W): 67,5

Rated current In (A): 250

Class: gPV

Fuse Dimension (mm): 76x269

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 26550

Minimum breaking current (A): 500

Applicable standards: IEC

Available

3D Datasheet

Compare

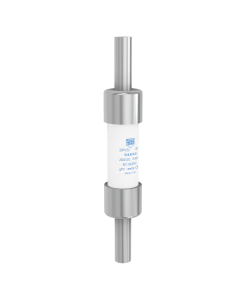

Fuse 2000VDC gPV 55A 22x85mm in-line aluminum terminals 6AWG

Reference: 943.549.03

Series name: 20PV22

Power loss (W): 13,5

Rated current In (A): 55

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1065

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 10A 10x85mm in-line terminals

Reference: 975.988.85

Series name: 20PV10

Power loss (W): 2,6

Rated current In (A): 10

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 25A 14x85mm in-line terminals

Reference: 979.300.79

Series name: 20PV14

Power loss (W): 7,6

Rated current In (A): 25

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 118

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 12A 22x85mm

Reference: 833.361.58

Series name: 20PV22

Power loss (W): 4

Rated current In (A): 12

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 23

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 15A 22x85mm

Reference: 717.383.24

Series name: 20PV22

Power loss (W): 4,8

Rated current In (A): 15

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 38

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 20A 22x85mm

Reference: 463.061.50

Series name: 20PV22

Power loss (W): 6,4

Rated current In (A): 20

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 67

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 25A 22x85mm

Reference: 930.920.23

Series name: 20PV22

Power loss (W): 7,6

Rated current In (A): 25

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 118

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 30A 22x85mm

Reference: 722.450.52

Series name: 20PV22

Power loss (W): 8,8

Rated current In (A): 30

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 185

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 12A 22x85 in-line copper 10/12 AWG

Reference: 773.810.27

Series name: 20PV22

Power loss (W): 4

Rated current In (A): 12

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 23

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 15A 22x85 in-line copper 10/12 AWG

Reference: 226.310.63

Series name: 20PV22

Power loss (W): 4,8

Rated current In (A): 15

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 38

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 20A 22x85 in-line copper 10/12 AWG

Reference: 307.830.85

Series name: 20PV22

Power loss (W): 6,4

Rated current In (A): 20

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 67

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 25A 22x85 in-line copper 10/12 AWG

Reference: 361.013.42

Series name: 20PV22

Power loss (W): 7,6

Rated current In (A): 25

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 118

Applicable standards: IEC

Available

3D Datasheet

Compare

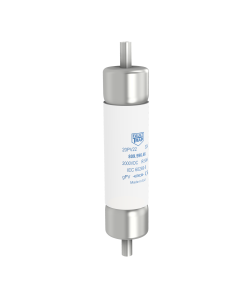

Fuse 2000VDC gPV 30A 22x85 in-line copper 10/12 AWG

Reference: 918.529.60

Series name: 20PV22

Power loss (W): 8,8

Rated current In (A): 30

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 185

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 32A 22x85 in-line copper 10/12 AWG

Reference: 809.596.46

Series name: 20PV22

Power loss (W): 9,7

Rated current In (A): 32

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 225

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 12A 22x85 in-line copper terminals 6/8 AWG

Reference: 637.379.22

Series name: 20PV22

Power loss (W): 4

Rated current In (A): 12

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 23

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 15A 22x85 in-line copper terminals 6/8 AWG

Reference: 689.656.50

Series name: 20PV22

Power loss (W): 4,8

Rated current In (A): 15

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 38

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 20A 22x85 in-line copper terminals 6/8 AWG

Reference: 405.973.79

Series name: 20PV22

Power loss (W): 6,4

Rated current In (A): 20

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 67

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 25A 22x85 in-line copper terminals 6/8 AWG

Reference: 705.576.91

Series name: 20PV22

Power loss (W): 7,6

Rated current In (A): 25

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 118

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 30A 22x85 in-line copper terminals 6/8 AWG

Reference: 665.362.82

Series name: 20PV22

Power loss (W): 8,8

Rated current In (A): 30

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 185

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000V DC 35A 22x85mm gPV in-line alluminum 4AWG

Reference: 433.371.43

Series name: 20PV22

Power loss (W): 10,7

Rated current In (A): 35

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 265

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000V DC 40A 22x85mm gPV in-line alluminum 4AWG

Reference: 715.106.10

Series name: 20PV22

Power loss (W): 11,3

Rated current In (A): 40

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 415

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000V DC 45A 22x85mm gPV in-line alluminum 4AWG

Reference: 894.116.24

Series name: 20PV22

Power loss (W): 11,9

Rated current In (A): 45

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 600

Applicable standards: IEC

Available

3D Datasheet

Compare

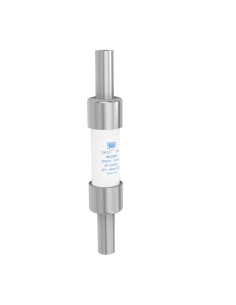

Fuse 2000V DC 50A 22x85mm gPV in-line alluminum 4AWG

Reference: 935.255.05

Series name: 20PV22

Power loss (W): 12,7

Rated current In (A): 50

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 815

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000V DC 55A 22x85mm gPV in-line alluminum 4AWG

Reference: 929.282.47

Series name: 20PV22

Power loss (W): 13,5

Rated current In (A): 55

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 1065

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000V DC 60A 22x85mm gPV in-line alluminum 4AWG

Reference: 174.051.12

Series name: 20PV22

Power loss (W): 13,9

Rated current In (A): 60

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 1450

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000V DC 65A 22x85mm gPV in-line alluminum 4AWG

Reference: 542.255.27

Series name: 20PV22

Power loss (W): 15,4

Rated current In (A): 65

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 1660

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 90A 27x85mm

Reference: 547.387.46

Series name: 20PV27

Power loss (W): 20,7

Rated current In (A): 90

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 3750

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 100A 27x85mm

Reference: 241.208.32

Series name: 20PV27

Power loss (W): 21,1

Rated current In (A): 100

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 5600

Applicable standards: IEC

Available

3D Datasheet

Compare

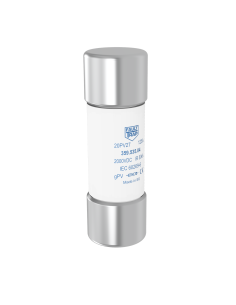

Fuse 2000VDC gPV 110A 27x85mm

Reference: 567.692.54

Series name: 20PV27

Power loss (W): 21,8

Rated current In (A): 110

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 7790

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 125A 27x85mm

Reference: 359.535.04

Series name: 20PV27

Power loss (W): 23,4

Rated current In (A): 125

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 11220

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 90A 27x85mm in-line terminal for copper...

Reference: 536.891.44

Series name: 20PV27

Power loss (W): 20,7

Rated current In (A): 90

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 3750

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 70A 27x85mm In-line terminal copper 4 AWG

Reference: 880.064.47

Series name: 20PV27

Power loss (W): 20,2

Rated current In (A): 70

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 75A 27x85mm In-line terminal copper 4 AWG

Reference: 798.209.62

Series name: 20PV27

Power loss (W): 19,7

Rated current In (A): 75

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1900

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 80A 27x85mm In-line terminal copper 4 AWG

Reference: 199.859.39

Series name: 20PV27

Power loss (W): 20

Rated current In (A): 80

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 2400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 90A 27x85mm In-line terminal copper 4 AWG

Reference: 546.101.83

Series name: 20PV27

Power loss (W): 20,7

Rated current In (A): 90

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 3750

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 100A 27x85mm In-line terminal copper 4 AWG

Reference: 713.261.87

Series name: 20PV27

Power loss (W): 21,1

Rated current In (A): 100

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 5600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 110A 27x85mm In-line terminal copper 4 AWG

Reference: 578.312.58

Series name: 20PV27

Power loss (W): 21,8

Rated current In (A): 110

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 7790

Applicable standards: IEC

Available

3D Datasheet

Compare

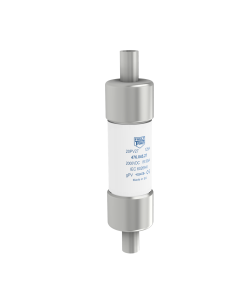

Fuse 2000VDC gPV 125A 27x85mm In-line terminal copper 4 AWG

Reference: 476.045.27

Series name: 20PV27

Power loss (W): 23,4

Rated current In (A): 125

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 11220

Applicable standards: IEC

Available

3D Datasheet

Compare

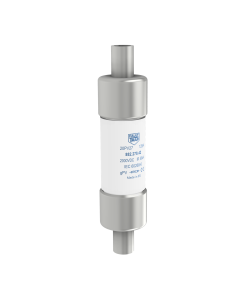

Fuse 2000VDC gPV 125A 27x85mm In-line terminal copper 2 AWG

Reference: 882.278.42

Series name: 20PV27

Power loss (W): 23,4

Rated current In (A): 125

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 11220

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 110A 27x85mm In-line terminal copper 2 AWG

Reference: 799.970.92

Series name: 20PV27

Power loss (W): 21,8

Rated current In (A): 110

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 7790

Applicable standards: IEC

Available

3D Datasheet

Compare

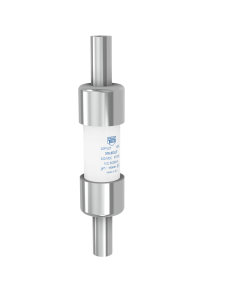

Fuse 2000VDC gPV 100A 27x85mm In-line terminal aluminum 4...

Reference: 976.853.27

Series name: 20PV27

Power loss (W): 21,1

Rated current In (A): 100

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 5600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 90A 27x85mm In-line terminal aluminum 4 AWG

Reference: 366.245.66

Series name: 20PV27

Power loss (W): 20,7

Rated current In (A): 90

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 3750

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 80A 27x85mm In-line terminal aluminum 4 AWG

Reference: 141.009.74

Series name: 20PV27

Power loss (W): 20

Rated current In (A): 80

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 2400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 75A 27x85mm In-line terminal aluminum 4 AWG

Reference: 362.113.29

Series name: 20PV27

Power loss (W): 19,7

Rated current In (A): 75

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 1900

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 70A 27x85mm In-line terminal aluminum 4 AWG

Reference: 607.107.17

Series name: 20PV27

Power loss (W): 20,2

Rated current In (A): 70

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 1400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 70A 27x85mm In-line terminal aluminum 2 AWG

Reference: 198.718.05

Series name: 20PV27

Power loss (W): 20,2

Rated current In (A): 70

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 1400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 75A 27x85mm In-line terminal aluminum 2 AWG

Reference: 393.313.98

Series name: 20PV27

Power loss (W): 19,7

Rated current In (A): 75

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 1900

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 80A 27x85mm In-line terminal aluminum 2 AWG

Reference: 201.435.99

Series name: 20PV27

Power loss (W): 20

Rated current In (A): 80

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 2400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 90A 27x85mm In-line terminal aluminum 2 AWG

Reference: 352.503.31

Series name: 20PV27

Power loss (W): 20,7

Rated current In (A): 90

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 3750

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 100A 27x85mm In-line terminal aluminum 2...

Reference: 502.313.43

Series name: 20PV27

Power loss (W): 21,1

Rated current In (A): 100

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 5600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 110A 27x85mm In-line terminal aluminum 2...

Reference: 439.192.41

Series name: 20PV27

Power loss (W): 21,8

Rated current In (A): 110

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 7790

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 125A 27x85mm In-line terminal aluminum 2...

Reference: 538.657.25

Series name: 20PV27

Power loss (W): 23,4

Rated current In (A): 125

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 11220

Applicable standards: IEC

Available

3D Datasheet

Compare
