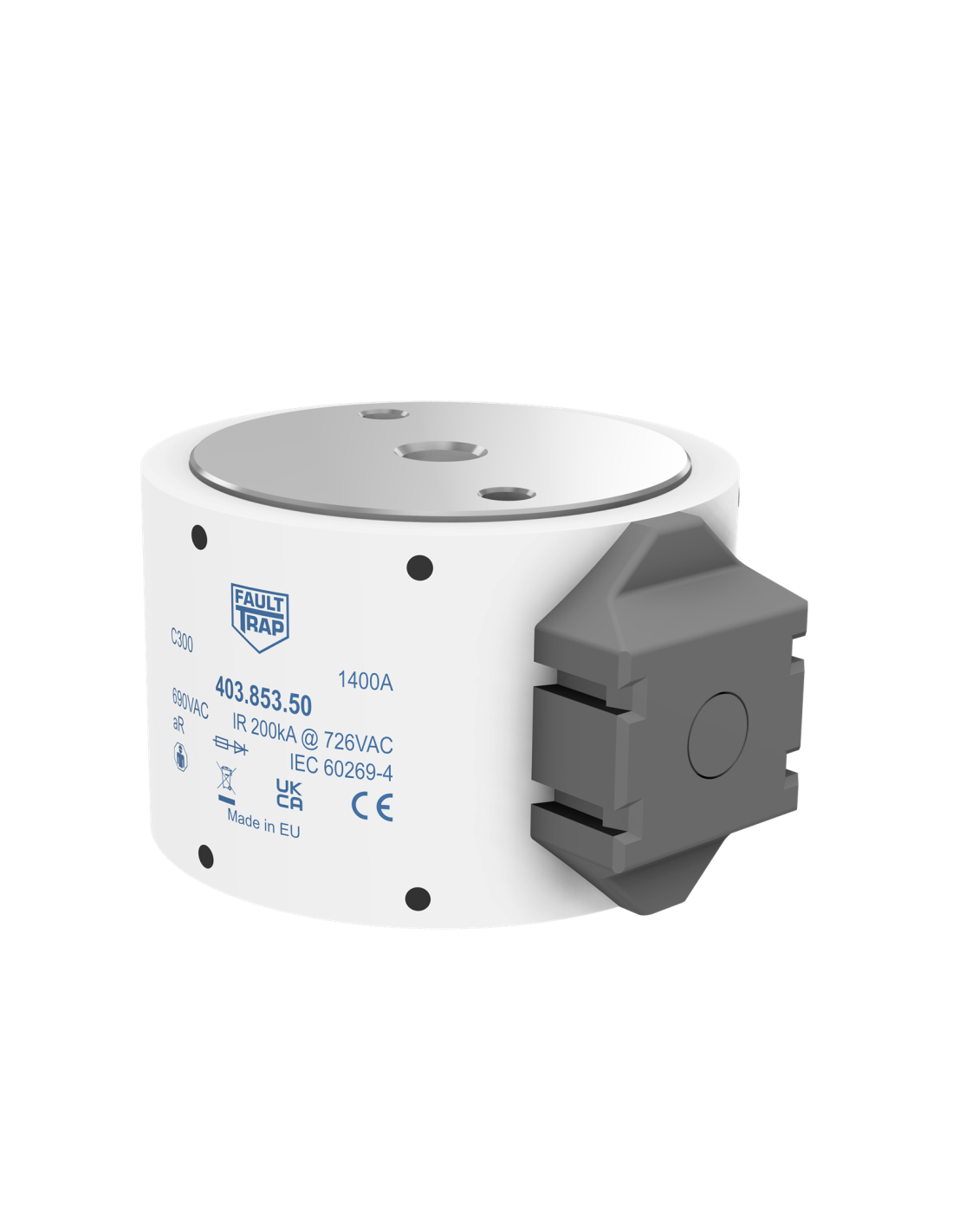

Fuse 690VAC aR 1400A size 3 76x50,5mm M12 flush end terminals, with microswitch adapter
403.853.50
| Series name | C300 | Power loss (W) | 177 |
| Rated current In (A) | 1400 | Class | aR |
| Rated Voltage Un AC (V) | 690 | Fuse Diameter for Accessories (mm) | 76x50,5 |
| Rated breaking capacity I1 AC (kA) | 200 | Fuse size | 3 |
| Fuse Connection/Terminal type | Screw fixing | Melting I²t value (A²s) | 375000 |
| Fixing dimensions | M12 | Total clearing I²t @Un AC (A²s) | 2140000 |
| Applicable standards | IEC |
