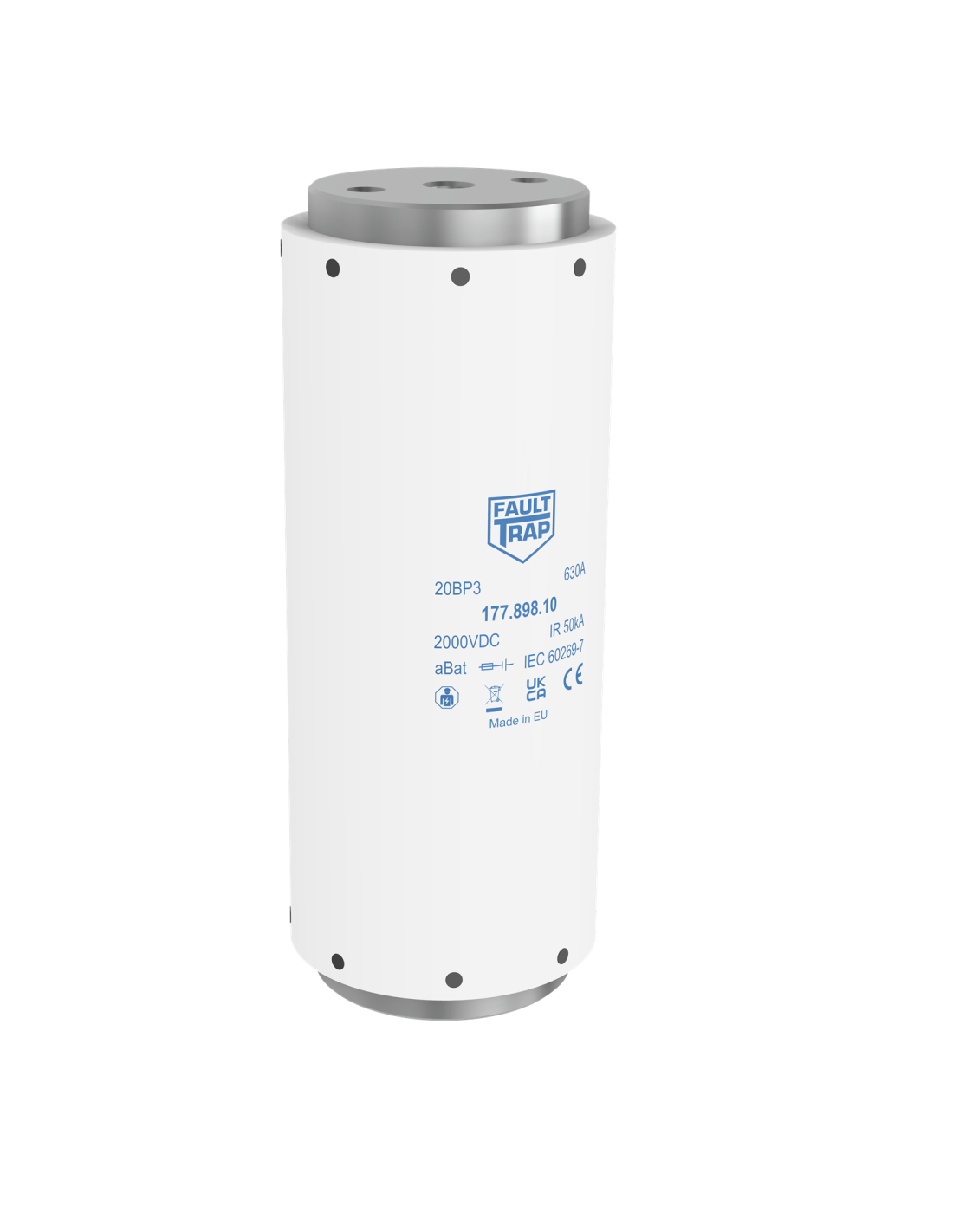

Fuse 2000VDC aBat 630A 76x194mm Flush-End Terminals M12
177.898.10
| Series name | 20BP3 | Power loss (W) | 138 |
| Rated current In (A) | 630 | Class | aBat |
| Fuse Dimension (mm) | 76x194 | Rated Voltage Un DC (V) | 2000 |
| Rated breaking capacity I1 DC (kA) | 50 | Time costant L/R (ms) | 1-3 |
| Fuse Connection/Terminal type | Screw fixing | Melting I²t value (A²s) | 295000 |
| Fixing dimensions | M12 | Minimum breaking current (A) | 6300 |
| Applicable standards | IEC |
