Fuses

Fuse 2000VDC gPV 60A 22x85mm in-line aluminum terminals 6AWG

Reference: 100.942.90

Series name: 20PV22

Power loss (W): 13,9

Rated current In (A): 60

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1450

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 60A 22x85mm in-line copper terminals 6/8...

Reference: 110.602.39

Series name: 20PV22

Power loss (W): 13,9

Rated current In (A): 60

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1450

Applicable standards: IEC

Available

3D Datasheet

Compare

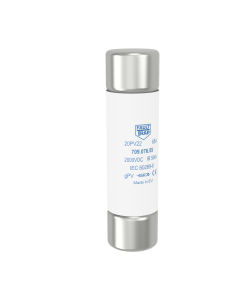

Fuse 2000VDC gPV 60A 22x85mm

Reference: 140.737.12

Series name: 20PV22

Power loss (W): 13,9

Rated current In (A): 60

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1450

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 1A 10x85mm

Reference: 148.405.23

Series name: 20PV10

Power loss (W): 0,8

Rated current In (A): 1

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 0,7

Applicable standards: IEC

Available

3D Datasheet

Compare

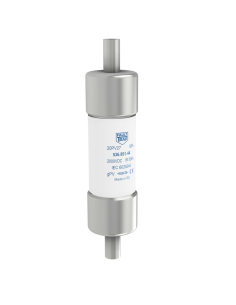

Fuse 2000VDC gPV 80A 27x85mm in-line terminal for copper...

Reference: 166.238.86

Series name: 20PV27

Power loss (W): 20

Rated current In (A): 80

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 2400

Applicable standards: IEC

Available

3D Datasheet

Compare

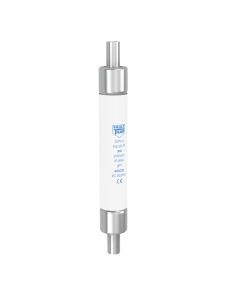

Fuse 2000VDC gPV 12A 14x85mm in-line terminals

Reference: 170.071.20

Series name: 20PV14

Power loss (W): 4

Rated current In (A): 12

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 23

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 4A 10x85mm

Reference: 171.064.59

Series name: 20PV10

Power loss (W): 1,8

Rated current In (A): 4

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 19

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 50A 22x85mm in-line copper terminals 6/8...

Reference: 180.780.89

Series name: 20PV22

Power loss (W): 12,7

Rated current In (A): 50

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 815

Applicable standards: IEC

Available

3D Datasheet

Compare

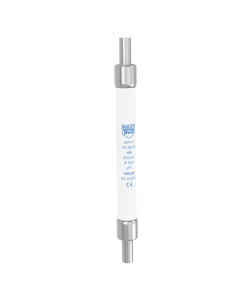

Fuse 2000VDC gPV 5A 10x85mm in-line terminals

Reference: 199.448.53

Series name: 20PV10

Power loss (W): 2

Rated current In (A): 5

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 42

Applicable standards: IEC

Available

3D Datasheet

Compare

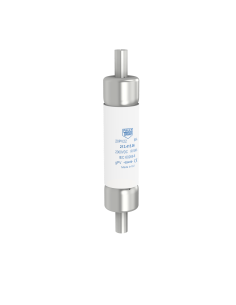

Fuse 2000VDC gPV 45A 22x85mm in-line copper terminals 6/8...

Reference: 212.218.36

Series name: 20PV22

Power loss (W): 11,9

Rated current In (A): 45

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 65A 22x85mm in-line copper terminals 6/8...

Reference: 213.415.06

Series name: 20PV22

Power loss (W): 15,4

Rated current In (A): 65

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1660

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 40A 22x85mm

Reference: 226.616.51

Series name: 20PV22

Power loss (W): 11,3

Rated current In (A): 40

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 415

Applicable standards: IEC

Available

3D Datasheet

Compare
