Fuses

Showing 1-12 of 72 item(s)

Fuse 1500VDC aBat 1400A 103x144mm 2x M12 flush end...

Reference: 122.820.87

Series name: B500

Power loss (W): 325

Rated current In (A): 1400

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 977000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 5390000

Minimum breaking current (A): 16000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 900A 103x144mm 2x M12 flush end...

Reference: 129.490.94

Series name: B500

Power loss (W): 250

Rated current In (A): 900

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 344000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1900000

Minimum breaking current (A): 10000

Applicable standards: IEC

Available

3D Datasheet

Compare

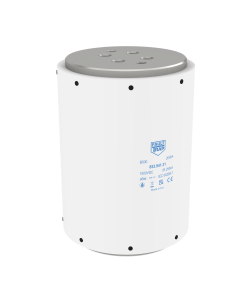

Fuse 1500VDC aBat 900A 103x144mm 4x M10 flush end...

Reference: 130.246.84

Series name: B500

Power loss (W): 250

Rated current In (A): 900

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 344000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 1900000

Minimum breaking current (A): 10000

Applicable standards: IEC

Available

3D Datasheet

Compare

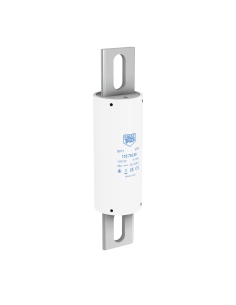

Fuse 1500VDC aBat 630A 50x215mm axial terminals, fixing...

Reference: 135.742.09

Series name: BPF1

Power loss (W): 105

Rated current In (A): 630

Class: aBat

Fuse Dimension (mm): 50x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 168,65

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 242250

Total clearing I²t @Un DC (A²s): 847900

Minimum breaking current (A): 6300

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1250A 76x215mm axial terminals, fixing...

Reference: 194.159.80

Series name: BPF3

Power loss (W): 250

Rated current In (A): 1250

Class: aBat

Fuse Dimension (mm): 76x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 171,5

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1150000

Total clearing I²t @Un DC (A²s): 6555000

Minimum breaking current (A): 15000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1500A 103x144mm 2x M12 flush end...

Reference: 194.777.19

Series name: B500

Power loss (W): 350

Rated current In (A): 1500

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1156000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 6270000

Minimum breaking current (A): 17000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 450A 50x215mm axial terminals, fixing...

Reference: 195.587.43

Series name: BPF1

Power loss (W): 74,5

Rated current In (A): 450

Class: aBat

Fuse Dimension (mm): 50x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 168,65

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 110650

Total clearing I²t @Un DC (A²s): 387300

Minimum breaking current (A): 4500

Applicable standards: IEC

Available

3D Datasheet

Compare

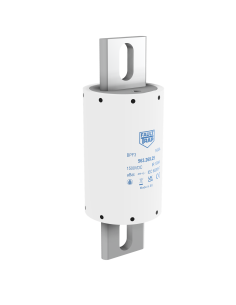

Fuse 1500VDC aBat 1000A 76x215mm axial terminals, fixing...

Reference: 203.035.01

Series name: BPF3

Power loss (W): 230

Rated current In (A): 1000

Class: aBat

Fuse Dimension (mm): 76x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 171,5

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 590000

Total clearing I²t @Un DC (A²s): 3365000

Minimum breaking current (A): 10000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 750A 76x215mm axial terminals, fixing...

Reference: 215.557.23

Series name: BPF3

Power loss (W): 180

Rated current In (A): 750

Class: aBat

Fuse Dimension (mm): 76x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 171,5

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 260000

Total clearing I²t @Un DC (A²s): 1485000

Minimum breaking current (A): 8000

Applicable standards: IEC

Available

3D Datasheet

Compare

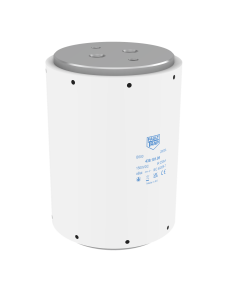

Fuse 1500VDC aBat 1600A 103x144mm 2x M12 flush end...

Reference: 217.929.54

Series name: B500

Power loss (W): 390

Rated current In (A): 1600

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1300600

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 7100000

Minimum breaking current (A): 18000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 630A 50x140mm M8 flush end terminals

Reference: 219.625.98

Series name: BPF1

Power loss (W): 105

Rated current In (A): 630

Class: aBat

Fuse Dimension (mm): 50x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 242250

Fixing dimensions: M8

Total clearing I²t @Un DC (A²s): 847900

Minimum breaking current (A): 6300

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 500A 50x140mm M8 flush end terminals

Reference: 253.583.66

Series name: BPF1

Power loss (W): 87

Rated current In (A): 500

Class: aBat

Fuse Dimension (mm): 50x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 134400

Fixing dimensions: M8

Total clearing I²t @Un DC (A²s): 470400

Minimum breaking current (A): 5000

Applicable standards: IEC

Available

3D Datasheet

Compare

72 items
