Fuses

Showing 37-48 of 48 item(s)

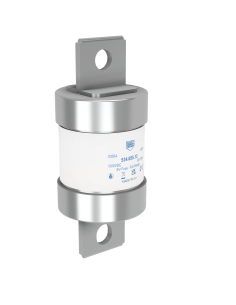

Fuse 1000VDC EV-full range 350A 50x123mm axial terminals,...

Reference: 948.927.94

Series name: Z050A

Power loss (W): 72

Rated current In (A): 350

Class: EV Fuse – Full range

Fuse Dimension (mm): 50x123

Rated Voltage Un DC (V): 1000

Fixing connection centres (mm): 100,1

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 34300

Total clearing I²t @Un DC (A²s): 281300

Minimum breaking current (A): 700

Applicable standards: UL

Available

3D Datasheet

Compare

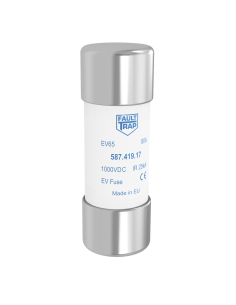

Fuse 1000VDC EV-Full Range 50A 22x65mm

Reference: 968.836.79

Series name: EV65.1000

Power loss (W): 11

Rated current In (A): 50

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 25

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 685

Total clearing I²t @Un DC (A²s): 2800

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 100A 37x123mm...

Reference: 521.528.40

Series name: Z025A

Power loss (W): 19

Rated current In (A): 100

Class: EV Fuse – Full range

Fuse Dimension (mm): 37x123

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 100,1

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2600

Total clearing I²t @Un DC (A²s): 21320

Minimum breaking current (A): 200

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 125A 37x123mm...

Reference: 644.571.35

Series name: Z025A

Power loss (W): 22

Rated current In (A): 125

Class: EV Fuse – Full range

Fuse Dimension (mm): 37x123

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 100,1

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 4600

Total clearing I²t @Un DC (A²s): 37720

Minimum breaking current (A): 250

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 150A 37x123mm...

Reference: 558.505.22

Series name: Z025A

Power loss (W): 25,5

Rated current In (A): 150

Class: EV Fuse – Full range

Fuse Dimension (mm): 37x123

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 100,1

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 7100

Total clearing I²t @Un DC (A²s): 58220

Minimum breaking current (A): 300

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 200A 37x123mm...

Reference: 816.703.62

Series name: Z025A

Power loss (W): 35

Rated current In (A): 200

Class: EV Fuse – Full range

Fuse Dimension (mm): 37x123

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 100,1

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 13400

Total clearing I²t @Un DC (A²s): 110000

Minimum breaking current (A): 400

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 250A 37x123mm...

Reference: 761.809.04

Series name: Z025A

Power loss (W): 42

Rated current In (A): 250

Class: EV Fuse – Full range

Fuse Dimension (mm): 37x123

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 100,1

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 23700

Total clearing I²t @Un DC (A²s): 194340

Minimum breaking current (A): 500

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 100A 37x123mm...

Reference: 926.492.76

Series name: Z025A

Power loss (W): 19

Rated current In (A): 100

Class: EV Fuse – Full range

Fuse Dimension (mm): 37x123

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 100,1

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2600

Total clearing I²t @Un DC (A²s): 21320

Minimum breaking current (A): 200

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 125A 37x123mm...

Reference: 618.014.43

Series name: Z025A

Power loss (W): 22

Rated current In (A): 125

Class: EV Fuse – Full range

Fuse Dimension (mm): 37x123

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 100,1

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 4600

Total clearing I²t @Un DC (A²s): 37720

Minimum breaking current (A): 250

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 150A 37x123mm...

Reference: 221.492.05

Series name: Z025A

Power loss (W): 25,5

Rated current In (A): 150

Class: EV Fuse – Full range

Fuse Dimension (mm): 37x123

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 100,1

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 7100

Total clearing I²t @Un DC (A²s): 58220

Minimum breaking current (A): 300

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 200A 37x123mm...

Reference: 162.998.59

Series name: Z025A

Power loss (W): 35

Rated current In (A): 200

Class: EV Fuse – Full range

Fuse Dimension (mm): 37x123

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 100,1

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 13400

Total clearing I²t @Un DC (A²s): 110000

Minimum breaking current (A): 400

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 250A 37x123mm...

Reference: 171.706.49

Series name: Z025A

Power loss (W): 42

Rated current In (A): 250

Class: EV Fuse – Full range

Fuse Dimension (mm): 37x123

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 100,1

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 23700

Total clearing I²t @Un DC (A²s): 194340

Minimum breaking current (A): 500

Available

Datasheet

Compare

48 items
