Fuses

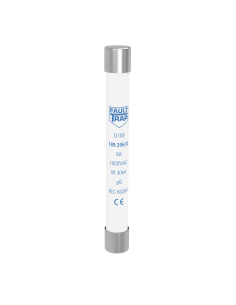

Fuse 1000VAC gG 6A 10x85mm

Reference: 189.356.82

Series name: G108

Power loss (W): 1,35

Rated current In (A): 6

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 30

Fuse Dimension (mm): 10x85

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 195

Total clearing I²t @Un AC (A²s): 3510

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 4A 10x85mm

Reference: 311.354.04

Series name: G108

Power loss (W): 0,9

Rated current In (A): 4

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 30

Fuse Dimension (mm): 10x85

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 80

Total clearing I²t @Un AC (A²s): 1440

Applicable standards: IEC

Available

3D Datasheet

Compare

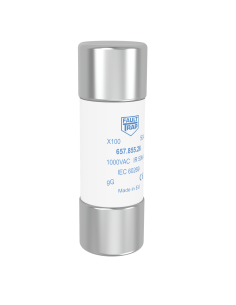

Fuse 1000VAC gG 6A 22x65mm

Reference: 399.505.59

Series name: X100

Power loss (W): 1,5

Rated current In (A): 6

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 120

Total clearing I²t @Un AC (A²s): 4150

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 2A 22x65mm

Reference: 504.060.13

Series name: X100

Power loss (W): 1,1

Rated current In (A): 2

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2,5

Total clearing I²t @Un AC (A²s): 87,5

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 4A 22x65mm

Reference: 597.742.13

Series name: X100

Power loss (W): 1,3

Rated current In (A): 4

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 31

Total clearing I²t @Un AC (A²s): 800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 3A 10x85mm

Reference: 677.846.19

Series name: G108

Rated current In (A): 3

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 30

Fuse Dimension (mm): 10x85

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 20

Total clearing I²t @Un AC (A²s): 360

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 8A 22x65mm

Reference: 699.108.71

Series name: X100

Power loss (W): 1,9

Rated current In (A): 8

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 241

Total clearing I²t @Un AC (A²s): 8500

Applicable standards: IEC

Available

3D Datasheet

Compare

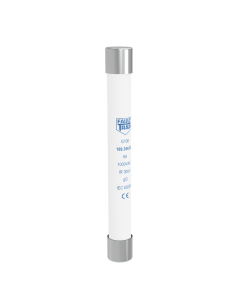

Fuse 1000VAC gG 2A 10x85mm

Reference: 737.739.33

Series name: G108

Rated current In (A): 2

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 30

Fuse Dimension (mm): 10x85, 27x60

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 10A 22x65mm

Reference: 850.994.64

Series name: X100

Power loss (W): 2,5

Rated current In (A): 10

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 10

Total clearing I²t @Un AC (A²s): 90

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 16A 22x65mm

Reference: 256.973.70

Series name: X100

Power loss (W): 4

Rated current In (A): 16

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 30

Total clearing I²t @Un AC (A²s): 265

Applicable standards: IEC

Available

3D Datasheet

Compare

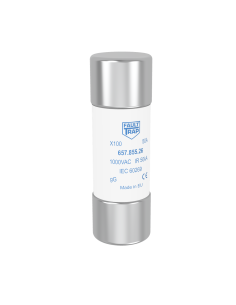

Fuse 1000VAC gG 25A 22x65mm

Reference: 892.468.08

Series name: X100

Power loss (W): 5,5

Rated current In (A): 25

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 91

Total clearing I²t @Un AC (A²s): 790

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 35A 22x65mm

Reference: 397.363.74

Series name: X100

Power loss (W): 6,5

Rated current In (A): 35

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 270

Total clearing I²t @Un AC (A²s): 2315

Applicable standards: IEC

Available

3D Datasheet

Compare
