Fuses

Fuse 800VAC gG 6A 22x65mm

Reference: 291.515.94

Series name: X800

Power loss (W): 1,5

Rated current In (A): 6

Class: gG

Rated Voltage Un AC (V): 800

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 120

Total clearing I²t @Un AC (A²s): 2040

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 20A 22x65mm

Reference: 349.165.25

Series name: X800

Power loss (W): 3

Rated current In (A): 20

Class: gG

Rated Voltage Un AC (V): 800

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 650

Total clearing I²t @Un AC (A²s): 11760

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 40A 22x65mm

Reference: 354.281.83

Series name: X800

Power loss (W): 4

Rated current In (A): 40

Class: gG

Rated Voltage Un AC (V): 800

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1460

Total clearing I²t @Un AC (A²s): 9800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 4A 22x65mm

Reference: 413.870.21

Series name: X800

Power loss (W): 1,3

Rated current In (A): 4

Class: gG

Rated Voltage Un AC (V): 800

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 31

Total clearing I²t @Un AC (A²s): 560

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 32A 22x65mm

Reference: 525.272.76

Series name: X800

Power loss (W): 3,9

Rated current In (A): 32

Class: gG

Rated Voltage Un AC (V): 800

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 650

Total clearing I²t @Un AC (A²s): 4950

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 10A 22x65mm

Reference: 658.578.76

Series name: X800

Power loss (W): 1,4

Rated current In (A): 10

Class: gG

Rated Voltage Un AC (V): 800

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 140

Total clearing I²t @Un AC (A²s): 1680

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 63A 22x65mm

Reference: 771.575.29

Series name: X800

Power loss (W): 6,5

Rated current In (A): 63

Class: gG

Rated Voltage Un AC (V): 800

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 4050

Total clearing I²t @Un AC (A²s): 34300

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 50A 22x65mm

Reference: 778.571.19

Series name: X800

Power loss (W): 5,2

Rated current In (A): 50

Class: gG

Rated Voltage Un AC (V): 800

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2600

Total clearing I²t @Un AC (A²s): 21650

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 16A 22x65mm

Reference: 920.752.40

Series name: X800

Power loss (W): 2,2

Rated current In (A): 16

Class: gG

Rated Voltage Un AC (V): 800

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 380

Total clearing I²t @Un AC (A²s): 4180

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 8A 22x65mm

Reference: 941.257.57

Series name: X800

Power loss (W): 1,9

Rated current In (A): 8

Class: gG

Rated Voltage Un AC (V): 800

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 241

Total clearing I²t @Un AC (A²s): 4100

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 25A 22x65mm

Reference: 950.132.78

Series name: X800

Power loss (W): 3,7

Rated current In (A): 25

Class: gG

Rated Voltage Un AC (V): 800

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1150

Total clearing I²t @Un AC (A²s): 19750

Applicable standards: IEC

Available

3D Datasheet

Compare

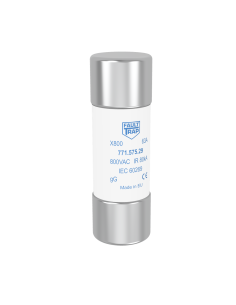

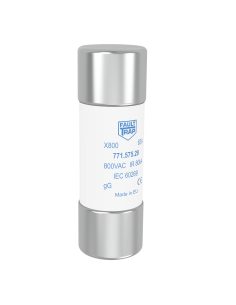

Fuse 800VAC gG 2A 22x65mm

Reference: 977.978.94

Series name: X800

Power loss (W): 1,1

Rated current In (A): 2

Class: gG

Rated Voltage Un AC (V): 800

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2,5

Total clearing I²t @Un AC (A²s): 45

Applicable standards: IEC

Available

3D Datasheet

Compare
