Fuses

Showing 13-24 of 72 item(s)

Fuse 1500VDC aBat 1100A 76x215mm axial terminals, fixing...

Reference: 270.898.07

Series name: BPF3

Power loss (W): 245

Rated current In (A): 1100

Class: aBat

Fuse Dimension (mm): 76x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 171,5

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 790000

Total clearing I²t @Un DC (A²s): 4505000

Minimum breaking current (A): 13200

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1400A 103x144mm 4x M10 flush end...

Reference: 323.237.51

Series name: B500

Power loss (W): 325

Rated current In (A): 1400

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 977000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 5390000

Minimum breaking current (A): 16000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 250A 50x140mm M8 flush end terminals

Reference: 338.784.83

Series name: BPF1

Power loss (W): 47,5

Rated current In (A): 250

Class: aBat

Fuse Dimension (mm): 50x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 22300

Fixing dimensions: M8

Total clearing I²t @Un DC (A²s): 78050

Minimum breaking current (A): 2500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 800A 103x144mm 4x M10 flush end...

Reference: 345.879.76

Series name: B500

Power loss (W): 213

Rated current In (A): 800

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 272000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 1452000

Minimum breaking current (A): 9000

Applicable standards: IEC

Available

3D Datasheet

Compare

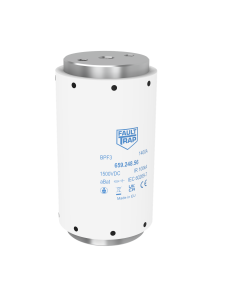

Fuse 1500VDC aBat 700A 76x140mm M12 flush end terminals

Reference: 362.785.61

Series name: BPF3

Power loss (W): 170

Rated current In (A): 700

Class: aBat

Fuse Dimension (mm): 76x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 215000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1225500

Minimum breaking current (A): 7000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 350A 50x140mm M8 flush end terminals

Reference: 369.817.45

Series name: BPF1

Power loss (W): 64

Rated current In (A): 350

Class: aBat

Fuse Dimension (mm): 50x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 50200

Fixing dimensions: M8

Total clearing I²t @Un DC (A²s): 175700

Minimum breaking current (A): 3500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 450A 50x140mm M8 flush end terminals

Reference: 370.113.25

Series name: BPF1

Power loss (W): 74,5

Rated current In (A): 450

Class: aBat

Fuse Dimension (mm): 50x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 110650

Fixing dimensions: M8

Total clearing I²t @Un DC (A²s): 387300

Minimum breaking current (A): 4500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1600A 103x144mm 4x M10 flush end...

Reference: 372.494.14

Series name: B500

Power loss (W): 390

Rated current In (A): 1600

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1300600

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 7100000

Minimum breaking current (A): 18000

Applicable standards: IEC

Available

3D Datasheet

Compare

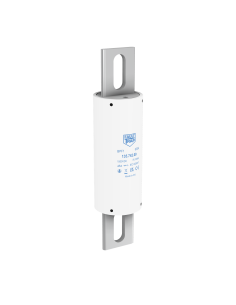

Fuse 1500VDC aBat 500A 50x215mm axial terminals, fixing...

Reference: 374.951.63

Series name: BPF1

Power loss (W): 87

Rated current In (A): 500

Class: aBat

Fuse Dimension (mm): 50x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 168,65

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 134400

Total clearing I²t @Un DC (A²s): 470400

Minimum breaking current (A): 5000

Applicable standards: IEC

Available

3D Datasheet

Compare

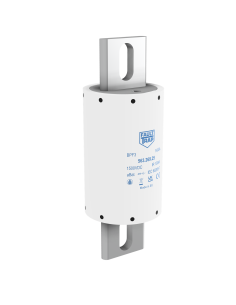

Fuse 1500VDC aBat 700A 76x215mm axial terminals, fixing...

Reference: 380.116.54

Series name: BPF3

Power loss (W): 170

Rated current In (A): 700

Class: aBat

Fuse Dimension (mm): 76x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 171,5

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 215000

Total clearing I²t @Un DC (A²s): 1225500

Minimum breaking current (A): 7000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1800A 103x144mm 4x M10 flush end...

Reference: 395.882.51

Series name: B500

Power loss (W): 430

Rated current In (A): 1800

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1615000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 8720000

Minimum breaking current (A): 19800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 800A 76x140mm M12 flush end terminals

Reference: 412.662.20

Series name: BPF3

Power loss (W): 190

Rated current In (A): 800

Class: aBat

Fuse Dimension (mm): 76x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 320000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1825000

Minimum breaking current (A): 8000

Applicable standards: IEC

Available

3D Datasheet

Compare

72 items
