Fuses

Showing 25-36 of 72 item(s)

Fuse 1500VDC aBat 2000A 103x144mm 2x M12 flush end...

Reference: 439.181.95

Series name: B500

Power loss (W): 445

Rated current In (A): 2000

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2798000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 13650000

Minimum breaking current (A): 25000

Applicable standards: IEC

Available

3D Datasheet

Compare

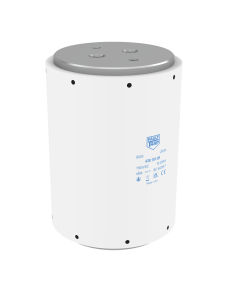

Fuse 1500VDC aBat 1100A 103x144mm 2x M12 flush end...

Reference: 443.411.69

Series name: B500

Power loss (W): 290

Rated current In (A): 1100

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 498000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 2761000

Minimum breaking current (A): 12000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1250A 103x144mm 2x M12 flush end...

Reference: 484.196.45

Series name: B500

Power loss (W): 300

Rated current In (A): 1250

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 718000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 3912000

Minimum breaking current (A): 14000

Applicable standards: IEC

Available

3D Datasheet

Compare

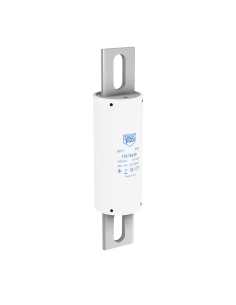

Fuse 1500VDC aBat 350A 50x215mm axial terminals, fixing...

Reference: 504.960.60

Series name: BPF1

Power loss (W): 64

Rated current In (A): 350

Class: aBat

Fuse Dimension (mm): 50x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 168,65

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 50200

Total clearing I²t @Un DC (A²s): 175700

Minimum breaking current (A): 3500

Applicable standards: IEC

Available

3D Datasheet

Compare

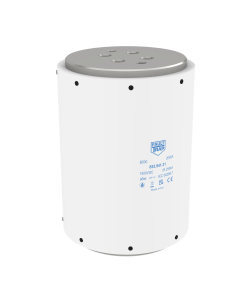

Fuse 1500VDC aBat 1100A 103x144mm 4x M10 flush end...

Reference: 523.117.34

Series name: B500

Power loss (W): 290

Rated current In (A): 1100

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 498000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 2761000

Minimum breaking current (A): 12000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1000A 103x144mm 4x M10 flush end...

Reference: 548.650.95

Series name: B500

Power loss (W): 260

Rated current In (A): 1000

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 404000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 2210000

Minimum breaking current (A): 11000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1400A 76x215mm axial terminals, fixing...

Reference: 563.269.25

Series name: BPF3

Power loss (W): 290

Rated current In (A): 1400

Class: aBat

Fuse Dimension (mm): 76x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 171,5

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1350000

Total clearing I²t @Un DC (A²s): 7695000

Minimum breaking current (A): 19600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 630A 103x144mm 2x M12 flush end...

Reference: 570.142.90

Series name: B500

Power loss (W): 170

Rated current In (A): 630

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 145000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 772800

Minimum breaking current (A): 6900

Applicable standards: IEC

Available

3D Datasheet

Compare

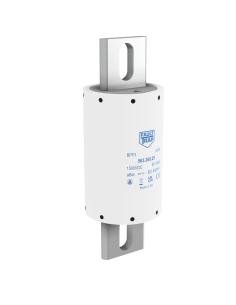

Fuse 1500VDC aBat 800A 76x215mm axial terminals, fixing...

Reference: 571.524.50

Series name: BPF3

Power loss (W): 190

Rated current In (A): 800

Class: aBat

Fuse Dimension (mm): 76x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 171,5

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 320000

Total clearing I²t @Un DC (A²s): 1825000

Minimum breaking current (A): 8000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 750A 103x144mm 2x M12 flush end...

Reference: 609.756.44

Series name: B500

Power loss (W): 205

Rated current In (A): 750

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 228000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1264000

Minimum breaking current (A): 8700

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 900A 76x140mm M12 flush end terminals

Reference: 623.631.19

Series name: BPF3

Power loss (W): 210

Rated current In (A): 900

Class: aBat

Fuse Dimension (mm): 76x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 435000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 2480000

Minimum breaking current (A): 9000

Applicable standards: IEC

Available

3D Datasheet

Compare

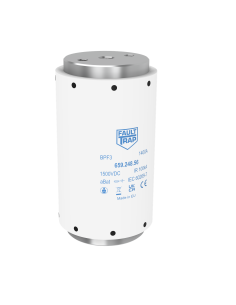

Fuse 1500VDC aBat 750A 76x140mm M12 flush end terminals

Reference: 629.830.04

Series name: BPF3

Power loss (W): 180

Rated current In (A): 750

Class: aBat

Fuse Dimension (mm): 76x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 260000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1485000

Minimum breaking current (A): 8000

Applicable standards: IEC

Available

3D Datasheet

Compare

72 items
