Fuses

Showing 1-765 of 765 item(s)

Fuse 500VAC IEC/550VAC UL aR 40A 22x58mm surface mount,...

Reference: 100.913.34

Series name: UR22

Power loss (W): 9,6

Rated current In (A): 40

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 148

Total clearing I²t @Un AC (A²s): 640

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 60A 22x85mm in-line aluminum terminals 6AWG

Reference: 100.942.90

Series name: 20PV22

Power loss (W): 13,9

Rated current In (A): 60

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1450

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 3A 10x85mm in-line terminals

Reference: 105.250.53

Series name: V108

Rated current In (A): 3

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: In-line for copper cable

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 690VAC/500VDC aR 45A 17x77mm fixing centres 63mm

Reference: 109.463.20

Series name: 69E1

Power loss (W): 13,8

Rated current In (A): 45

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 17x77

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 63,5

Melting I²t value (A²s): 114

Total clearing I²t @Un AC (A²s): 724

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 60A 22x85mm in-line copper terminals 6/8...

Reference: 110.602.39

Series name: 20PV22

Power loss (W): 13,9

Rated current In (A): 60

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1450

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 240VAC/150VDC aR 32A 17x56mm fixing centres 42mm

Reference: 111.513.22

Series name: 24E1

Power loss (W): 5,1

Rated current In (A): 32

Class: aR

Rated Voltage Un AC (V): 240

Rated breaking capacity I1 AC (kA): 100

Rated Voltage Un DC (V): 150

Rated breaking capacity I1 DC (kA): 20

Melting I²t value (A²s): 39,1

Total clearing I²t @Un AC (A²s): 390

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 6300A size 2 61x50mm M10 flush end terminals

Reference: 111.779.56

Series name: C200

Power loss (W): 80

Rated current In (A): 630

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 61x50

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 55500

Total clearing I²t @Un AC (A²s): 305000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 350A 50x123mm surface mount,...

Reference: 112.127.07

Series name: Z050A

Rated current In (A): 350

Class: EV Fuse – Full range

Rated Voltage Un DC (V): 1000

Time costant L/R (ms): 2,5

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 135A 22x58mm with pins for...

Reference: 114.304.22

Series name: UR22

Power loss (W): 28,6

Rated current In (A): 135

Class: aR

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 3640

Total clearing I²t @Un AC (A²s): 17800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 550A size 1 53x52mm M8 flush end terminals

Reference: 114.997.24

Series name: C100

Power loss (W): 84

Rated current In (A): 550

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 33000

Fixing dimensions: M8

Total clearing I²t @Un AC (A²s): 230000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 160A size 1 53x52mm M8 flush end terminals

Reference: 115.115.26

Series name: C100

Power loss (W): 24

Rated current In (A): 160

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1100

Fixing dimensions: M8

Total clearing I²t @Un AC (A²s): 7500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 200A 38x129mm tin plated axial...

Reference: 116.278.54

Series name: B025

Power loss (W): 30

Rated current In (A): 200

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 10400

Total clearing I²t @Un DC (A²s): 23000

Minimum breaking current (A): 1600

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse BS 690VAC/500VDC aR 35A 17x77mm fixing centres 63mm

Reference: 118.456.44

Series name: 69E1

Power loss (W): 11,6

Rated current In (A): 35

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 17x77

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 63,5

Melting I²t value (A²s): 69

Total clearing I²t @Un AC (A²s): 286

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 80A 38x129mm silver plated axial...

Reference: 118.783.40

Series name: B025

Power loss (W): 12,5

Rated current In (A): 80

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1300

Total clearing I²t @Un DC (A²s): 2900

Minimum breaking current (A): 640

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 500VDC aBat 350A 38x109mm fixing centres 80mm

Reference: 121.209.35

Series name: T500

Power loss (W): 40

Rated current In (A): 350

Class: aBat

Fuse Dimension (mm): 38x109

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 80,35

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 33600

Total clearing I²t @Un DC (A²s): 50000

Minimum breaking current (A): 3500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 63A 38x129mm tin plated axial...

Reference: 121.227.80

Series name: B025

Power loss (W): 10

Rated current In (A): 63

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 740

Total clearing I²t @Un DC (A²s): 1700

Minimum breaking current (A): 504

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 300A 50x141mm tin plated axial...

Reference: 122.473.58

Series name: B050

Power loss (W): 42

Rated current In (A): 300

Class: aBat, aR

Fuse Dimension (mm): 50x141

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 22300

Total clearing I²t @Un DC (A²s): 58000

Minimum breaking current (A): 3000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1400A 103x144mm 2x M12 flush end...

Reference: 122.820.87

Series name: B500

Power loss (W): 325

Rated current In (A): 1400

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 977000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 5390000

Minimum breaking current (A): 16000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 50A 22x58mm surface mount,...

Reference: 123.063.29

Series name: UR22

Power loss (W): 13,3

Rated current In (A): 50

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 195

Total clearing I²t @Un AC (A²s): 955

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VDC aBat 300A 38x109mm fixing centres 80mm

Reference: 124.111.98

Series name: T500

Power loss (W): 31

Rated current In (A): 300

Class: aBat

Fuse Dimension (mm): 38x109

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 80,35

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 23300

Total clearing I²t @Un DC (A²s): 34500

Minimum breaking current (A): 3000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC EV-Full Range 75A 22x65mm surface mount,...

Reference: 128.153.37

Series name: EV65.1500

Power loss (W): 13,5

Rated current In (A): 75

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 25

Fixing connection centres (mm): 87

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2480

Total clearing I²t @Un DC (A²s): 12500

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 50A 22x65mm

Reference: 128.721.89

Series name: DC22

Power loss (W): 11,8

Rated current In (A): 50

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 380

Total clearing I²t @Un DC (A²s): 1710

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 900A 103x144mm 2x M12 flush end...

Reference: 129.490.94

Series name: B500

Power loss (W): 250

Rated current In (A): 900

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 344000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1900000

Minimum breaking current (A): 10000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 900A 103x144mm 4x M10 flush end...

Reference: 130.246.84

Series name: B500

Power loss (W): 250

Rated current In (A): 900

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 344000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 1900000

Minimum breaking current (A): 10000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 40A 14x51mm

Reference: 130.888.58

Series name: A145

Power loss (W): 11

Rated current In (A): 40

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 14x51

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 142

Total clearing I²t @Un AC (A²s): 1100

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 630A 50x215mm axial terminals, fixing...

Reference: 135.742.09

Series name: BPF1

Power loss (W): 105

Rated current In (A): 630

Class: aBat

Fuse Dimension (mm): 50x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 168,65

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 242250

Total clearing I²t @Un DC (A²s): 847900

Minimum breaking current (A): 6300

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-Full Range 60A 22x65mm surface mount,...

Reference: 135.908.34

Series name: EV65.1000

Power loss (W): 12

Rated current In (A): 60

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 25

Fixing connection centres (mm): 87

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1220

Total clearing I²t @Un DC (A²s): 4100

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 60A 22x85mm

Reference: 140.737.12

Series name: 20PV22

Power loss (W): 13,9

Rated current In (A): 60

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1450

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 180A DIN000/80 without indicator...

Reference: 143.745.86

Series name: NR2A

Power loss (W): 42,5

Rated current In (A): 180

Class: aR

Indicator: No

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 4120

Total clearing I²t @Un AC (A²s): 15100

Total clearing I²t @Un DC (A²s): 18000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-Full Range 50A 22x65mm surface mount,...

Reference: 144.436.69

Series name: EV65.1000

Power loss (W): 11

Rated current In (A): 50

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 25

Fixing connection centres (mm): 87

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 685

Total clearing I²t @Un DC (A²s): 2800

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 100A DIN00/80 with indicator and...

Reference: 146.054.81

Series name: NR2B

Rated current In (A): 100

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 12A 10x85mm

Reference: 148.029.72

Series name: V108

Rated current In (A): 12

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 1A 10x85mm

Reference: 148.405.23

Series name: 20PV10

Power loss (W): 0,8

Rated current In (A): 1

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 0,7

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 300A 50x129mm silver plated axial...

Reference: 149.115.43

Series name: B050

Power loss (W): 42

Rated current In (A): 300

Class: aBat, aR

Fuse Dimension (mm): 50x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 22300

Total clearing I²t @Un DC (A²s): 58000

Minimum breaking current (A): 3000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1500VDC EV-Full Range 25A 22x65mm

Reference: 149.229.21

Series name: EV65.1500

Power loss (W): 6,5

Rated current In (A): 25

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 25

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 130

Total clearing I²t @Un DC (A²s): 1400

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 200A DIN000/80 with indicator and...

Reference: 149.583.52

Series name: NR2A

Power loss (W): 48,5

Rated current In (A): 250

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 5370

Total clearing I²t @Un AC (A²s): 19600

Total clearing I²t @Un DC (A²s): 23400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 400A DIN00/80 with indicator and with lug...

Reference: 152.430.74

Series name: NR2B

Rated current In (A): 400

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 240VAC/150VDC aR 10A 17x56mm fixing centres 42mm

Reference: 154.059.27

Series name: 24E1

Power loss (W): 2,3

Rated current In (A): 10

Class: aR

Rated Voltage Un AC (V): 240

Rated breaking capacity I1 AC (kA): 100

Rated Voltage Un DC (V): 150

Rated breaking capacity I1 DC (kA): 20

Melting I²t value (A²s): 3,5

Total clearing I²t @Un AC (A²s): 17,6

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 12A 22x58mm surface mount,...

Reference: 157.322.07

Series name: UR22

Power loss (W): 3,5

Rated current In (A): 12

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 8,5

Total clearing I²t @Un AC (A²s): 37

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 10A 14x51mm

Reference: 157.396.21

Series name: A145

Power loss (W): 2,8

Rated current In (A): 10

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 14x51

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 8

Total clearing I²t @Un AC (A²s): 40

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 750A 63x167mm silver plated axial...

Reference: 157.565.30

Series name: B100

Power loss (W): 140

Rated current In (A): 750

Class: aBat

Fuse Dimension (mm): 63x167

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 132,75

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 166000

Total clearing I²t @Un DC (A²s): 500000

Minimum breaking current (A): 7500

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 125A 38x129mm silver plated axial...

Reference: 157.806.86

Series name: B025

Power loss (W): 19

Rated current In (A): 125

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 3500

Total clearing I²t @Un DC (A²s): 8000

Minimum breaking current (A): 1000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 250A 50x129mm silver plated axial...

Reference: 160.833.51

Series name: B050

Power loss (W): 36

Rated current In (A): 250

Class: aBat, aR

Fuse Dimension (mm): 50x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 15000

Total clearing I²t @Un DC (A²s): 40000

Minimum breaking current (A): 2500

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 800A 63x203mm tin plated axial...

Reference: 161.186.65

Series name: B100

Power loss (W): 150

Rated current In (A): 800

Class: aBat

Fuse Dimension (mm): 63x203

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 152,7

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 185000

Total clearing I²t @Un DC (A²s): 550000

Minimum breaking current (A): 8000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 80A 27x85mm in-line terminal for copper...

Reference: 166.238.86

Series name: 20PV27

Power loss (W): 20

Rated current In (A): 80

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 2400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 750A 63x106mm 2x M12 flush end...

Reference: 168.384.52

Series name: B100

Power loss (W): 140

Rated current In (A): 750

Class: aBat

Fuse Dimension (mm): 63x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 166000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 500000

Minimum breaking current (A): 7500

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 12A 14x85mm in-line terminals

Reference: 170.071.20

Series name: 20PV14

Power loss (W): 4

Rated current In (A): 12

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 23

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 50A size 1 53x52mm M8 flush end terminals

Reference: 171.033.15

Series name: C100

Power loss (W): 8

Rated current In (A): 50

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 77

Fixing dimensions: M8

Total clearing I²t @Un AC (A²s): 510

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 4A 10x85mm

Reference: 171.064.59

Series name: 20PV10

Power loss (W): 1,8

Rated current In (A): 4

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 19

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 80A 38x129mm tin plated axial...

Reference: 173.505.07

Series name: B025

Power loss (W): 12,5

Rated current In (A): 80

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1300

Total clearing I²t @Un DC (A²s): 2900

Minimum breaking current (A): 640

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 250A 38x129mm tin plated axial...

Reference: 173.672.39

Series name: B025

Power loss (W): 39

Rated current In (A): 250

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 15500

Total clearing I²t @Un DC (A²s): 34000

Minimum breaking current (A): 2000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 40A DIN00/80 with indicator and...

Reference: 177.747.74

Series name: NR2B

Rated current In (A): 40

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 25A 22x58mm with pins for...

Reference: 178.821.86

Series name: UR22

Power loss (W): 7,6

Rated current In (A): 25

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 33

Total clearing I²t @Un AC (A²s): 147

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 25A DIN000/80 without indicator and...

Reference: 180.375.44

Series name: NR2A

Power loss (W): 4,6

Rated current In (A): 25

Class: aR

Indicator: No

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 55

Total clearing I²t @Un AC (A²s): 200

Total clearing I²t @Un DC (A²s): 240

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 50A 22x85mm in-line copper terminals 6/8...

Reference: 180.780.89

Series name: 20PV22

Power loss (W): 12,7

Rated current In (A): 50

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 815

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 125A DIN000/80 with indicator and...

Reference: 180.801.43

Series name: NR2A

Power loss (W): 27,5

Rated current In (A): 125

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2100

Total clearing I²t @Un AC (A²s): 7700

Total clearing I²t @Un DC (A²s): 9200

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 20A 10x38mm surface mount, fixing...

Reference: 180.809.48

Series name: E103

Power loss (W): 2,6

Rated current In (A): 20

Class: aBat

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Fixing connection centres (mm): 52

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 35

Total clearing I²t @Un DC (A²s): 342

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 100A 22x58mm surface mount,...

Reference: 180.960.54

Series name: UR22

Power loss (W): 19,1

Rated current In (A): 100

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2150

Total clearing I²t @Un AC (A²s): 9345

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 600A 50x141mm silver plated axial...

Reference: 183.055.24

Series name: B050

Power loss (W): 79

Rated current In (A): 600

Class: aBat, aR

Fuse Dimension (mm): 50x141

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 134000

Total clearing I²t @Un DC (A²s): 350000

Minimum breaking current (A): 6000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 40A 22x65mm

Reference: 183.616.47

Series name: DC22

Power loss (W): 8,8

Rated current In (A): 40

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 255

Total clearing I²t @Un DC (A²s): 1150

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC EV-Full Range 50A 22x65mm

Reference: 185.429.21

Series name: EV65.1500

Power loss (W): 11

Rated current In (A): 50

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 25

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 685

Total clearing I²t @Un DC (A²s): 5600

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 25A 10x38mm

Reference: 188.058.69

Series name: M100

Power loss (W): 5

Rated current In (A): 25

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 30

Fuse Connection/Terminal type: Cylindrical

Minimum breaking current (A): 50

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 350A 50x129mm tin plated axial...

Reference: 189.186.07

Series name: B050

Power loss (W): 48

Rated current In (A): 350

Class: aBat, aR

Fuse Dimension (mm): 50x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 33600

Total clearing I²t @Un DC (A²s): 88000

Minimum breaking current (A): 3500

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VAC gG 6A 10x85mm

Reference: 189.356.82

Series name: G108

Power loss (W): 1,35

Rated current In (A): 6

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 30

Fuse Dimension (mm): 10x85

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 195

Total clearing I²t @Un AC (A²s): 3510

Applicable standards: IEC

Available

3D Datasheet

Compare

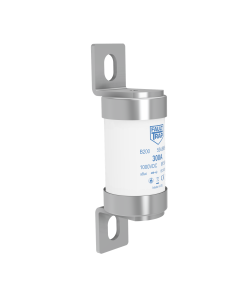

Fuse 1000VDC aBat 80A 38x127mm axial terminals, fixing...

Reference: 190.739.88

Series name: B200

Power loss (W): 14

Rated current In (A): 80

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1300

Total clearing I²t @Un DC (A²s): 5000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 160A DIN000/80 without indicator...

Reference: 193.430.72

Series name: NR2A

Power loss (W): 37,5

Rated current In (A): 160

Class: aR

Indicator: No

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 3020

Total clearing I²t @Un AC (A²s): 11100

Total clearing I²t @Un DC (A²s): 13200

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1250A 76x215mm axial terminals, fixing...

Reference: 194.159.80

Series name: BPF3

Power loss (W): 250

Rated current In (A): 1250

Class: aBat

Fuse Dimension (mm): 76x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 171,5

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1150000

Total clearing I²t @Un DC (A²s): 6555000

Minimum breaking current (A): 15000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1500A 103x144mm 2x M12 flush end...

Reference: 194.777.19

Series name: B500

Power loss (W): 350

Rated current In (A): 1500

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1156000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 6270000

Minimum breaking current (A): 17000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 450A 50x215mm axial terminals, fixing...

Reference: 195.587.43

Series name: BPF1

Power loss (W): 74,5

Rated current In (A): 450

Class: aBat

Fuse Dimension (mm): 50x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 168,65

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 110650

Total clearing I²t @Un DC (A²s): 387300

Minimum breaking current (A): 4500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 40A 22x65mm

Reference: 197.414.07

Series name: PV22

Power loss (W): 9

Rated current In (A): 40

Class: gPV

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 10

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 425

Total clearing I²t @Un DC (A²s): 3500

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 5A 10x85mm in-line terminals

Reference: 199.448.53

Series name: 20PV10

Power loss (W): 2

Rated current In (A): 5

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 42

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 1000A 63x167mm silver plated axial...

Reference: 202.728.65

Series name: B100

Power loss (W): 175

Rated current In (A): 1000

Class: aBat

Fuse Dimension (mm): 63x167

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 132,75

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 373500

Total clearing I²t @Un DC (A²s): 1095000

Minimum breaking current (A): 10000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1000A 76x215mm axial terminals, fixing...

Reference: 203.035.01

Series name: BPF3

Power loss (W): 230

Rated current In (A): 1000

Class: aBat

Fuse Dimension (mm): 76x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 171,5

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 590000

Total clearing I²t @Un DC (A²s): 3365000

Minimum breaking current (A): 10000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 200A 38x127mm surface mount, fixing...

Reference: 203.757.17

Series name: B200

Power loss (W): 32

Rated current In (A): 200

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 11400

Total clearing I²t @Un DC (A²s): 43500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 800A size 2 61x50mm M10 flush end terminals

Reference: 204.841.59

Series name: C200

Power loss (W): 92

Rated current In (A): 800

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 61x50

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 115200

Total clearing I²t @Un AC (A²s): 553000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 400A 50x141mm tin plated axial...

Reference: 209.159.68

Series name: B050

Power loss (W): 55

Rated current In (A): 400

Class: aBat, aR

Fuse Dimension (mm): 50x141

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 44300

Total clearing I²t @Un DC (A²s): 115500

Minimum breaking current (A): 4000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 32A 10x85mm

Reference: 210.825.49

Series name: V108

Rated current In (A): 32

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 45A 22x85mm in-line copper terminals 6/8...

Reference: 212.218.36

Series name: 20PV22

Power loss (W): 11,9

Rated current In (A): 45

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC EV-Full Range 30A 22x65mm surface mount,...

Reference: 212.960.15

Series name: EV65.1500

Power loss (W): 7

Rated current In (A): 30

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 25

Fixing connection centres (mm): 87

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 230

Total clearing I²t @Un DC (A²s): 1800

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 65A 22x85mm in-line copper terminals 6/8...

Reference: 213.415.06

Series name: 20PV22

Power loss (W): 15,4

Rated current In (A): 65

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1660

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 600A 2x38x127mm fixing centres 99mm

Reference: 214.295.79

Series name: B200

Power loss (W): 85,5

Rated current In (A): 600

Class: aBat

Fuse Dimension (mm): 2x 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 150000

Total clearing I²t @Un DC (A²s): 570000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 40A DIN000/80 without indicator and...

Reference: 214.646.89

Series name: NR2A

Power loss (W): 7,2

Rated current In (A): 40

Class: aR

Indicator: No

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 230

Total clearing I²t @Un AC (A²s): 840

Total clearing I²t @Un DC (A²s): 1000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 750A 76x215mm axial terminals, fixing...

Reference: 215.557.23

Series name: BPF3

Power loss (W): 180

Rated current In (A): 750

Class: aBat

Fuse Dimension (mm): 76x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 171,5

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 260000

Total clearing I²t @Un DC (A²s): 1485000

Minimum breaking current (A): 8000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 100A size 1 53x52mm M8 flush end terminals

Reference: 217.505.16

Series name: C100

Rated current In (A): 100

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Fixing dimensions: M8

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1600A 103x144mm 2x M12 flush end...

Reference: 217.929.54

Series name: B500

Power loss (W): 390

Rated current In (A): 1600

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1300600

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 7100000

Minimum breaking current (A): 18000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC 22x65mm for protection of SPD with Iimp up to...

Reference: 219.431.84

Series name: A100

Rated Voltage Un AC (V): 800

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 87610

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 630A 50x140mm M8 flush end terminals

Reference: 219.625.98

Series name: BPF1

Power loss (W): 105

Rated current In (A): 630

Class: aBat

Fuse Dimension (mm): 50x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 242250

Fixing dimensions: M8

Total clearing I²t @Un DC (A²s): 847900

Minimum breaking current (A): 6300

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gBat 32A 22x65mm

Reference: 220.758.52

Series name: BP22

Power loss (W): 5,7

Rated current In (A): 32

Class: gBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 210

Minimum breaking current (A): 64

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VDC aBat 200A 38x109mm fixing centres 80mm

Reference: 224.219.21

Series name: T500

Power loss (W): 19

Rated current In (A): 250

Class: aBat

Fuse Dimension (mm): 38x109

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 80,35

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 10400

Total clearing I²t @Un DC (A²s): 15500

Minimum breaking current (A): 2000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 700A 63x203mm silver plated axial...

Reference: 224.928.92

Series name: B100

Power loss (W): 128

Rated current In (A): 700

Class: aBat

Fuse Dimension (mm): 63x203

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 152,7

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 143600

Total clearing I²t @Un DC (A²s): 431000

Minimum breaking current (A): 7000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 1000A 63x203mm silver plated axial...

Reference: 225.952.24

Series name: B100

Power loss (W): 175

Rated current In (A): 1000

Class: aBat

Fuse Dimension (mm): 63x203

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 152,7

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 373500

Total clearing I²t @Un DC (A²s): 1095000

Minimum breaking current (A): 10000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 40A 22x85mm

Reference: 226.616.51

Series name: 20PV22

Power loss (W): 11,3

Rated current In (A): 40

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 415

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 125A 22x65mm

Reference: 229.163.75

Series name: DC22

Power loss (W): 29,5

Rated current In (A): 125

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 3550

Total clearing I²t @Un DC (A²s): 15600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC EV-Full Range 40A 22x65mm surface mount,...

Reference: 230.877.90

Series name: EV65.1500

Power loss (W): 9

Rated current In (A): 40

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 25

Fixing connection centres (mm): 87

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 425

Total clearing I²t @Un DC (A²s): 3500

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 30A 10x85mm

Reference: 232.383.85

Series name: V108

Rated current In (A): 30

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 500A 38x127mm axial terminals, fixing...

Reference: 233.082.62

Series name: BSDC

Power loss (W): 78

Rated current In (A): 500

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 84000

Total clearing I²t @Un DC (A²s): 319000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC EV-Full Range 50A 22x65mm surface mount,...

Reference: 233.209.87

Series name: EV65.1500

Power loss (W): 11

Rated current In (A): 50

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 25

Fixing connection centres (mm): 87

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 685

Total clearing I²t @Un DC (A²s): 5600

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 900A 63x167mm tin plated axial...

Reference: 236.250.74

Series name: B100

Power loss (W): 170

Rated current In (A): 900

Class: aBat

Fuse Dimension (mm): 63x167

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 132,75

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 267000

Total clearing I²t @Un DC (A²s): 813000

Minimum breaking current (A): 9000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 400A 50x129mm silver plated axial...

Reference: 236.941.35

Series name: B050

Power loss (W): 55

Rated current In (A): 400

Class: aBat, aR

Fuse Dimension (mm): 50x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 44300

Total clearing I²t @Un DC (A²s): 115500

Minimum breaking current (A): 4000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC gBat 35A 22x65mm

Reference: 237.887.48

Series name: BP22

Power loss (W): 6,1

Rated current In (A): 35

Class: gBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 265

Minimum breaking current (A): 70

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gPV 4A 10x38mm

Reference: 238.967.87

Series name: V103

Rated current In (A): 4

Class: gPV

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 80A DIN00/80 with indicator and...

Reference: 245.542.07

Series name: NR2B

Rated current In (A): 80

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 63A DIN000/80 with indicator and...

Reference: 247.278.11

Series name: NR2A

Power loss (W): 9,5

Rated current In (A): 63

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 520

Total clearing I²t @Un AC (A²s): 1900

Total clearing I²t @Un DC (A²s): 2260

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 240VAC/150VDC aR 160A 17x56mm fixing centres 42mm

Reference: 247.730.22

Series name: 24E1

Power loss (W): 21,9

Rated current In (A): 160

Class: aR

Rated Voltage Un AC (V): 240

Rated breaking capacity I1 AC (kA): 100

Rated Voltage Un DC (V): 150

Rated breaking capacity I1 DC (kA): 20

Melting I²t value (A²s): 990

Total clearing I²t @Un AC (A²s): 8590

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-Full Range 30A 22x65mm

Reference: 247.896.25

Series name: EV65.1000

Power loss (W): 7

Rated current In (A): 30

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 25

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 230

Total clearing I²t @Un DC (A²s): 910

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 63A 38x127mm surface mount, fixing...

Reference: 250.111.16

Series name: B200

Power loss (W): 11

Rated current In (A): 63

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 750

Total clearing I²t @Un DC (A²s): 2850

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 500A 50x140mm M8 flush end terminals

Reference: 253.583.66

Series name: BPF1

Power loss (W): 87

Rated current In (A): 500

Class: aBat

Fuse Dimension (mm): 50x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 134400

Fixing dimensions: M8

Total clearing I²t @Un DC (A²s): 470400

Minimum breaking current (A): 5000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 63A 22x65mm

Reference: 264.044.65

Series name: DC22

Power loss (W): 12,5

Rated current In (A): 63

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 750

Total clearing I²t @Un DC (A²s): 3305

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 8A 10x38mm

Reference: 264.442.90

Series name: M100

Power loss (W): 1,05

Rated current In (A): 8

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 30

Fuse Connection/Terminal type: Cylindrical

Minimum breaking current (A): 16

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse BS 240VAC/150VDC aR 180A 17x56mm fixing centres 42mm

Reference: 264.624.65

Series name: 24E1

Power loss (W): 26,3

Rated current In (A): 180

Class: aR

Rated Voltage Un AC (V): 240

Rated breaking capacity I1 AC (kA): 100

Rated Voltage Un DC (V): 150

Rated breaking capacity I1 DC (kA): 20

Melting I²t value (A²s): 1550

Total clearing I²t @Un AC (A²s): 13440

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 80A 22x58mm with pins for...

Reference: 265.359.20

Series name: UR22

Power loss (W): 16,3

Rated current In (A): 80

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1055

Total clearing I²t @Un AC (A²s): 4620

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 450A 50x129mm tin plated axial...

Reference: 265.639.01

Series name: B050

Power loss (W): 60

Rated current In (A): 450

Class: aBat, aR

Fuse Dimension (mm): 50x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 62000

Total clearing I²t @Un DC (A²s): 162000

Minimum breaking current (A): 4500

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 250A 50x141mm tin plated axial...

Reference: 267.812.88

Series name: B050

Power loss (W): 36

Rated current In (A): 250

Class: aBat, aR

Fuse Dimension (mm): 50x141

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 15000

Total clearing I²t @Un DC (A²s): 40000

Minimum breaking current (A): 2500

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 500VDC EV-full range 40A 10x38mm

Reference: 269.721.81

Series name: M050

Power loss (W): 5,6

Rated current In (A): 40

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 30

Fuse Connection/Terminal type: Cylindrical

Minimum breaking current (A): 80

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1100A 76x215mm axial terminals, fixing...

Reference: 270.898.07

Series name: BPF3

Power loss (W): 245

Rated current In (A): 1100

Class: aBat

Fuse Dimension (mm): 76x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 171,5

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 790000

Total clearing I²t @Un DC (A²s): 4505000

Minimum breaking current (A): 13200

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 12A 10x38mm surface mount,...

Reference: 274.212.69

Series name: M100

Power loss (W): 2

Rated current In (A): 12

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 53

Fuse Connection/Terminal type: Screw fixing

Minimum breaking current (A): 12

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 55A 22x85mm

Reference: 276.236.15

Series name: 20PV22

Power loss (W): 13,5

Rated current In (A): 55

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1065

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 45A 22x85mm

Reference: 279.406.19

Series name: 20PV22

Power loss (W): 11,9

Rated current In (A): 45

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 8A 10x38mm surface mount, fixing...

Reference: 279.440.74

Series name: E103

Power loss (W): 2,1

Rated current In (A): 8

Class: aBat

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Fixing connection centres (mm): 52

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 3

Total clearing I²t @Un DC (A²s): 32

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 315A size 1 53x52mm M8 flush end terminals

Reference: 285.250.19

Series name: C100

Power loss (W): 48

Rated current In (A): 315

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 6800

Fixing dimensions: M8

Total clearing I²t @Un AC (A²s): 46000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 200A 38x127mm axial terminals, fixing...

Reference: 289.725.19

Series name: B200

Power loss (W): 32

Rated current In (A): 200

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 11400

Total clearing I²t @Un DC (A²s): 43500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 200A 38x129mm silver plated axial...

Reference: 290.646.80

Series name: B025

Power loss (W): 30

Rated current In (A): 200

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 10400

Total clearing I²t @Un DC (A²s): 23000

Minimum breaking current (A): 1600

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 800VAC gG 6A 22x65mm

Reference: 291.515.94

Series name: X800

Rated current In (A): 6

Class: gG

Fuse Dimension (mm): 22x65

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 35A 22x85mm in-line aluminum terminals 6AWG

Reference: 291.978.89

Series name: 20PV22

Power loss (W): 10,7

Rated current In (A): 35

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 265

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VDC aBat 125A 38x109mm fixing centres 80mm

Reference: 297.366.16

Series name: T500

Power loss (W): 12

Rated current In (A): 125

Class: aBat

Fuse Dimension (mm): 38x109

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 80,35

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 3500

Total clearing I²t @Un DC (A²s): 5300

Minimum breaking current (A): 1250

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 80A DIN000/80 with indicator and...

Reference: 298.939.97

Series name: NR2A

Power loss (W): 17

Rated current In (A): 80

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 750

Total clearing I²t @Un AC (A²s): 2800

Total clearing I²t @Un DC (A²s): 3300

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VDC EV-full range 50A 10x38mm

Reference: 300.273.41

Series name: M050

Power loss (W): 6,8

Rated current In (A): 50

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 30

Fuse Connection/Terminal type: Cylindrical

Minimum breaking current (A): 100

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 315A DIN000/80 with indicator and...

Reference: 301.249.46

Series name: NR2A

Power loss (W): 70

Rated current In (A): 315

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 16450

Total clearing I²t @Un AC (A²s): 60000

Total clearing I²t @Un DC (A²s): 71600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 400A 50x141mm silver plated axial...

Reference: 302.343.96

Series name: B050

Power loss (W): 55

Rated current In (A): 400

Class: aBat, aR

Fuse Dimension (mm): 50x141

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 44300

Total clearing I²t @Un DC (A²s): 115500

Minimum breaking current (A): 4000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 40A DIN00/80 with indicator and...

Reference: 302.935.93

Series name: NR2B

Rated current In (A): 40

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 25A 14x85mm

Reference: 304.185.41

Series name: 20PV14

Power loss (W): 7,6

Rated current In (A): 25

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 118

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 300A 38x127mm axial terminals, fixing...

Reference: 305.921.98

Series name: B200

Power loss (W): 43

Rated current In (A): 300

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 37500

Total clearing I²t @Un DC (A²s): 145000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 40A 22x58mm with pins for...

Reference: 306.349.41

Series name: UR22

Power loss (W): 9,6

Rated current In (A): 40

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 148

Total clearing I²t @Un AC (A²s): 640

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 250A DIN000/80 with indicator and...

Reference: 306.749.97

Series name: NR2A

Power loss (W): 57

Rated current In (A): 250

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 10150

Total clearing I²t @Un AC (A²s): 37100

Total clearing I²t @Un DC (A²s): 44200

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 80A 27x85mm

Reference: 308.291.60

Series name: 20PV27

Power loss (W): 20

Rated current In (A): 80

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 25A 10x38mm surface mount, fixing...

Reference: 308.969.02

Series name: E103

Power loss (W): 3,5

Rated current In (A): 25

Class: aBat

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Fixing connection centres (mm): 52

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 66

Total clearing I²t @Un DC (A²s): 926

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 750A 63x167mm tin plated axial...

Reference: 309.341.47

Series name: B100

Power loss (W): 140

Rated current In (A): 750

Class: aBat

Fuse Dimension (mm): 63x167

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 132,75

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 166000

Total clearing I²t @Un DC (A²s): 500000

Minimum breaking current (A): 7500

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC gPV 25A 10x38mm

Reference: 309.409.87

Series name: V103

Rated current In (A): 25

Class: gPV

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC 22x58mm for protection of SPD with Iimp up to...

Reference: 310.865.56

Series name: SP22

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 197000

Total clearing I²t @Un AC (A²s): 430000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 4A 10x85mm

Reference: 311.354.04

Series name: G108

Power loss (W): 0,9

Rated current In (A): 4

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 30

Fuse Dimension (mm): 10x85

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 80

Total clearing I²t @Un AC (A²s): 1440

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-Full Range 80A 22x65mm surface mount,...

Reference: 316.274.93

Series name: EV65.1000

Power loss (W): 14,9

Rated current In (A): 80

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 25

Fixing connection centres (mm): 87

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 3000

Total clearing I²t @Un DC (A²s): 8750

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 1A 10x85mm in-line terminals

Reference: 321.975.48

Series name: V108

Rated current In (A): 1

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: In-line for copper cable

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 160A 38x127mm axial terminals, fixing...

Reference: 322.658.05

Series name: B200

Power loss (W): 26

Rated current In (A): 160

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 6800

Total clearing I²t @Un DC (A²s): 26000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 2A 10x85mm

Reference: 322.946.60

Series name: V108

Rated current In (A): 2

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 80A 22x65mm

Reference: 323.123.63

Series name: PV22

Power loss (W): 14,9

Rated current In (A): 80

Class: gPV

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 10

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 3000

Total clearing I²t @Un DC (A²s): 14900

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1400A 103x144mm 4x M10 flush end...

Reference: 323.237.51

Series name: B500

Power loss (W): 325

Rated current In (A): 1400

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 977000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 5390000

Minimum breaking current (A): 16000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 25A DIN000/80 with indicator and...

Reference: 324.047.75

Series name: NR2A

Power loss (W): 4,6

Rated current In (A): 25

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 55

Total clearing I²t @Un AC (A²s): 200

Total clearing I²t @Un DC (A²s): 240

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 16A 10x85mm

Reference: 328.230.50

Series name: V108

Rated current In (A): 16

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 80A size 1 53x52mm M8 flush end terminals

Reference: 328.484.93

Series name: C100

Power loss (W): 12

Rated current In (A): 80

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 185

Fixing dimensions: M8

Total clearing I²t @Un AC (A²s): 1250

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 63A DIN00/80 with indicator and...

Reference: 329.443.55

Series name: NR2B

Rated current In (A): 63

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 15A 10x38mm

Reference: 329.688.65

Series name: M100

Power loss (W): 3,05

Rated current In (A): 15

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 30

Fuse Connection/Terminal type: Cylindrical

Minimum breaking current (A): 30

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 800A 63x167mm silver plated axial...

Reference: 331.431.55

Series name: B100

Power loss (W): 150

Rated current In (A): 800

Class: aBat

Fuse Dimension (mm): 63x167

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 132,75

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 185000

Total clearing I²t @Un DC (A²s): 550000

Minimum breaking current (A): 8000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 80A DIN000/80 with indicator and...

Reference: 331.496.30

Series name: NR2A

Power loss (W): 17

Rated current In (A): 80

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 750

Total clearing I²t @Un AC (A²s): 2800

Total clearing I²t @Un DC (A²s): 3300

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 3A 10x85mm

Reference: 332.186.86

Series name: 20PV10

Power loss (W): 1,8

Rated current In (A): 3

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 5

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 900A 89x106mm 2x M12 flush end terminals

Reference: 334.701.97

Series name: B301

Power loss (W): 180

Rated current In (A): 900

Class: aBat

Fuse Dimension (mm): 86x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 233900

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 814000

Minimum breaking current (A): 7200

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 125A 22x65mm surface mount, fixing...

Reference: 334.771.49

Series name: DC22

Power loss (W): 29,5

Rated current In (A): 125

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 87

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 3550

Total clearing I²t @Un DC (A²s): 15600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 1100A 63x167mm tin plated axial...

Reference: 337.617.32

Series name: B100

Power loss (W): 180

Rated current In (A): 1100

Class: aBat

Fuse Dimension (mm): 63x167

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 132,75

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 508000

Total clearing I²t @Un DC (A²s): 1620000

Minimum breaking current (A): 11000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 250A 50x140mm M8 flush end terminals

Reference: 338.784.83

Series name: BPF1

Power loss (W): 47,5

Rated current In (A): 250

Class: aBat

Fuse Dimension (mm): 50x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 22300

Fixing dimensions: M8

Total clearing I²t @Un DC (A²s): 78050

Minimum breaking current (A): 2500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 100A 38x127mm surface mount, fixing...

Reference: 343.173.19

Series name: B200

Power loss (W): 17

Rated current In (A): 100

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Total clearing I²t @Un DC (A²s): 7800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 800A 103x144mm 4x M10 flush end...

Reference: 345.879.76

Series name: B500

Power loss (W): 213

Rated current In (A): 800

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 272000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 1452000

Minimum breaking current (A): 9000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 350A 50x129mm silver plated axial...

Reference: 346.112.03

Series name: B050

Power loss (W): 48

Rated current In (A): 350

Class: aBat

Fuse Dimension (mm): 50x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 33600

Total clearing I²t @Un DC (A²s): 88000

Minimum breaking current (A): 3500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 20A 22x65mm

Reference: 349.165.25

Series name: X800

Rated current In (A): 20

Class: gG

Fuse Dimension (mm): 22x65

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 25A DIN00/80 with indicator and...

Reference: 352.831.93

Series name: NR2B

Rated current In (A): 25

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 40A 22x65mm

Reference: 354.281.83

Series name: X800

Rated current In (A): 40

Class: gG

Fuse Dimension (mm): 22x65

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 800A 63x106mm 2x M12 flush end...

Reference: 354.675.90

Series name: B100

Power loss (W): 150

Rated current In (A): 800

Class: aBat

Fuse Dimension (mm): 63x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 185000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 550000

Minimum breaking current (A): 8000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 32A 22x58mm

Reference: 355.124.10

Series name: UR22

Power loss (W): 9

Rated current In (A): 32

Class: aR

Rated Voltage Un AC (V): 550

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 65

Total clearing I²t @Un AC (A²s): 330

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 15A 14x85mm

Reference: 355.645.52

Series name: 20PV14

Power loss (W): 4,8

Rated current In (A): 15

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 38

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 20A 22x58mm surface mount,...

Reference: 356.896.34

Series name: UR22

Power loss (W): 6,1

Rated current In (A): 20

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 21

Total clearing I²t @Un AC (A²s): 96

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 100A 38x127mm axial terminals, fixing...

Reference: 358.375.52

Series name: B200

Power loss (W): 17

Rated current In (A): 100

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2050

Total clearing I²t @Un DC (A²s): 7800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 40A 22x65mm

Reference: 360.932.23

Series name: VP22

Rated current In (A): 40

Class: gPV

Rated Voltage Un AC (V): 800

Rated Voltage Un DC (V): 1500

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 150A 22x58mm with pins for...

Reference: 361.190.77

Series name: UR22

Power loss (W): 31,9

Rated current In (A): 150

Class: aR

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 4850

Total clearing I²t @Un AC (A²s): 23500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 700A 76x140mm M12 flush end terminals

Reference: 362.785.61

Series name: BPF3

Power loss (W): 170

Rated current In (A): 700

Class: aBat

Fuse Dimension (mm): 76x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 215000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1225500

Minimum breaking current (A): 7000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 160A 38x127mm surface mount, fixing...

Reference: 363.540.92

Series name: B200

Power loss (W): 26

Rated current In (A): 160

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 6800

Total clearing I²t @Un DC (A²s): 26000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 800A 63x203mm silver plated axial...

Reference: 365.771.61

Series name: B100

Power loss (W): 150

Rated current In (A): 800

Class: aBat

Fuse Dimension (mm): 63x203

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 152,7

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 185000

Total clearing I²t @Un DC (A²s): 550000

Minimum breaking current (A): 8000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse BS 690VAC/500VDC aR 80A 17x77mm fixing centres 63mm

Reference: 366.116.92

Series name: 69E1

Power loss (W): 22

Rated current In (A): 80

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 17x77

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 63,5

Melting I²t value (A²s): 566

Total clearing I²t @Un AC (A²s): 2546

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VDC EV-full range 20A 10x38mm surface mount,...

Reference: 366.356.33

Series name: M050

Power loss (W): 6,8

Rated current In (A): 20

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 53,5

Fuse Connection/Terminal type: Screw fixing

Minimum breaking current (A): 40

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 180A DIN000/80 with indicator and...

Reference: 367.466.71

Series name: NR2A

Power loss (W): 42,5

Rated current In (A): 180

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 4120

Total clearing I²t @Un AC (A²s): 15100

Total clearing I²t @Un DC (A²s): 18000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 350A 50x140mm M8 flush end terminals

Reference: 369.817.45

Series name: BPF1

Power loss (W): 64

Rated current In (A): 350

Class: aBat

Fuse Dimension (mm): 50x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 50200

Fixing dimensions: M8

Total clearing I²t @Un DC (A²s): 175700

Minimum breaking current (A): 3500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 450A 50x140mm M8 flush end terminals

Reference: 370.113.25

Series name: BPF1

Power loss (W): 74,5

Rated current In (A): 450

Class: aBat

Fuse Dimension (mm): 50x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 110650

Fixing dimensions: M8

Total clearing I²t @Un DC (A²s): 387300

Minimum breaking current (A): 4500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1600A 103x144mm 4x M10 flush end...

Reference: 372.494.14

Series name: B500

Power loss (W): 390

Rated current In (A): 1600

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1300600

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 7100000

Minimum breaking current (A): 18000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 40A DIN000/80 with indicator and...

Reference: 373.304.38

Series name: NR2A

Power loss (W): 7,2

Rated current In (A): 40

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 230

Total clearing I²t @Un AC (A²s): 840

Total clearing I²t @Un DC (A²s): 1000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 900A 63x167mm silver plated axial...

Reference: 374.004.92

Series name: B100

Power loss (W): 170

Rated current In (A): 900

Class: aBat

Fuse Dimension (mm): 63x167

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 132,75

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 267000

Total clearing I²t @Un DC (A²s): 813000

Minimum breaking current (A): 9000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 1000A 63x203mm tin plated axial...

Reference: 374.723.64

Series name: B100

Power loss (W): 175

Rated current In (A): 1000

Class: aBat

Fuse Dimension (mm): 63x203

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 152,7

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 373500

Total clearing I²t @Un DC (A²s): 1095000

Minimum breaking current (A): 10000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 500A 50x215mm axial terminals, fixing...

Reference: 374.951.63

Series name: BPF1

Power loss (W): 87

Rated current In (A): 500

Class: aBat

Fuse Dimension (mm): 50x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 168,65

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 134400

Total clearing I²t @Un DC (A²s): 470400

Minimum breaking current (A): 5000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 400A 50x129mm tin plated axial...

Reference: 376.618.78

Series name: B050

Power loss (W): 55

Rated current In (A): 400

Class: aBat, aR

Fuse Dimension (mm): 50x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 44300

Total clearing I²t @Un DC (A²s): 115500

Minimum breaking current (A): 4000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 8A 10x38mm surface mount,...

Reference: 376.956.63

Series name: M100

Power loss (W): 1,05

Rated current In (A): 8

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 53

Fuse Connection/Terminal type: Screw fixing

Minimum breaking current (A): 16

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 700A 76x215mm axial terminals, fixing...

Reference: 380.116.54

Series name: BPF3

Power loss (W): 170

Rated current In (A): 700

Class: aBat

Fuse Dimension (mm): 76x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 171,5

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 215000

Total clearing I²t @Un DC (A²s): 1225500

Minimum breaking current (A): 7000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 40A 22x85mm in-line aluminum terminals 6AWG

Reference: 380.581.64

Series name: 20PV22

Power loss (W): 11,3

Rated current In (A): 40

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 415

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 450A 76x269mm axial terminals fixing...

Reference: 380.994.11

Series name: 20PV3

Power loss (W): 86,5

Rated current In (A): 450

Class: gPV

Fuse Dimension (mm): 76x269

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 182900

Minimum breaking current (A): 900

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 160A DIN00/80 with indicator and...

Reference: 382.074.88

Series name: NR2B

Rated current In (A): 160

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 450A 50x129mm silver plated axial...

Reference: 382.300.08

Series name: B050

Power loss (W): 60

Rated current In (A): 450

Class: aBat, aR

Fuse Dimension (mm): 50x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 62000

Total clearing I²t @Un DC (A²s): 162000

Minimum breaking current (A): 4500

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1500VDC EV-Full Range 60A 22x65mm

Reference: 384.236.42

Series name: EV65.1500

Power loss (W): 12

Rated current In (A): 60

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 25

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1220

Total clearing I²t @Un DC (A²s): 7500

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 50A 22x58mm

Reference: 384.770.34

Series name: UR22

Power loss (W): 13,3

Rated current In (A): 50

Class: aR

Rated Voltage Un AC (V): 550

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 195

Total clearing I²t @Un AC (A²s): 955

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 63A DIN000/80 with indicator and...

Reference: 385.249.54

Series name: NR2A

Power loss (W): 9,5

Rated current In (A): 63

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 520

Total clearing I²t @Un AC (A²s): 1900

Total clearing I²t @Un DC (A²s): 2260

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 300A 50x129mm tin plated axial...

Reference: 387.422.61

Series name: B050

Power loss (W): 42

Rated current In (A): 300

Class: aBat, aR

Fuse Dimension (mm): 50x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 22300

Total clearing I²t @Un DC (A²s): 58000

Minimum breaking current (A): 3000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 40A 22x65mm surface mount, fixing...

Reference: 390.020.12

Series name: DC22

Power loss (W): 8,8

Rated current In (A): 40

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 87

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 255

Total clearing I²t @Un DC (A²s): 1150

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 690VAC/500VDC aR 100A 17x77mm fixing centres 63mm

Reference: 392.742.56

Series name: 69E1

Power loss (W): 28,5

Rated current In (A): 100

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 17x77

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 63,5

Melting I²t value (A²s): 813

Total clearing I²t @Un AC (A²s): 3173

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 63A 22x58mm

Reference: 394.522.47

Series name: UR22

Power loss (W): 13,4

Rated current In (A): 63

Class: aR

Rated Voltage Un AC (V): 550

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 540

Total clearing I²t @Un AC (A²s): 2370

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1800A 103x144mm 4x M10 flush end...

Reference: 395.882.51

Series name: B500

Power loss (W): 430

Rated current In (A): 1800

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1615000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 8720000

Minimum breaking current (A): 19800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 50A 22x65mm surface mount, fixing...

Reference: 396.327.33

Series name: DC22

Power loss (W): 11,8

Rated current In (A): 50

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 87

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 380

Total clearing I²t @Un DC (A²s): 1710

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 100A 22x65mm surface mount, fixing...

Reference: 398.993.93

Series name: DC22

Power loss (W): 22,8

Rated current In (A): 100

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 87

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2100

Total clearing I²t @Un DC (A²s): 9250

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 25A 22x58mm

Reference: 399.213.34

Series name: UR22

Power loss (W): 7,6

Rated current In (A): 25

Class: aR

Rated Voltage Un AC (V): 550

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 33

Total clearing I²t @Un AC (A²s): 147

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VAC gG 6A 22x65mm

Reference: 399.505.59

Series name: X100

Rated current In (A): 6

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC 22x58mm for protection of SPD with Iimp up to...

Reference: 399.978.41

Series name: SP22

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 197000

Total clearing I²t @Un AC (A²s): 430000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 1800A 103x106mm 4x M10 flush end terminals

Reference: 404.300.20

Series name: B400

Power loss (W): 298

Rated current In (A): 1800

Class: aBat

Fuse Dimension (mm): 103x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1493000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 4480000

Minimum breaking current (A): 18000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 250A 50x129mm tin plated axial...

Reference: 405.911.03

Series name: B050

Power loss (W): 36

Rated current In (A): 250

Class: aBat, aR

Fuse Dimension (mm): 50x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 15000

Total clearing I²t @Un DC (A²s): 40000

Minimum breaking current (A): 2500

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 1600A 2x63x106mm double bodies 2x M12...

Reference: 407.568.47

Series name: B100

Power loss (W): 315

Rated current In (A): 1600

Class: aBat

Fuse Dimension (mm): 63x130

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 740000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 2200000

Minimum breaking current (A): 16000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 25A 22x65mm surface mount, fixing...

Reference: 409.364.53

Series name: DC22

Power loss (W): 4,9

Rated current In (A): 25

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 87

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 95

Total clearing I²t @Un DC (A²s): 430

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 800A 76x140mm M12 flush end terminals

Reference: 412.662.20

Series name: BPF3

Power loss (W): 190

Rated current In (A): 800

Class: aBat

Fuse Dimension (mm): 76x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 320000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1825000

Minimum breaking current (A): 8000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 4A 22x65mm

Reference: 413.870.21

Series name: X800

Rated current In (A): 4

Class: gG

Fuse Dimension (mm): 22x65

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 100A 22x65mm

Reference: 415.002.48

Series name: DC22

Power loss (W): 22,8

Rated current In (A): 100

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2100

Total clearing I²t @Un DC (A²s): 9250

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 500A 50x129mm silver plated axial...

Reference: 424.266.51

Series name: B050

Power loss (W): 66

Rated current In (A): 500

Class: aBat, aR

Fuse Dimension (mm): 50x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 78500

Total clearing I²t @Un DC (A²s): 204000

Minimum breaking current (A): 5000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC gBat 20A 22x65mm

Reference: 424.889.96

Series name: BP22

Power loss (W): 4,3

Rated current In (A): 20

Class: gBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 53

Minimum breaking current (A): 40

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 2000A 103x106mm 2x M12 flush end terminals

Reference: 427.856.27

Series name: B400

Power loss (W): 322

Rated current In (A): 2000

Class: aBat

Fuse Dimension (mm): 103x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2150000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 6450000

Minimum breaking current (A): 20000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 630A 63x167mm tin plated axial...

Reference: 428.074.55

Series name: B100

Power loss (W): 120

Rated current In (A): 630

Class: aBat

Fuse Dimension (mm): 63x167

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 132,75

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 108000

Total clearing I²t @Un DC (A²s): 324000

Minimum breaking current (A): 6300

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 690VAC aR 50A 14x51mm

Reference: 428.327.05

Series name: A145

Power loss (W): 13

Rated current In (A): 50

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 14x51

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 277

Total clearing I²t @Un AC (A²s): 1990

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 240VAC/150VDC aR 125A 17x56mm fixing centres 42mm

Reference: 431.404.30

Series name: 24E1

Power loss (W): 15,6

Rated current In (A): 125

Class: aR

Rated Voltage Un AC (V): 240

Rated breaking capacity I1 AC (kA): 100

Rated Voltage Un DC (V): 150

Rated breaking capacity I1 DC (kA): 20

Melting I²t value (A²s): 693

Total clearing I²t @Un AC (A²s): 6430

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 240VAC/150VDC aR 12A 17x56mm fixing centres 42mm

Reference: 433.865.33

Series name: 24E1

Power loss (W): 2,5

Rated current In (A): 12

Class: aR

Rated Voltage Un AC (V): 240

Rated breaking capacity I1 AC (kA): 100

Rated Voltage Un DC (V): 150

Rated breaking capacity I1 DC (kA): 20

Melting I²t value (A²s): 6,4

Total clearing I²t @Un AC (A²s): 24

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gPV 8A 10x38mm

Reference: 436.063.08

Series name: V103

Rated current In (A): 8

Class: gPV

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 160A DIN000/80 with indicator and...

Reference: 436.100.15

Series name: NR2A

Power loss (W): 37,5

Rated current In (A): 160

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 3020

Total clearing I²t @Un AC (A²s): 11100

Total clearing I²t @Un DC (A²s): 13200

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gPV 3A 10x38mm

Reference: 437.204.41

Series name: V103

Rated current In (A): 3

Class: gPV

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 75A 27x85mm in-line terminal for copper...

Reference: 438.193.02

Series name: 20PV27

Power loss (W): 19,7

Rated current In (A): 75

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1900

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VDC aBat 63A 38x109mm fixing centres 80mm

Reference: 438.828.81

Series name: T500

Power loss (W): 6

Rated current In (A): 63

Class: aBat

Fuse Dimension (mm): 38x109

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 80,35

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 740

Total clearing I²t @Un DC (A²s): 1150

Minimum breaking current (A): 630

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 2000A 103x144mm 2x M12 flush end...

Reference: 439.181.95

Series name: B500

Power loss (W): 445

Rated current In (A): 2000

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2798000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 13650000

Minimum breaking current (A): 25000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 50A 22x85mm in-line aluminum terminals 6AWG

Reference: 442.354.09

Series name: 20PV22

Power loss (W): 12,7

Rated current In (A): 50

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 815

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gPV 20A 10x38mm

Reference: 442.488.31

Series name: V103

Rated current In (A): 20

Class: gPV

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1100A 103x144mm 2x M12 flush end...

Reference: 443.411.69

Series name: B500

Power loss (W): 290

Rated current In (A): 1100

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 498000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 2761000

Minimum breaking current (A): 12000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 240VAC/150VDC aR 25A 17x56mm fixing centres 42mm

Reference: 445.514.11

Series name: 24E1

Power loss (W): 4,2

Rated current In (A): 25

Class: aR

Rated Voltage Un AC (V): 240

Rated breaking capacity I1 AC (kA): 100

Rated Voltage Un DC (V): 150

Rated breaking capacity I1 DC (kA): 20

Melting I²t value (A²s): 34,3

Total clearing I²t @Un AC (A²s): 188

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-Full Range 25A 22x65mm

Reference: 449.320.75

Series name: EV65.1000

Power loss (W): 6,5

Rated current In (A): 25

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 25

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 130

Total clearing I²t @Un DC (A²s): 650

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 500VDC aBat 80A 38x109mm fixing centres 80mm

Reference: 449.701.36

Series name: T500

Power loss (W): 7,5

Rated current In (A): 80

Class: aBat

Fuse Dimension (mm): 38x109

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 80,35

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1300

Total clearing I²t @Un DC (A²s): 2000

Minimum breaking current (A): 800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC EV-Full Range 30A 22x65mm

Reference: 449.934.82

Series name: EV65.1500

Power loss (W): 7

Rated current In (A): 30

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 25

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 230

Total clearing I²t @Un DC (A²s): 1800

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 30A 10x85mm in-line terminals

Reference: 451.945.62

Series name: V108

Rated current In (A): 30

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: In-line for copper cable

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 15A 10x38mm surface mount, fixing...

Reference: 452.763.64

Series name: E103

Power loss (W): 3,4

Rated current In (A): 15

Class: aBat

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Fixing connection centres (mm): 52

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 22

Total clearing I²t @Un DC (A²s): 215

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 100A 38x129mm tin plated axial...

Reference: 453.311.13

Series name: B025

Power loss (W): 15,5

Rated current In (A): 100

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2100

Total clearing I²t @Un DC (A²s): 4700

Minimum breaking current (A): 800

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 30A 14x85mm in-line terminals

Reference: 456.321.91

Series name: 20PV14

Power loss (W): 8,8

Rated current In (A): 30

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 185

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 900A 63x203mm silver plated axial...

Reference: 456.383.65

Series name: B100

Power loss (W): 170

Rated current In (A): 900

Class: aBat

Fuse Dimension (mm): 63x203

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 152,7

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 267000

Total clearing I²t @Un DC (A²s): 813000

Minimum breaking current (A): 9000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 200A DIN00/80 with indicator and...

Reference: 456.865.11

Series name: NR2B

Rated current In (A): 250

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 750A 63x203mm silver plated axial...

Reference: 456.954.32

Series name: B100

Power loss (W): 140

Rated current In (A): 750

Class: aBat

Fuse Dimension (mm): 63x203

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 152,7

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 166000

Total clearing I²t @Un DC (A²s): 500000

Minimum breaking current (A): 7500

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 200A DIN000/80 without indicator...

Reference: 456.980.23

Series name: NR2A

Power loss (W): 48,5

Rated current In (A): 250

Class: aR

Indicator: No

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 5370

Total clearing I²t @Un AC (A²s): 19600

Total clearing I²t @Un DC (A²s): 23400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 1000A 63x167mm tin plated axial...

Reference: 459.971.59

Series name: B100

Power loss (W): 175

Rated current In (A): 1000

Class: aBat

Fuse Dimension (mm): 63x167

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 132,75

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 373500

Total clearing I²t @Un DC (A²s): 1095000

Minimum breaking current (A): 10000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 300A 38x129mm silver plated axial...

Reference: 460.577.02

Series name: B025

Power loss (W): 47

Rated current In (A): 300

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 23300

Total clearing I²t @Un DC (A²s): 51000

Minimum breaking current (A): 2400

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 500VDC EV-full range 30A 10x38mm surface mount,...

Reference: 462.841.77

Series name: M050

Power loss (W): 4,9

Rated current In (A): 30

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 53,5

Fuse Connection/Terminal type: Screw fixing

Minimum breaking current (A): 60

Available

3D Datasheet

Compare

Fuse 1500VDC EV-Full Range 70A 22x65mm

Reference: 463.473.97

Series name: EV65.1500

Power loss (W): 13

Rated current In (A): 70

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 25

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2010

Total clearing I²t @Un DC (A²s): 10500

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 20A 14x85mm

Reference: 465.503.38

Series name: 20PV14

Power loss (W): 6,4

Rated current In (A): 20

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 67

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 6A 10x38mm surface mount, fixing...

Reference: 466.184.77

Series name: E103

Power loss (W): 1,9

Rated current In (A): 6

Class: aBat

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Fixing connection centres (mm): 52

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2

Total clearing I²t @Un DC (A²s): 9

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 240VAC/150VDC aR 100A 17x56mm fixing centres 42mm

Reference: 468.548.44

Series name: 24E1

Power loss (W): 15,5

Rated current In (A): 100

Class: aR

Rated Voltage Un AC (V): 240

Rated breaking capacity I1 AC (kA): 100

Rated Voltage Un DC (V): 150

Rated breaking capacity I1 DC (kA): 20

Melting I²t value (A²s): 546

Total clearing I²t @Un AC (A²s): 3950

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 100A DIN000/80 without indicator...

Reference: 471.346.95

Series name: NR2A

Power loss (W): 19

Rated current In (A): 100

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1340

Total clearing I²t @Un AC (A²s): 5000

Total clearing I²t @Un DC (A²s): 5850

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 25A DIN000/80 with indicator and...

Reference: 474.918.90

Series name: NR2A

Power loss (W): 4,6

Rated current In (A): 25

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 55

Total clearing I²t @Un AC (A²s): 200

Total clearing I²t @Un DC (A²s): 240

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VDC EV-full range 30A 10x38mm

Reference: 477.906.77

Series name: M050

Power loss (W): 4,9

Rated current In (A): 30

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 30

Fuse Connection/Terminal type: Cylindrical

Minimum breaking current (A): 60

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 200A DIN000/80 with indicator and...

Reference: 480.504.71

Series name: NR2A

Power loss (W): 48,5

Rated current In (A): 250

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 5370

Total clearing I²t @Un AC (A²s): 19600

Total clearing I²t @Un DC (A²s): 23400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 16A 22x58mm surface mount,...

Reference: 481.114.32

Series name: UR22

Power loss (W): 5,1

Rated current In (A): 16

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 12,5

Total clearing I²t @Un AC (A²s): 56

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 5A 10x85mm

Reference: 481.589.02

Series name: V108

Rated current In (A): 5

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 1500A 2x63x106mm double bodies 2x M12...

Reference: 484.188.72

Series name: B100

Power loss (W): 294

Rated current In (A): 1500

Class: aBat

Fuse Dimension (mm): 63x130

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 664000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 2000000

Minimum breaking current (A): 15000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1250A 103x144mm 2x M12 flush end...

Reference: 484.196.45

Series name: B500

Power loss (W): 300

Rated current In (A): 1250

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 718000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 3912000

Minimum breaking current (A): 14000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 30A 10x38mm

Reference: 485.497.16

Series name: M100

Power loss (W): 6

Rated current In (A): 30

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 30

Fuse Connection/Terminal type: Cylindrical

Minimum breaking current (A): 60

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 80A 22x58mm

Reference: 487.974.34

Series name: UR22

Power loss (W): 16,3

Rated current In (A): 80

Class: aR

Rated Voltage Un AC (V): 550

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1055

Total clearing I²t @Un AC (A²s): 4620

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 30A 10x38mm surface mount, fixing...

Reference: 487.979.16

Series name: E103

Power loss (W): 4,1

Rated current In (A): 30

Class: aBat

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Fixing connection centres (mm): 52

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 122

Total clearing I²t @Un DC (A²s): 1390

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 900A size 2 61x50mm M10 flush end terminals

Reference: 489.764.23

Series name: C200

Power loss (W): 100

Rated current In (A): 900

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 61x50

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 170000

Total clearing I²t @Un AC (A²s): 935000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC EV-Full Range 40A 22x65mm

Reference: 490.719.58

Series name: EV65.1500

Power loss (W): 9

Rated current In (A): 40

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 25

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 425

Total clearing I²t @Un DC (A²s): 3500

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 20A 10x85mm in-line terminals

Reference: 494.039.03

Series name: V108

Rated current In (A): 20

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: In-line for copper cable

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 240VAC/150VDC aR 16A 17x56mm fixing centres 42mm

Reference: 494.447.15

Series name: 24E1

Power loss (W): 2,9

Rated current In (A): 16

Class: aR

Rated Voltage Un AC (V): 240

Rated breaking capacity I1 AC (kA): 100

Rated Voltage Un DC (V): 150

Rated breaking capacity I1 DC (kA): 20

Melting I²t value (A²s): 22,5

Total clearing I²t @Un AC (A²s): 78

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gPV 16A 10x38mm

Reference: 495.336.25

Series name: V103

Rated current In (A): 16

Class: gPV

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 150A 22x58mm

Reference: 498.425.72

Series name: UR22

Power loss (W): 31,9

Rated current In (A): 150

Class: aR

Rated Voltage Un AC (V): 550

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 4850

Total clearing I²t @Un AC (A²s): 23500

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 125A 38x129mm tin plated axial...

Reference: 499.212.47

Series name: B025

Power loss (W): 19

Rated current In (A): 125

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 3500

Total clearing I²t @Un DC (A²s): 8000

Minimum breaking current (A): 1000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse BS 240VAC/150VDC aR 50A 17x56mm fixing centres 42mm

Reference: 501.146.66

Series name: 24E1

Power loss (W): 8,2

Rated current In (A): 50

Class: aR

Rated Voltage Un AC (V): 240

Rated breaking capacity I1 AC (kA): 100

Rated Voltage Un DC (V): 150

Rated breaking capacity I1 DC (kA): 20

Melting I²t value (A²s): 89

Total clearing I²t @Un AC (A²s): 1180

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 32A 10x85mm in-line terminals

Reference: 501.152.94

Series name: V108

Rated current In (A): 32

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: In-line for copper cable

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gPV 15A 10x38mm

Reference: 501.308.83

Series name: V103

Rated current In (A): 15

Class: gPV

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 25A 22x58mm surface mount,...

Reference: 501.647.06

Series name: UR22

Power loss (W): 7,6

Rated current In (A): 25

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 33

Total clearing I²t @Un AC (A²s): 147

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 600A 63x167mm silver plated axial...

Reference: 501.997.14

Series name: B100

Power loss (W): 115

Rated current In (A): 1100

Class: aBat

Fuse Dimension (mm): 63x167

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 132,75

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 93300

Total clearing I²t @Un DC (A²s): 281000

Minimum breaking current (A): 6000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 10A 10x38mm surface mount,...

Reference: 502.479.45

Series name: M100

Power loss (W): 1,55

Rated current In (A): 10

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 53

Fuse Connection/Terminal type: Screw fixing

Minimum breaking current (A): 20

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VAC gG 2A 22x65mm

Reference: 504.060.13

Series name: X100

Rated current In (A): 2

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 350A 50x215mm axial terminals, fixing...

Reference: 504.960.60

Series name: BPF1

Power loss (W): 64

Rated current In (A): 350

Class: aBat

Fuse Dimension (mm): 50x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 168,65

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 50200

Total clearing I²t @Un DC (A²s): 175700

Minimum breaking current (A): 3500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 25A DIN00/80 with indicator and...

Reference: 509.191.68

Series name: NR2B

Rated current In (A): 25

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gPV 2A 10x38mm

Reference: 511.778.03

Series name: V103

Rated current In (A): 2

Class: gPV

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gBat 25A 22x65mm

Reference: 512.666.59

Series name: BP22

Power loss (W): 5,2

Rated current In (A): 25

Class: gBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 90

Minimum breaking current (A): 50

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 20A 22x65mm surface mount, fixing...

Reference: 518.297.67

Series name: DC22

Power loss (W): 4,4

Rated current In (A): 20

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 87

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 48

Total clearing I²t @Un DC (A²s): 220

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 65A 22x85mm in-line aluminum terminals 6AWG

Reference: 518.974.34

Series name: 20PV22

Power loss (W): 15,4

Rated current In (A): 65

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1660

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 100A 22x58mm with pins for...

Reference: 518.975.84

Series name: UR22

Power loss (W): 19,1

Rated current In (A): 100

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2150

Total clearing I²t @Un AC (A²s): 9345

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 690VAC/500VDC aR 50A 17x77mm fixing centres 63mm

Reference: 519.190.10

Series name: 69E1

Power loss (W): 14

Rated current In (A): 50

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 17x77

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 63,5

Melting I²t value (A²s): 203

Total clearing I²t @Un AC (A²s): 793

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 500A 2x38x127mm fixing centres 99mm

Reference: 519.586.15

Series name: B200

Power loss (W): 78

Rated current In (A): 500

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 84000

Total clearing I²t @Un DC (A²s): 319000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1100A 103x144mm 4x M10 flush end...

Reference: 523.117.34

Series name: B500

Power loss (W): 290

Rated current In (A): 1100

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 498000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 2761000

Minimum breaking current (A): 12000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 1800A 2x63x106mm double bodies 2x M12...

Reference: 525.258.81

Series name: B100

Power loss (W): 357

Rated current In (A): 1800

Class: aBat

Fuse Dimension (mm): 63x130

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1068000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 3252000

Minimum breaking current (A): 18000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 32A 22x65mm

Reference: 525.272.76

Series name: X800

Rated current In (A): 32

Class: gG

Fuse Dimension (mm): 22x65

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 400A DIN00/80 with indicator and without...

Reference: 531.773.36

Series name: NR2B

Rated current In (A): 400

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 400A 50x123mm axial terminals,...

Reference: 534.655.13

Series name: Z050A

Rated current In (A): 400

Class: EV Fuse – Full range

Rated Voltage Un DC (V): 1000

Time costant L/R (ms): 2,5

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 300A 38x127mm surface mount, fixing...

Reference: 534.886.60

Series name: B200

Power loss (W): 43

Rated current In (A): 300

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 37500

Total clearing I²t @Un DC (A²s): 145000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 1100A 63x106mm 2x M12 flush end...

Reference: 535.280.03

Series name: B100

Power loss (W): 180

Rated current In (A): 1100

Class: aBat

Fuse Dimension (mm): 63x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 508000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1620000

Minimum breaking current (A): 11000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 690VAC aR 125A size 1 53x52mm M8 flush end terminals

Reference: 535.764.00

Series name: C100

Power loss (W): 19

Rated current In (A): 125

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 550

Fixing dimensions: M8

Total clearing I²t @Un AC (A²s): 3700

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 1500A 103x106mm 4x M10 flush end terminals

Reference: 536.862.15

Series name: B400

Power loss (W): 275

Rated current In (A): 1500

Class: aBat

Fuse Dimension (mm): 103x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 731600

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 2195000

Minimum breaking current (A): 15000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VDC aBat 400A 38x109mm fixing centres 80mm

Reference: 537.194.16

Series name: T500

Power loss (W): 50

Rated current In (A): 400

Class: aBat

Fuse Dimension (mm): 38x109

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 80,35

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 45750

Total clearing I²t @Un DC (A²s): 68000

Minimum breaking current (A): 4000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 8A 10x85mm in-line terminals

Reference: 538.671.25

Series name: 20PV10

Power loss (W): 2,4

Rated current In (A): 8

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 193

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 400A size 1 53x52mm M8 flush end terminals

Reference: 544.521.20

Series name: C100

Power loss (W): 61

Rated current In (A): 400

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 14000

Fixing dimensions: M8

Total clearing I²t @Un AC (A²s): 100000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 63A 38x127mm axial terminals, fixing...

Reference: 545.739.52

Series name: B200

Power loss (W): 11

Rated current In (A): 63

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 750

Total clearing I²t @Un DC (A²s): 2850

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VDC EV-full range 15A 10x38mm

Reference: 548.582.23

Series name: M050

Power loss (W): 5,2

Rated current In (A): 15

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 30

Fuse Connection/Terminal type: Cylindrical

Minimum breaking current (A): 30

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1000A 103x144mm 4x M10 flush end...

Reference: 548.650.95

Series name: B500

Power loss (W): 260

Rated current In (A): 1000

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 404000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 2210000

Minimum breaking current (A): 11000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 300A 50x141mm silver plated axial...

Reference: 549.374.02

Series name: B050

Power loss (W): 42

Rated current In (A): 300

Class: aBat, aR

Fuse Dimension (mm): 50x141

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 22300

Total clearing I²t @Un DC (A²s): 58000

Minimum breaking current (A): 3000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 500VAC aR 400A DIN000/80 with indicator and with lug...

Reference: 550.216.44

Series name: NR2A

Power loss (W): 93,5

Rated current In (A): 400

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 200

Fuse size: NH000

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 33600

Total clearing I²t @Un AC (A²s): 145000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 6A 10x85mm

Reference: 550.375.82

Series name: 20PV10

Power loss (W): 2,1

Rated current In (A): 6

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 79

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 1250A 2x63x106mm double bodies 2x M12...

Reference: 553.360.42

Series name: B100

Power loss (W): 252

Rated current In (A): 1250

Class: aBat

Fuse Dimension (mm): 63x130

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 432000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1296000

Minimum breaking current (A): 12600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 75A 22x65mm

Reference: 554.542.31

Series name: PV22

Power loss (W): 13,5

Rated current In (A): 75

Class: gPV

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 10

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2480

Total clearing I²t @Un DC (A²s): 12500

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 63A DIN00/80 with indicator and...

Reference: 555.565.09

Series name: NR2B

Rated current In (A): 63

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 100A 38x129mm silver plated axial...

Reference: 556.611.90

Series name: B025

Power loss (W): 15,5

Rated current In (A): 100

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2100

Total clearing I²t @Un DC (A²s): 4700

Minimum breaking current (A): 800

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 16A 22x58mm

Reference: 556.714.47

Series name: UR22

Power loss (W): 5,1

Rated current In (A): 16

Class: aR

Rated Voltage Un AC (V): 550

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 12,5

Total clearing I²t @Un AC (A²s): 56

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1400A 76x215mm axial terminals, fixing...

Reference: 563.269.25

Series name: BPF3

Power loss (W): 290

Rated current In (A): 1400

Class: aBat

Fuse Dimension (mm): 76x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 171,5

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1350000

Total clearing I²t @Un DC (A²s): 7695000

Minimum breaking current (A): 19600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 100A DIN000/80 with indicator and...

Reference: 563.521.70

Series name: NR2A

Power loss (W): 19

Rated current In (A): 100

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1340

Total clearing I²t @Un AC (A²s): 5000

Total clearing I²t @Un DC (A²s): 5850

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 2000A 103x106mm 4x M10 flush end terminals

Reference: 563.710.48

Series name: B400

Power loss (W): 322

Rated current In (A): 2000

Class: aBat

Fuse Dimension (mm): 103x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2150000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 6450000

Minimum breaking current (A): 20000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 350A DIN00/80 with indicator and without...

Reference: 564.272.99

Series name: NR2B

Rated current In (A): 350

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 1100A 63x203mm silver plated axial...

Reference: 566.054.78

Series name: B100

Power loss (W): 180

Rated current In (A): 1100

Class: aBat

Fuse Dimension (mm): 63x203

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 152,7

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 508000

Total clearing I²t @Un DC (A²s): 1620000

Minimum breaking current (A): 11000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 25A 22x65mm

Reference: 568.895.42

Series name: PV22

Power loss (W): 6,5

Rated current In (A): 25

Fuse Dimension (mm): 22x65

Rated breaking capacity I1 DC (kA): 10

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 130

Total clearing I²t @Un DC (A²s): 1400

Available

Datasheet

Compare

Fuse 1500VDC aBat 630A 103x144mm 2x M12 flush end...

Reference: 570.142.90

Series name: B500

Power loss (W): 170

Rated current In (A): 630

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 145000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 772800

Minimum breaking current (A): 6900

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 800A 76x215mm axial terminals, fixing...

Reference: 571.524.50

Series name: BPF3

Power loss (W): 190

Rated current In (A): 800

Class: aBat

Fuse Dimension (mm): 76x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 171,5

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 320000

Total clearing I²t @Un DC (A²s): 1825000

Minimum breaking current (A): 8000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC EV-Full Range 70A 22x65mm surface mount,...

Reference: 571.669.13

Series name: EV65.1500

Power loss (W): 13

Rated current In (A): 70

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 25

Fixing connection centres (mm): 87

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2010

Total clearing I²t @Un DC (A²s): 10500

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 1000A 63x106mm 2x M12 flush end...

Reference: 572.424.17

Series name: B100

Power loss (W): 175

Rated current In (A): 1000

Class: aBat

Fuse Dimension (mm): 63x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 373500

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1095000

Minimum breaking current (A): 10000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 500A 76x269mm axial terminals fixing...

Reference: 577.282.62

Series name: 20PV3

Power loss (W): 88

Rated current In (A): 500

Class: gPV

Fuse Dimension (mm): 76x269

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 294920

Minimum breaking current (A): 1000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 800A 89x106mm 2x M12 flush end terminals

Reference: 577.531.20

Series name: B301

Power loss (W): 170

Rated current In (A): 800

Class: aBat

Fuse Dimension (mm): 86x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 149700

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 520000

Minimum breaking current (A): 6400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 750A 63x203mm tin plated axial...

Reference: 584.668.83

Series name: B100

Power loss (W): 140

Rated current In (A): 750

Class: aBat

Fuse Dimension (mm): 63x203

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 152,7

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 166000

Total clearing I²t @Un DC (A²s): 500000

Minimum breaking current (A): 7500

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC EV-Full Range 80A 22x65mm

Reference: 587.419.17

Series name: EV65.1000

Power loss (W): 14,9

Rated current In (A): 80

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 25

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 3000

Total clearing I²t @Un DC (A²s): 8750

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 200A 76x269mm axial terminals fixing...

Reference: 588.833.39

Series name: 20PV3

Power loss (W): 57

Rated current In (A): 200

Class: gPV

Fuse Dimension (mm): 76x269

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 14950

Minimum breaking current (A): 400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 600A 63x106mm 2x M12 flush end...

Reference: 589.230.62

Series name: B100

Power loss (W): 115

Rated current In (A): 600

Class: aBat

Fuse Dimension (mm): 63x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 93300

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 281000

Minimum breaking current (A): 6000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 50A 22x65mm

Reference: 589.678.93

Series name: AB22

Power loss (W): 10

Rated current In (A): 50

Class: aBat

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 10

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 700

Total clearing I²t @Un DC (A²s): 3900

Minimum breaking current (A): 400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 32A 14x51mm

Reference: 591.013.43

Series name: A145

Power loss (W): 10

Rated current In (A): 32

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 14x51

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 70

Total clearing I²t @Un AC (A²s): 650

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 20A 14x85mm in-line terminals

Reference: 592.796.46

Series name: 20PV14

Power loss (W): 6,4

Rated current In (A): 20

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 67

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 450A size 1 53x52mm M8 flush end terminals

Reference: 593.610.51

Series name: C100

Power loss (W): 68

Rated current In (A): 450

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 20000

Fixing dimensions: M8

Total clearing I²t @Un AC (A²s): 140000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 50A DIN00/80 with indicator and...

Reference: 593.732.55

Series name: NR2B

Rated current In (A): 50

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 63A 22x58mm surface mount,...

Reference: 593.818.70

Series name: UR22

Power loss (W): 13,4

Rated current In (A): 63

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 540

Total clearing I²t @Un AC (A²s): 2370

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 60A 22x65mm

Reference: 593.887.15

Series name: PV22

Power loss (W): 12

Rated current In (A): 60

Class: gPV

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 10

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1220

Total clearing I²t @Un DC (A²s): 7500

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 100A 22x65mm

Reference: 594.242.76

Series name: AB22

Power loss (W): 18

Rated current In (A): 100

Class: aBat

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 10

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 4520

Total clearing I²t @Un DC (A²s): 25000

Minimum breaking current (A): 800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gPV 6A 10x38mm

Reference: 595.846.83

Series name: V103

Rated current In (A): 6

Class: gPV

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 30A 14x85mm

Reference: 597.293.07

Series name: 20PV14

Power loss (W): 8,8

Rated current In (A): 30

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 185

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 4A 22x65mm

Reference: 597.742.13

Series name: X100

Rated current In (A): 4

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 20A 14x51mm

Reference: 599.888.65

Series name: A145

Power loss (W): 6,3

Rated current In (A): 20

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 14x51

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 23

Total clearing I²t @Un AC (A²s): 200

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 240VAC/150VDC aR 35A 17x56mm fixing centres 42mm

Reference: 600.633.93

Series name: 24E1

Power loss (W): 5,5

Rated current In (A): 35

Class: aR

Rated Voltage Un AC (V): 240

Rated breaking capacity I1 AC (kA): 100

Rated Voltage Un DC (V): 150

Rated breaking capacity I1 DC (kA): 20

Melting I²t value (A²s): 48,5

Total clearing I²t @Un AC (A²s): 545

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 50A DIN000/80 without indicator and...

Reference: 600.836.00

Series name: NR2A

Power loss (W): 9

Rated current In (A): 50

Class: aR

Indicator: No

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 330

Total clearing I²t @Un AC (A²s): 1200

Total clearing I²t @Un DC (A²s): 1500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 125A 38x127mm axial terminals, fixing...

Reference: 601.893.44

Series name: B200

Power loss (W): 21

Rated current In (A): 125

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 3400

Total clearing I²t @Un DC (A²s): 13000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 315A DIN000/80 without indicator...

Reference: 602.872.34

Series name: NR2A

Power loss (W): 70

Rated current In (A): 315

Class: aR

Indicator: No

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 16450

Total clearing I²t @Un AC (A²s): 60000

Total clearing I²t @Un DC (A²s): 71600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 5A 10x85mm in-line terminals

Reference: 603.660.85

Series name: V108

Rated current In (A): 5

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: In-line for copper cable

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 350A DIN00/80 with indicator and with lug...

Reference: 605.274.36

Series name: NR2B

Rated current In (A): 350

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gPV 32A 10x38mm

Reference: 606.329.11

Series name: V103

Rated current In (A): 32

Class: gPV

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 690VAC/500VDC aR 40A 17x77mm fixing centres 63mm

Reference: 607.017.53

Series name: 69E1

Power loss (W): 12,4

Rated current In (A): 40

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 17x77

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 63,5

Melting I²t value (A²s): 90

Total clearing I²t @Un AC (A²s): 340

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 80A 22x65mm surface mount, fixing...

Reference: 607.699.67

Series name: DC22

Power loss (W): 16,3

Rated current In (A): 80

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 87

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1350

Total clearing I²t @Un DC (A²s): 5950

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 750A 103x144mm 2x M12 flush end...

Reference: 609.756.44

Series name: B500

Power loss (W): 205

Rated current In (A): 750

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 228000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1264000

Minimum breaking current (A): 8700

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 300A 50x123mm axial terminals,...

Reference: 611.581.63

Series name: Z050A

Rated current In (A): 300

Class: EV Fuse – Full range

Rated Voltage Un DC (V): 1000

Time costant L/R (ms): 2,5

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 600A 63x203mm silver plated axial...

Reference: 611.956.12

Series name: B100

Power loss (W): 115

Rated current In (A): 600

Class: aBat

Fuse Dimension (mm): 63x203

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 152,7

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 93300

Total clearing I²t @Un DC (A²s): 281000

Minimum breaking current (A): 6000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 690VAC aR 1250A size 3 76x50mm M12 flush end terminals

Reference: 613.574.19

Series name: C300

Power loss (W): 153

Rated current In (A): 1250

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 275000

Fixing dimensions: M12

Total clearing I²t @Un AC (A²s): 1650000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC aR 400A DIN000/80 with indicator and without...

Reference: 613.917.51

Series name: NR2A

Power loss (W): 93,5

Rated current In (A): 400

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 200

Fuse size: NH000

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 33600

Total clearing I²t @Un AC (A²s): 145000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 32A 22x65mm

Reference: 615.757.72

Series name: DC22

Power loss (W): 6,9

Rated current In (A): 32

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 155

Total clearing I²t @Un DC (A²s): 700

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 80A 22x65mm

Reference: 616.545.00

Series name: DC22

Power loss (W): 16,3

Rated current In (A): 80

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1350

Total clearing I²t @Un DC (A²s): 5950

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC aR 63A 14x51mm

Reference: 616.546.40

Series name: A145

Power loss (W): 16

Rated current In (A): 63

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 14x51

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 408

Total clearing I²t @Un AC (A²s): 2930

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 690VAC/500VDC aR 110A 17x77mm fixing centres 63mm

Reference: 616.958.39

Series name: 69E1

Power loss (W): 30

Rated current In (A): 110

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 17x77

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 63,5

Melting I²t value (A²s): 1106

Total clearing I²t @Un AC (A²s): 4506

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 160A DIN00/80 with indicator and...

Reference: 617.386.84

Series name: NR2B

Rated current In (A): 160

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 75A 27x85mm

Reference: 618.698.55

Series name: 20PV27

Power loss (W): 19,7

Rated current In (A): 75

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1900

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 12A 10x38mm surface mount, fixing...

Reference: 619.828.62

Series name: E103

Power loss (W): 2,7

Rated current In (A): 12

Class: aBat

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Fixing connection centres (mm): 52

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 12

Total clearing I²t @Un DC (A²s): 119

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gPV 10A 10x38mm

Reference: 620.307.82

Series name: V103

Rated current In (A): 10

Class: gPV

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 4A 10x85mm in-line terminals

Reference: 621.631.49

Series name: 20PV10

Power loss (W): 1,8

Rated current In (A): 4

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 19

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 30A 10x38mm surface mount,...

Reference: 622.098.41

Series name: M100

Power loss (W): 6

Rated current In (A): 30

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 53

Fuse Connection/Terminal type: Screw fixing

Minimum breaking current (A): 60

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 32A DIN000/80 with indicator and...

Reference: 622.337.77

Series name: NR2A

Power loss (W): 7

Rated current In (A): 32

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 80

Total clearing I²t @Un AC (A²s): 300

Total clearing I²t @Un DC (A²s): 350

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VDC EV-full range 50A 10x38mm surface mount,...

Reference: 622.488.67

Series name: M050

Power loss (W): 6,8

Rated current In (A): 50

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 53,5

Fuse Connection/Terminal type: Screw fixing

Minimum breaking current (A): 100

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 900A 76x140mm M12 flush end terminals

Reference: 623.631.19

Series name: BPF3

Power loss (W): 210

Rated current In (A): 900

Class: aBat

Fuse Dimension (mm): 76x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 435000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 2480000

Minimum breaking current (A): 9000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-Full Range 40A 22x65mm surface mount,...

Reference: 624.134.80

Series name: EV65.1000

Power loss (W): 9

Rated current In (A): 40

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 25

Fixing connection centres (mm): 87

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 425

Total clearing I²t @Un DC (A²s): 1750

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 250A 38x127mm surface mount, fixing...

Reference: 624.140.70

Series name: B200

Power loss (W): 39

Rated current In (A): 250

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 21000

Total clearing I²t @Un DC (A²s): 79800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 500A 50x129mm tin plated axial...

Reference: 625.302.58

Series name: B050

Power loss (W): 66

Rated current In (A): 500

Class: aBat, aR

Fuse Dimension (mm): 50x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 78500

Total clearing I²t @Un DC (A²s): 204000

Minimum breaking current (A): 5000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 750A 76x140mm M12 flush end terminals

Reference: 629.830.04

Series name: BPF3

Power loss (W): 180

Rated current In (A): 750

Class: aBat

Fuse Dimension (mm): 76x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 260000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1485000

Minimum breaking current (A): 8000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 250A 38x127mm axial terminals, fixing...

Reference: 631.812.67

Series name: BSDC

Power loss (W): 39

Rated current In (A): 250

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2100

Total clearing I²t @Un DC (A²s): 79800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 50A 22x65mm

Reference: 635.145.22

Series name: VP22

Rated current In (A): 50

Class: gPV

Rated Voltage Un AC (V): 800

Rated Voltage Un DC (V): 1500

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 480VAC 22x58mm for protection of SPD with Iimp up to...

Reference: 635.429.15

Series name: SP22

Rated Voltage Un AC (V): 480

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 197000

Total clearing I²t @Un AC (A²s): 430000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 32A 22x58mm with pins for...

Reference: 637.218.29

Series name: UR22

Power loss (W): 9

Rated current In (A): 32

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 65

Total clearing I²t @Un AC (A²s): 330

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VDC aBat 50A 10x38mm surface mount, fixing...

Reference: 638.553.07

Series name: E103

Power loss (W): 6,4

Rated current In (A): 50

Class: aBat

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 20

Fixing connection centres (mm): 52

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 233

Total clearing I²t @Un DC (A²s): 3840

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 250A DIN000/80 with indicator and...

Reference: 639.596.77

Series name: NR2A

Power loss (W): 57

Rated current In (A): 250

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 10150

Total clearing I²t @Un AC (A²s): 37100

Total clearing I²t @Un DC (A²s): 44200

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 125A DIN000/80 with indicator and...

Reference: 640.594.60

Series name: NR2A

Power loss (W): 27,5

Rated current In (A): 125

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2100

Total clearing I²t @Un AC (A²s): 7700

Total clearing I²t @Un DC (A²s): 9200

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 40A 22x58mm

Reference: 641.430.00

Series name: UR22

Power loss (W): 9,6

Rated current In (A): 40

Class: aR

Rated Voltage Un AC (V): 550

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 148

Total clearing I²t @Un AC (A²s): 640

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 125A DIN00/80 with indicator and...

Reference: 642.654.54

Series name: NR2B

Rated current In (A): 125

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 1400A size 3 76x50mm M12 flush end terminals

Reference: 644.795.05

Series name: C300

Power loss (W): 168

Rated current In (A): 1400

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 375000

Fixing dimensions: M12

Total clearing I²t @Un AC (A²s): 2140000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 6A 10x85mm in-line terminals

Reference: 645.030.33

Series name: 20PV10

Power loss (W): 2,1

Rated current In (A): 6

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 79

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 20A 10x38mm surface mount,...

Reference: 645.890.14

Series name: M100

Power loss (W): 4,5

Rated current In (A): 20

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 53

Fuse Connection/Terminal type: Screw fixing

Minimum breaking current (A): 40

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 70A 22x65mm

Reference: 648.814.66

Series name: AB22

Power loss (W): 12

Rated current In (A): 70

Class: aBat

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 10

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2100

Total clearing I²t @Un DC (A²s): 11550

Minimum breaking current (A): 560

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gBat 10A 22x65mm

Reference: 655.286.94

Series name: BP22

Power loss (W): 2,4

Rated current In (A): 10

Class: gBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 10

Minimum breaking current (A): 20

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 500A 50x141mm tin plated axial...

Reference: 655.460.05

Series name: B050

Power loss (W): 66

Rated current In (A): 500

Class: aBat, aR

Fuse Dimension (mm): 50x141

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 78500

Total clearing I²t @Un DC (A²s): 204000

Minimum breaking current (A): 5000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 600A 50x141mm tin plated axial...

Reference: 656.768.70

Series name: B050

Power loss (W): 79

Rated current In (A): 600

Class: aBat, aR

Fuse Dimension (mm): 50x141

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 134000

Total clearing I²t @Un DC (A²s): 350000

Minimum breaking current (A): 6000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 250A 38x127mm axial terminals, fixing...

Reference: 656.906.03

Series name: B200

Power loss (W): 39

Rated current In (A): 250

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 21000

Total clearing I²t @Un DC (A²s): 79800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC aR 350A DIN000/80 without indicator and...

Reference: 657.589.99

Series name: NR2A

Power loss (W): 80

Rated current In (A): 350

Class: aR

Indicator: No

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 200

Fuse size: NH000

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 21500

Total clearing I²t @Un AC (A²s): 92500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 10A 22x65mm

Reference: 658.578.76

Series name: X800

Rated current In (A): 10

Class: gG

Fuse Dimension (mm): 22x65

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 12A 14x51mm

Reference: 658.591.15

Series name: A145

Power loss (W): 3,6

Rated current In (A): 12

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 14x51

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 9

Total clearing I²t @Un AC (A²s): 78

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VDC aBat 100A 38x109mm fixing centres 80mm

Reference: 658.741.73

Series name: T500

Power loss (W): 9,5

Rated current In (A): 100

Class: aBat

Fuse Dimension (mm): 38x109

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 80,35

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2100

Total clearing I²t @Un DC (A²s): 3200

Minimum breaking current (A): 1000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1400A 76x140mm M12 flush end terminals

Reference: 659.248.56

Series name: BPF3

Power loss (W): 290

Rated current In (A): 1400

Class: aBat

Fuse Dimension (mm): 76x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1350000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 7695000

Minimum breaking current (A): 19600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 16A 14x51mm

Reference: 659.899.80

Series name: A145

Power loss (W): 5,4

Rated current In (A): 16

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 14x51

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 13

Total clearing I²t @Un AC (A²s): 120

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 50A 22x65mm

Reference: 660.156.22

Series name: PV22

Power loss (W): 11

Rated current In (A): 50

Class: gPV

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 10

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 685

Total clearing I²t @Un DC (A²s): 5600

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 80A DIN000/80 without indicator and...

Reference: 663.878.32

Series name: NR2A

Power loss (W): 17

Rated current In (A): 80

Class: aR

Indicator: No

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 750

Total clearing I²t @Un AC (A²s): 2800

Total clearing I²t @Un DC (A²s): 3300

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 250A 50x215mm axial terminals, fixing...

Reference: 664.460.52

Series name: BPF1

Power loss (W): 47,5

Rated current In (A): 250

Class: aBat

Fuse Dimension (mm): 50x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 168,65

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 22300

Total clearing I²t @Un DC (A²s): 78050

Minimum breaking current (A): 2500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 40A size 1 53x52mm M8 flush end terminals

Reference: 667.564.16

Series name: C100

Power loss (W): 6

Rated current In (A): 40

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 40

Fixing dimensions: M8

Total clearing I²t @Un AC (A²s): 270

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 350A 50x141mm silver plated axial...

Reference: 672.889.04

Series name: B050

Power loss (W): 48

Rated current In (A): 350

Class: aBat, aR

Fuse Dimension (mm): 50x141

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 33600

Total clearing I²t @Un DC (A²s): 88000

Minimum breaking current (A): 3500

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 16A 10x85mm in-line terminals

Reference: 674.643.15

Series name: V108

Rated current In (A): 16

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: In-line for copper cable

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 32A 22x58mm surface mount,...

Reference: 677.334.80

Series name: UR22

Power loss (W): 9

Rated current In (A): 32

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 65

Total clearing I²t @Un AC (A²s): 330

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 3A 10x85mm

Reference: 677.846.19

Series name: G108

Rated current In (A): 3

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 30

Fuse Dimension (mm): 10x85

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 20

Total clearing I²t @Un AC (A²s): 360

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 1250A 89x106mm 2x M12 flush end terminals

Reference: 678.183.99

Series name: B300

Power loss (W): 235

Rated current In (A): 1250

Class: aBat

Fuse Dimension (mm): 86x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 537500

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1620000

Minimum breaking current (A): 12500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 630A 63x167mm silver plated axial...

Reference: 679.983.97

Series name: B100

Power loss (W): 120

Rated current In (A): 630

Class: aBat

Fuse Dimension (mm): 63x167

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 132,75

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 108000

Total clearing I²t @Un DC (A²s): 324000

Minimum breaking current (A): 6300

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC EV-Full Range 75A 22x65mm surface mount,...

Reference: 680.838.47

Series name: EV65.1000

Power loss (W): 13,5

Rated current In (A): 75

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 25

Fixing connection centres (mm): 87

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2480

Total clearing I²t @Un DC (A²s): 7300

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 300A 50x123mm surface mount,...

Reference: 682.493.71

Series name: Z050A

Rated current In (A): 300

Class: EV Fuse – Full range

Rated Voltage Un DC (V): 1000

Time costant L/R (ms): 2,5

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 32A 22x85mm

Reference: 684.844.13

Series name: 20PV22

Power loss (W): 9,7

Rated current In (A): 32

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 225

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 10A 10x85mm

Reference: 685.060.16

Series name: V108

Rated current In (A): 10

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 350A 76x269mm axial terminals fixing...

Reference: 693.162.36

Series name: 20PV3

Power loss (W): 81

Rated current In (A): 350

Class: gPV

Fuse Dimension (mm): 76x269

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 73750

Minimum breaking current (A): 700

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 30A 22x65mm

Reference: 693.945.08

Series name: PV22

Power loss (W): 7

Rated current In (A): 30

Class: gPV

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 10

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 230

Total clearing I²t @Un DC (A²s): 1800

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 1000A 89x106mm 2x M12 flush end terminals

Reference: 695.363.75

Series name: B300

Power loss (W): 200

Rated current In (A): 1000

Class: aBat

Fuse Dimension (mm): 86x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 267000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 801000

Minimum breaking current (A): 10000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 180A DIN000/80 with indicator and...

Reference: 696.362.07

Series name: NR2A

Power loss (W): 42,5

Rated current In (A): 180

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 4120

Total clearing I²t @Un AC (A²s): 15100

Total clearing I²t @Un DC (A²s): 18000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1800A 103x144mm 2x M12 flush end...

Reference: 697.280.78

Series name: B500

Power loss (W): 430

Rated current In (A): 1800

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1615000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 8720000

Minimum breaking current (A): 19800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 125A 38x127mm surface mount, fixing...

Reference: 698.861.52

Series name: B200

Power loss (W): 21

Rated current In (A): 125

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 3400

Total clearing I²t @Un DC (A²s): 13000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 8A 22x65mm

Reference: 699.108.71

Series name: X100

Rated current In (A): 8

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 25A 22x65mm

Reference: 701.823.85

Series name: DC22

Power loss (W): 4,9

Rated current In (A): 25

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 95

Total clearing I²t @Un DC (A²s): 430

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 2A 10x85mm

Reference: 706.589.17

Series name: 20PV10

Power loss (W): 1,2

Rated current In (A): 2

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 32A 22x65mm surface mount, fixing...

Reference: 706.803.00

Series name: DC22

Power loss (W): 6,9

Rated current In (A): 32

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 87

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 155

Total clearing I²t @Un DC (A²s): 700

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 65A 22x85mm

Reference: 709.076.55

Series name: 20PV22

Power loss (W): 15,4

Rated current In (A): 65

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1660

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 315A DIN00/80 with indicator and...

Reference: 712.042.86

Series name: NR2B

Rated current In (A): 315

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 3A 10x85mm in-line terminals

Reference: 714.152.74

Series name: 20PV10

Power loss (W): 1,8

Rated current In (A): 3

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 5

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 135A 22x58mm

Reference: 719.479.82

Series name: UR22

Power loss (W): 28,6

Rated current In (A): 135

Class: aR

Rated Voltage Un AC (V): 550

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 3640

Total clearing I²t @Un AC (A²s): 17800

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC gBat 50A 22x65mm

Reference: 719.648.37

Series name: BP22

Power loss (W): 7,9

Rated current In (A): 50

Class: gBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 737

Minimum breaking current (A): 100

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 70A 27x85mm in-line terminal for copper...

Reference: 720.065.13

Series name: 20PV27

Power loss (W): 20,2

Rated current In (A): 70

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC 22x65mm for protection of SPD with Iimp up to...

Reference: 721.081.58

Series name: A800

Rated Voltage Un AC (V): 800

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 36000

Total clearing I²t @Un AC (A²s): 250000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 400A 50x215mm axial terminals, fixing...

Reference: 721.754.28

Series name: BPF1

Power loss (W): 70,5

Rated current In (A): 400

Class: aBat

Fuse Dimension (mm): 50x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 168,65

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 73750

Total clearing I²t @Un DC (A²s): 258150

Minimum breaking current (A): 4000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 2A 10x85mm in-line terminals

Reference: 724.456.12

Series name: 20PV10

Power loss (W): 1,2

Rated current In (A): 2

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 63A 22x65mm surface mount, fixing...

Reference: 725.960.68

Series name: DC22

Power loss (W): 12,5

Rated current In (A): 63

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 87

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 750

Total clearing I²t @Un DC (A²s): 3305

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 40A 22x85mm in-line copper terminals 6/8...

Reference: 730.712.59

Series name: 20PV22

Power loss (W): 11,3

Rated current In (A): 40

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 415

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 315A DIN00/80 with indicator and...

Reference: 732.361.29

Series name: NR2B

Rated current In (A): 315

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 35A 22x85mm in-line copper terminals 6/8...

Reference: 732.907.12

Series name: 20PV22

Power loss (W): 10,7

Rated current In (A): 35

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 265

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 180A DIN00/80 with indicator and...

Reference: 733.030.55

Series name: NR2B

Rated current In (A): 180

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 100A DIN00/80 with indicator and...

Reference: 733.837.25

Series name: NR2B

Rated current In (A): 100

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 2000A 2x63x106mm double bodies 2x M12...

Reference: 735.676.55

Series name: B100

Power loss (W): 368

Rated current In (A): 2000

Class: aBat

Fuse Dimension (mm): 63x130

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1494000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 4380000

Minimum breaking current (A): 20000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VDC EV-full range 15A 10x38mm surface mount,...

Reference: 736.036.45

Series name: M050

Power loss (W): 5,2

Rated current In (A): 15

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 53,5

Fuse Connection/Terminal type: Screw fixing

Minimum breaking current (A): 30

Available

Datasheet

Compare

Fuse 690VAC/700VDC aR 160A DIN000/80 with indicator and...

Reference: 736.402.52

Series name: NR2A

Power loss (W): 37,5

Rated current In (A): 160

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 3020

Total clearing I²t @Un AC (A²s): 11100

Total clearing I²t @Un DC (A²s): 13200

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC aR 350A DIN000/80 with indicator and without...

Reference: 736.827.54

Series name: NR2A

Power loss (W): 80

Rated current In (A): 350

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 200

Fuse size: NH000

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 21500

Total clearing I²t @Un AC (A²s): 92500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 2A 10x85mm

Reference: 737.739.33

Series name: G108

Rated current In (A): 2

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 30

Fuse Dimension (mm): 10x85, 27x60

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 8A 10x85mm in-line terminals

Reference: 740.292.26

Series name: V108

Rated current In (A): 8

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: In-line for copper cable

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 80A DIN00/80 with indicator and...

Reference: 740.833.15

Series name: NR2B

Rated current In (A): 80

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC EV-Full Range 80A 22x65mm surface mount,...

Reference: 741.636.74

Series name: EV65.1500

Power loss (W): 14,9

Rated current In (A): 80

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 25

Fixing connection centres (mm): 87

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 3000

Total clearing I²t @Un DC (A²s): 14900

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 12A 14x85mm

Reference: 743.195.59

Series name: 20PV14

Power loss (W): 4

Rated current In (A): 12

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 23

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 125A 22x58mm with pins for...

Reference: 743.702.10

Series name: UR22

Power loss (W): 26

Rated current In (A): 125

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 3100

Total clearing I²t @Un AC (A²s): 15000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 4A 10x85mm

Reference: 902.355.78

Series name: V108

Rated current In (A): 4

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC EV-Full Range 75A 22x65mm

Reference: 942.825.21

Series name: EV65.1500

Power loss (W): 13,5

Rated current In (A): 75

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 25

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2480

Total clearing I²t @Un DC (A²s): 12500

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 1A 10x85mm in-line terminals

Reference: 962.679.68

Series name: 20PV10

Power loss (W): 0,8

Rated current In (A): 1

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 0,7

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 600A 50x129mm silver plated axial...

Reference: 977.020.16

Series name: B050

Power loss (W): 79

Rated current In (A): 600

Class: aBat, aR

Fuse Dimension (mm): 50x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 134000

Total clearing I²t @Un DC (A²s): 350000

Minimum breaking current (A): 6000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 700VDC aBat 35A 10x38mm surface mount, fixing...

Reference: 977.799.61

Series name: E103

Power loss (W): 4,4

Rated current In (A): 35

Class: aBat

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 700

Rated breaking capacity I1 DC (kA): 20

Fixing connection centres (mm): 52

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 148

Total clearing I²t @Un DC (A²s): 2490

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1500A 103x144mm 4x M10 flush end...

Reference: 980.290.26

Series name: B500

Power loss (W): 350

Rated current In (A): 1500

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1156000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 6270000

Minimum breaking current (A): 17000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 500A size 1 53x52mm M8 flush end terminals

Reference: 980.470.39

Series name: C100

Power loss (W): 76

Rated current In (A): 500

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 26000

Fixing dimensions: M8

Total clearing I²t @Un AC (A²s): 186000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 32A DIN000/80 with indicator and...

Reference: 981.100.50

Series name: NR2A

Power loss (W): 7

Rated current In (A): 32

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 80

Total clearing I²t @Un AC (A²s): 300

Total clearing I²t @Un DC (A²s): 350

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 6A 10x85mm

Reference: 982.783.96

Series name: V108

Rated current In (A): 6

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 1000A size 2 61x50mm M10 flush end terminals

Reference: 983.677.94

Series name: C200

Power loss (W): 110

Rated current In (A): 1000

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 61x50

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 226000

Total clearing I²t @Un AC (A²s): 1250000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 8A 10x85mm

Reference: 984.092.61

Series name: V108

Rated current In (A): 8

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 25A 10x85mm

Reference: 984.545.26

Series name: V108

Rated current In (A): 25

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 700A 63x106mm 2x M12 flush end...

Reference: 984.935.68

Series name: B100

Power loss (W): 128

Rated current In (A): 700

Class: aBat

Fuse Dimension (mm): 63x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 143600

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 431000

Minimum breaking current (A): 7000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 5A 10x85mm

Reference: 987.948.87

Series name: 20PV10

Power loss (W): 2

Rated current In (A): 5

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 42

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VDC aBat 160A 38x109mm fixing centres 80mm

Reference: 988.896.44

Series name: T500

Power loss (W): 16

Rated current In (A): 160

Class: aBat

Fuse Dimension (mm): 38x109

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 80,35

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 5400

Total clearing I²t @Un DC (A²s): 8100

Minimum breaking current (A): 1600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 55A 22x85mm in-line copper terminals 6/8...

Reference: 992.157.21

Series name: 20PV22

Power loss (W): 13,5

Rated current In (A): 55

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1065

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 125A DIN00/80 with indicator and...

Reference: 993.324.88

Series name: NR2B

Rated current In (A): 125

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 12A 10x38mm

Reference: 993.569.98

Series name: M100

Power loss (W): 2

Rated current In (A): 12

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 30

Fuse Connection/Terminal type: Cylindrical

Minimum breaking current (A): 12

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 80A 22x65mm

Reference: 993.797.75

Series name: AB22

Power loss (W): 13,5

Rated current In (A): 80

Class: aBat

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 10

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 3030

Total clearing I²t @Un DC (A²s): 16600

Minimum breaking current (A): 640

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC aR 400A DIN000/80 without indicator and...

Reference: 995.090.15

Series name: NR2A

Power loss (W): 93,5

Rated current In (A): 400

Class: aR

Indicator: No

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 200

Fuse size: NH000

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 33600

Total clearing I²t @Un AC (A²s): 145000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 250A 38x129mm silver plated axial...

Reference: 997.607.45

Series name: B025

Power loss (W): 39

Rated current In (A): 250

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 15500

Total clearing I²t @Un DC (A²s): 34000

Minimum breaking current (A): 2000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 600A 63x167mm tin plated axial...

Reference: 998.060.37

Series name: B100

Power loss (W): 115

Rated current In (A): 600

Class: aBat

Fuse Dimension (mm): 63x167

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 132,75

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 93300

Total clearing I²t @Un DC (A²s): 281000

Minimum breaking current (A): 6000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 690VAC aR 1000A size 3 76x50mm M12 flush end terminals

Reference: 998.554.76

Series name: C300

Power loss (W): 132

Rated current In (A): 1000

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 140000

Fixing dimensions: M12

Total clearing I²t @Un AC (A²s): 840000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 800A 103x144mm 2x M12 flush end...

Reference: 745.237.55

Series name: B500

Power loss (W): 213

Rated current In (A): 800

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 272000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1452000

Minimum breaking current (A): 9000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 20A 10x38mm

Reference: 745.673.47

Series name: M100

Power loss (W): 4,5

Rated current In (A): 20

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 30

Fuse Connection/Terminal type: Cylindrical

Minimum breaking current (A): 40

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC EV-Full Range 60A 22x65mm

Reference: 745.686.61

Series name: EV65.1000

Power loss (W): 12

Rated current In (A): 60

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 25

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1220

Total clearing I²t @Un DC (A²s): 4100

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 500A 50x141mm silver plated axial...

Reference: 749.643.83

Series name: B050

Power loss (W): 66

Rated current In (A): 500

Class: aBat, aR

Fuse Dimension (mm): 50x141

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 78500

Total clearing I²t @Un DC (A²s): 204000

Minimum breaking current (A): 5000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 1500A 103x106mm 2x M12 flush end terminals

Reference: 752.255.02

Series name: B400

Power loss (W): 275

Rated current In (A): 1500

Class: aBat

Fuse Dimension (mm): 103x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 731600

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 2195000

Minimum breaking current (A): 15000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 20A 10x85mm

Reference: 752.519.86

Series name: V108

Rated current In (A): 20

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC EV-Full Range 25A 22x65mm surface mount,...

Reference: 753.060.54

Series name: EV65.1500

Power loss (W): 6,5

Rated current In (A): 25

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 25

Fixing connection centres (mm): 87

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 130

Total clearing I²t @Un DC (A²s): 1400

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC EV-Full Range 70A 22x65mm

Reference: 754.158.47

Series name: EV65.1000

Power loss (W): 13

Rated current In (A): 70

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 25

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2010

Total clearing I²t @Un DC (A²s): 6050

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 12A 22x58mm

Reference: 754.812.07

Series name: UR22

Power loss (W): 3,5

Rated current In (A): 12

Class: aR

Rated Voltage Un AC (V): 550

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 8,5

Total clearing I²t @Un AC (A²s): 37

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 900A 76x215mm axial terminals, fixing...

Reference: 755.769.25

Series name: BPF3

Power loss (W): 210

Rated current In (A): 900

Class: aBat

Fuse Dimension (mm): 76x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 171,5

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 435000

Total clearing I²t @Un DC (A²s): 2480000

Minimum breaking current (A): 9000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 1100A 63x167mm silver plated axial...

Reference: 757.962.17

Series name: B100

Power loss (W): 180

Rated current In (A): 1100

Class: aBat

Fuse Dimension (mm): 63x167

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 132,75

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 508000

Total clearing I²t @Un DC (A²s): 1620000

Minimum breaking current (A): 11000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 300A 38x127mm axial terminals, fixing...

Reference: 760.312.32

Series name: BSDC

Power loss (W): 52

Rated current In (A): 300

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 46000

Total clearing I²t @Un DC (A²s): 175000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gPV 5A 10x38mm

Reference: 762.911.81

Series name: V103

Rated current In (A): 5

Class: gPV

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 1600A 103x106mm 4x M10 flush end terminals

Reference: 763.062.87

Series name: B400

Power loss (W): 280

Rated current In (A): 1600

Class: aBat

Fuse Dimension (mm): 103x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 955600

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 2870000

Minimum breaking current (A): 16000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 1400A 2x63x106mm double bodies 2x M12...

Reference: 763.542.13

Series name: B100

Power loss (W): 269

Rated current In (A): 1400

Class: aBat

Fuse Dimension (mm): 63x130

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 574400

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1724000

Minimum breaking current (A): 14000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 15A 10x38mm surface mount,...

Reference: 764.033.13

Series name: M100

Power loss (W): 3,05

Rated current In (A): 15

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 53

Fuse Connection/Terminal type: Screw fixing

Minimum breaking current (A): 30

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 40A DIN000/80 with indicator and...

Reference: 764.389.01

Series name: NR2A

Power loss (W): 7,2

Rated current In (A): 40

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 230

Total clearing I²t @Un AC (A²s): 840

Total clearing I²t @Un DC (A²s): 1000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 10A 10x85mm

Reference: 765.329.01

Series name: 20PV10

Power loss (W): 2,6

Rated current In (A): 10

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 32A DIN000/80 without indicator and...

Reference: 765.929.08

Series name: NR2A

Power loss (W): 7

Rated current In (A): 32

Class: aR

Indicator: No

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 80

Total clearing I²t @Un AC (A²s): 300

Total clearing I²t @Un DC (A²s): 350

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-Full Range 30A 22x65mm surface mount,...

Reference: 766.286.13

Series name: EV65.1000

Power loss (W): 7

Rated current In (A): 30

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 25

Fixing connection centres (mm): 87

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 230

Total clearing I²t @Un DC (A²s): 910

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 350A 50x141mm tin plated axial...

Reference: 768.151.83

Series name: B050

Power loss (W): 48

Rated current In (A): 350

Class: aBat, aR

Fuse Dimension (mm): 50x141

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 33600

Total clearing I²t @Un DC (A²s): 88000

Minimum breaking current (A): 3500

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 500VAC aR 350A DIN000/80 with indicator and with lug...

Reference: 768.569.77

Series name: NR2A

Power loss (W): 80

Rated current In (A): 350

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 200

Fuse size: NH000

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 21500

Total clearing I²t @Un AC (A²s): 92500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 4A 10x85mm in-line terminals

Reference: 770.725.83

Series name: V108

Rated current In (A): 4

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 63A 22x65mm

Reference: 771.575.29

Series name: X800

Rated current In (A): 63

Class: gG

Fuse Dimension (mm): 22x65

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1000A 103x144mm 2x M12 flush end...

Reference: 771.687.08

Series name: B500

Power loss (W): 260

Rated current In (A): 1000

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 404000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 2210000

Minimum breaking current (A): 11000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 200A size 1 53x52mm M8 flush end terminals

Reference: 772.168.00

Series name: C100

Power loss (W): 30

Rated current In (A): 200

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2300

Fixing dimensions: M8

Total clearing I²t @Un AC (A²s): 15500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 100A DIN000/80 with indicator and...

Reference: 773.800.56

Series name: NR2A

Power loss (W): 19

Rated current In (A): 100

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1340

Total clearing I²t @Un AC (A²s): 5000

Total clearing I²t @Un DC (A²s): 5850

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 50A 22x85mm

Reference: 774.105.69

Series name: 20PV22

Power loss (W): 12,7

Rated current In (A): 50

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 815

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 240VAC/150VDC aR 80A 17x56mm fixing centres 42mm

Reference: 774.862.12

Series name: 24E1

Power loss (W): 12,5

Rated current In (A): 80

Class: aR

Rated Voltage Un AC (V): 240

Rated breaking capacity I1 AC (kA): 100

Rated Voltage Un DC (V): 150

Rated breaking capacity I1 DC (kA): 20

Melting I²t value (A²s): 268

Total clearing I²t @Un AC (A²s): 2255

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1250A 76x140mm M12 flush end terminals

Reference: 776.448.92

Series name: BPF3

Power loss (W): 250

Rated current In (A): 1250

Class: aBat

Fuse Dimension (mm): 76x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1150000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 6555000

Minimum breaking current (A): 15000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 50A 22x65mm

Reference: 778.571.19

Series name: X800

Rated current In (A): 50

Class: gG

Fuse Dimension (mm): 22x65

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 80A 38x127mm surface mount, fixing...

Reference: 780.431.03

Series name: B200

Power loss (W): 14

Rated current In (A): 80

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1300

Total clearing I²t @Un DC (A²s): 5000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 600A 2x38x127mm axial terminals,...

Reference: 780.625.28

Series name: BSDC

Power loss (W): 120

Rated current In (A): 600

Class: aBat

Fuse Dimension (mm): 38x127

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 183000

Total clearing I²t @Un DC (A²s): 695000

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 2A 10x85mm in-line terminals

Reference: 781.529.66

Series name: V108

Rated current In (A): 2

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-Full Range 70A 22x65mm surface mount,...

Reference: 784.537.01

Series name: EV65.1000

Power loss (W): 13

Rated current In (A): 70

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 25

Fixing connection centres (mm): 87

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2010

Total clearing I²t @Un DC (A²s): 6050

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 3A 10x85mm

Reference: 785.688.75

Series name: V108

Rated current In (A): 3

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 63A 38x129mm silver plated axial...

Reference: 787.177.81

Series name: B025

Power loss (W): 10

Rated current In (A): 63

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 740

Total clearing I²t @Un DC (A²s): 1700

Minimum breaking current (A): 504

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 800A 63x167mm tin plated axial...

Reference: 788.866.95

Series name: B100

Power loss (W): 150

Rated current In (A): 800

Class: aBat

Fuse Dimension (mm): 63x167

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 132,75

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 185000

Total clearing I²t @Un DC (A²s): 550000

Minimum breaking current (A): 8000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 45A 22x85mm in-line aluminum terminals 6AWG

Reference: 792.355.17

Series name: 20PV22

Power loss (W): 11,9

Rated current In (A): 45

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 250A DIN00/80 with indicator and...

Reference: 793.395.76

Series name: NR2B

Rated current In (A): 250

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 35A 22x65mm

Reference: 794.621.04

Series name: VP22

Rated current In (A): 35

Class: gPV

Rated Voltage Un AC (V): 800

Rated Voltage Un DC (V): 1500

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 8A 10x85mm

Reference: 797.476.09

Series name: 20PV10

Power loss (W): 2,4

Rated current In (A): 8

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 193

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gPV 12A 10x38mm

Reference: 799.317.97

Series name: V103

Rated current In (A): 12

Class: gPV

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 315A 50x215mm axial terminals, fixing...

Reference: 802.183.96

Series name: BPF1

Power loss (W): 59,5

Rated current In (A): 315

Class: aBat

Fuse Dimension (mm): 50x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 168,65

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 37250

Total clearing I²t @Un DC (A²s): 130400

Minimum breaking current (A): 3150

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 15A 10x85mm

Reference: 803.035.83

Series name: V108

Rated current In (A): 15

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 12A 22x58mm with pins for...

Reference: 804.062.20

Series name: UR22

Power loss (W): 3,5

Rated current In (A): 12

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 8,5

Total clearing I²t @Un AC (A²s): 37

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 240VAC/150VDC aR 20A 17x56mm fixing centres 42mm

Reference: 805.424.77

Series name: 24E1

Power loss (W): 3,8

Rated current In (A): 20

Class: aR

Rated Voltage Un AC (V): 240

Rated breaking capacity I1 AC (kA): 100

Rated Voltage Un DC (V): 150

Rated breaking capacity I1 DC (kA): 20

Melting I²t value (A²s): 29

Total clearing I²t @Un AC (A²s): 116

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 1500A 89x106mm 2x M12 flush end terminals

Reference: 810.052.92

Series name: B300

Power loss (W): 285

Rated current In (A): 1500

Class: aBat

Fuse Dimension (mm): 86x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 858600

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 2576000

Minimum breaking current (A): 15000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 100A 22x58mm

Reference: 810.153.18

Series name: UR22

Power loss (W): 19,1

Rated current In (A): 100

Class: aR

Rated Voltage Un AC (V): 550

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2150

Total clearing I²t @Un AC (A²s): 9345

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 160A 38x129mm tin plated axial...

Reference: 810.190.09

Series name: B025

Power loss (W): 25,5

Rated current In (A): 160

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 5400

Total clearing I²t @Un DC (A²s): 12000

Minimum breaking current (A): 1280

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC EV-Full Range 25A 22x65mm surface mount,...

Reference: 811.498.79

Series name: EV65.1000

Power loss (W): 6,5

Rated current In (A): 25

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 25

Fixing connection centres (mm): 87

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 130

Total clearing I²t @Un DC (A²s): 650

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1100A 76x140mm M12 flush end terminals

Reference: 811.782.46

Series name: BPF3

Power loss (W): 245

Rated current In (A): 1100

Class: aBat

Fuse Dimension (mm): 76x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 790000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 4505000

Minimum breaking current (A): 13200

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC EV-Full Range 80A 22x65mm

Reference: 812.048.37

Series name: EV65.1500

Power loss (W): 14,9

Rated current In (A): 80

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 25

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 3000

Total clearing I²t @Un DC (A²s): 14900

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 315A 50x140mm M8 flush end terminals

Reference: 812.427.91

Series name: BPF1

Power loss (W): 59,5

Rated current In (A): 315

Class: aBat

Fuse Dimension (mm): 50x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 37250

Fixing dimensions: M8

Total clearing I²t @Un DC (A²s): 130400

Minimum breaking current (A): 3150

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 630A 63x203mm silver plated axial...

Reference: 812.809.96

Series name: B100

Power loss (W): 120

Rated current In (A): 630

Class: aBat

Fuse Dimension (mm): 63x203

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 152,7

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 108000

Total clearing I²t @Un DC (A²s): 324000

Minimum breaking current (A): 6300

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC gBat 63A 22x65mm

Reference: 820.572.76

Series name: BP22

Power loss (W): 8,8

Rated current In (A): 63

Class: gBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1660

Minimum breaking current (A): 126

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VDC EV-full range 20A 10x38mm

Reference: 825.200.32

Series name: M050

Power loss (W): 6,8

Rated current In (A): 20

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 30

Fuse Connection/Terminal type: Cylindrical

Minimum breaking current (A): 40

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 630A 63x106mm 2x M12 flush end...

Reference: 829.815.86

Series name: B100

Power loss (W): 120

Rated current In (A): 630

Class: aBat

Fuse Dimension (mm): 63x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 108000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 324000

Minimum breaking current (A): 6300

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 20A 22x58mm with pins for...

Reference: 832.525.27

Series name: UR22

Power loss (W): 6,1

Rated current In (A): 20

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 21

Total clearing I²t @Un AC (A²s): 96

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 315A DIN000/80 with indicator and...

Reference: 834.560.26

Series name: NR2A

Power loss (W): 70

Rated current In (A): 315

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 16450

Total clearing I²t @Un AC (A²s): 60000

Total clearing I²t @Un DC (A²s): 71600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 25A 14x51mm

Reference: 836.007.31

Series name: A145

Power loss (W): 8,5

Rated current In (A): 25

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 14x51

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 36

Total clearing I²t @Un AC (A²s): 355

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 20A 22x58mm

Reference: 838.770.26

Series name: UR22

Power loss (W): 6,1

Rated current In (A): 20

Class: aR

Rated Voltage Un AC (V): 550

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 21

Total clearing I²t @Un AC (A²s): 96

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 690VAC aR 630A size 1 53x52mm M8 flush end terminals

Reference: 840.651.02

Series name: C100

Power loss (W): 96

Rated current In (A): 630

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 48000

Fixing dimensions: M8

Total clearing I²t @Un AC (A²s): 320000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1250A 103x144mm 4x M10 flush end...

Reference: 841.376.18

Series name: B500

Power loss (W): 300

Rated current In (A): 1250

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 718000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 3912000

Minimum breaking current (A): 14000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 690VAC/500VDC aR 75A 17x77mm fixing centres 63mm

Reference: 841.422.80

Series name: 69E1

Power loss (W): 19,5

Rated current In (A): 75

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 17x77

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 63,5

Melting I²t value (A²s): 565

Total clearing I²t @Un AC (A²s): 2245

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 630A 103x144mm 4x M10 flush end...

Reference: 842.982.93

Series name: B500

Power loss (W): 170

Rated current In (A): 630

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 145000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 772800

Minimum breaking current (A): 6900

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gPV 30A 10x38mm

Reference: 843.944.51

Series name: V103

Rated current In (A): 30

Class: gPV

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 50A DIN000/80 with indicator and...

Reference: 845.374.39

Series name: NR2A

Power loss (W): 9

Rated current In (A): 50

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 330

Total clearing I²t @Un AC (A²s): 1200

Total clearing I²t @Un DC (A²s): 1500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 32A 22x65mm

Reference: 845.638.80

Series name: VP22

Rated current In (A): 32

Class: gPV

Rated Voltage Un AC (V): 800

Rated Voltage Un DC (V): 1500

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC EV-Full Range 60A 22x65mm surface mount,...

Reference: 845.787.94

Series name: EV65.1500

Power loss (W): 12

Rated current In (A): 60

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 25

Fixing connection centres (mm): 87

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1220

Total clearing I²t @Un DC (A²s): 7500

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 700A 63x167mm tin plated axial...

Reference: 847.598.69

Series name: B100

Power loss (W): 128

Rated current In (A): 700

Class: aBat

Fuse Dimension (mm): 63x167

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 132,75

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 143600

Total clearing I²t @Un DC (A²s): 431000

Minimum breaking current (A): 7000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 700A 63x167mm silver plated axial...

Reference: 848.406.90

Series name: B100

Power loss (W): 128

Rated current In (A): 700

Class: aBat

Fuse Dimension (mm): 63x167

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 132,75

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 143600

Total clearing I²t @Un DC (A²s): 431000

Minimum breaking current (A): 7000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 35A 22x85mm

Reference: 852.242.24

Series name: 20PV22

Power loss (W): 10,7

Rated current In (A): 35

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 265

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 2000A 103x144mm 4x M10 flush end...

Reference: 853.941.31

Series name: B500

Power loss (W): 445

Rated current In (A): 2000

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2798000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 13650000

Minimum breaking current (A): 25000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 600A 63x203mm tin plated axial...

Reference: 855.334.24

Series name: B100

Power loss (W): 115

Rated current In (A): 600

Class: aBat

Fuse Dimension (mm): 63x203

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 152,7

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 93300

Total clearing I²t @Un DC (A²s): 281000

Minimum breaking current (A): 6000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 50A DIN00/80 with indicator and...

Reference: 859.192.76

Series name: NR2B

Rated current In (A): 50

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 70A 27x85mm

Reference: 861.527.78

Series name: 20PV27

Power loss (W): 20,2

Rated current In (A): 70

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 135A 22x58mm surface mount,...

Reference: 861.706.36

Series name: UR22

Power loss (W): 28,6

Rated current In (A): 135

Class: aR

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 3640

Total clearing I²t @Un AC (A²s): 17800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gBat 16A 22x65mm

Reference: 862.304.66

Series name: BP22

Power loss (W): 3,6

Rated current In (A): 16

Class: gBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 30

Minimum breaking current (A): 32

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 15A 14x85mm in-line terminals

Reference: 864.160.53

Series name: 20PV14

Power loss (W): 4,8

Rated current In (A): 15

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 38

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 315A 76x269mm axial terminals fixing...

Reference: 864.831.51

Series name: 20PV3

Power loss (W): 79

Rated current In (A): 315

Class: gPV

Fuse Dimension (mm): 76x269

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 50200

Minimum breaking current (A): 630

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 600A 50x129mm tin plated axial...

Reference: 865.632.53

Series name: B050

Power loss (W): 79

Rated current In (A): 600

Class: aBat, aR

Fuse Dimension (mm): 50x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 134000

Total clearing I²t @Un DC (A²s): 350000

Minimum breaking current (A): 6000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 6A 10x85mm in-line terminals

Reference: 865.834.50

Series name: V108

Rated current In (A): 6

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 630A 63x203mm tin plated axial...

Reference: 867.290.88

Series name: B100

Power loss (W): 120

Rated current In (A): 630

Class: aBat

Fuse Dimension (mm): 63x203

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 152,7

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 108000

Total clearing I²t @Un DC (A²s): 324000

Minimum breaking current (A): 6300

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 180A DIN00/80 with indicator and...

Reference: 868.707.36

Series name: NR2B

Rated current In (A): 180

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 10A 10x38mm surface mount, fixing...

Reference: 869.033.78

Series name: E103

Power loss (W): 2,5

Rated current In (A): 10

Class: aBat

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 20

Fixing connection centres (mm): 52

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 7

Total clearing I²t @Un DC (A²s): 69

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 32A 22x85mm in-line copper terminals 6/8...

Reference: 869.193.43

Series name: 20PV22

Power loss (W): 9,7

Rated current In (A): 32

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 225

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 63A DIN000/80 without indicator and...

Reference: 869.557.46

Series name: NR2A

Power loss (W): 9,5

Rated current In (A): 63

Class: aR

Indicator: No

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 520

Total clearing I²t @Un AC (A²s): 1900

Total clearing I²t @Un DC (A²s): 2260

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 63A size 1 53x52mm M8 flush end terminals

Reference: 872.796.60

Series name: C100

Power loss (W): 10

Rated current In (A): 63

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 115

Fixing dimensions: M8

Total clearing I²t @Un AC (A²s): 760

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 40A 22x65mm

Reference: 873.361.63

Series name: AB22

Power loss (W): 8,5

Rated current In (A): 40

Class: aBat

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 10

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 415

Total clearing I²t @Un DC (A²s): 2300

Minimum breaking current (A): 320

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 250A 50x141mm silver plated axial...

Reference: 874.107.39

Series name: B050

Power loss (W): 36

Rated current In (A): 250

Class: aBat, aR

Fuse Dimension (mm): 50x141

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 15000

Total clearing I²t @Un DC (A²s): 40000

Minimum breaking current (A): 2500

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 50A 22x58mm with pins for...

Reference: 874.869.63

Series name: UR22

Power loss (W): 13,3

Rated current In (A): 50

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 195

Total clearing I²t @Un AC (A²s): 955

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 1A 10x85mm

Reference: 875.562.82

Series name: V108

Rated current In (A): 1

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 160A 38x129mm silver plated axial...

Reference: 876.179.40

Series name: B025

Power loss (W): 25,5

Rated current In (A): 160

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 5400

Total clearing I²t @Un DC (A²s): 12000

Minimum breaking current (A): 1280

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 400A 76x269mm axial terminals fixing...

Reference: 877.289.08

Series name: 20PV3

Power loss (W): 84,5

Rated current In (A): 400

Class: gPV

Fuse Dimension (mm): 76x269

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 119860

Minimum breaking current (A): 800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 240VAC/150VDC aR 6A 17x56mm fixing centres 42mm

Reference: 877.567.82

Series name: 24E1

Power loss (W): 1,9

Rated current In (A): 6

Class: aR

Rated Voltage Un AC (V): 240

Rated breaking capacity I1 AC (kA): 100

Rated Voltage Un DC (V): 150

Rated breaking capacity I1 DC (kA): 20

Melting I²t value (A²s): 2

Total clearing I²t @Un AC (A²s): 9

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 700A size 2 61x50mm M10 flush end terminals

Reference: 881.120.73

Series name: C200

Power loss (W): 86

Rated current In (A): 700

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 61x50

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 740000

Total clearing I²t @Un AC (A²s): 407000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 125A 22x58mm surface mount,...

Reference: 881.999.47

Series name: UR22

Power loss (W): 26

Rated current In (A): 125

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 3100

Total clearing I²t @Un AC (A²s): 15000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 450A 50x141mm tin plated axial...

Reference: 886.009.48

Series name: B050

Power loss (W): 60

Rated current In (A): 450

Class: aBat, aR

Fuse Dimension (mm): 50x141

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 62000

Total clearing I²t @Un DC (A²s): 162000

Minimum breaking current (A): 4500

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 700A 63x203mm tin plated axial...

Reference: 886.466.75

Series name: B100

Power loss (W): 128

Rated current In (A): 700

Class: aBat

Fuse Dimension (mm): 63x203

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 152,7

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 143600

Total clearing I²t @Un DC (A²s): 431000

Minimum breaking current (A): 7000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 500VDC aBat 250A 38x109mm fixing centres 80mm

Reference: 886.506.55

Series name: T500

Power loss (W): 25

Rated current In (A): 250

Class: aBat

Fuse Dimension (mm): 38x109

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 80,35

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 15500

Total clearing I²t @Un DC (A²s): 23000

Minimum breaking current (A): 2500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 32A DIN00/80 with indicator and...

Reference: 886.723.70

Series name: NR2B

Rated current In (A): 32

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gBat 40A 22x65mm

Reference: 889.666.78

Series name: BP22

Power loss (W): 6,5

Rated current In (A): 40

Class: gBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 415

Minimum breaking current (A): 80

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-Full Range 40A 22x65mm

Reference: 893.574.49

Series name: EV65.1000

Power loss (W): 9

Rated current In (A): 40

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 25

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 425

Total clearing I²t @Un DC (A²s): 1750

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 15A 10x85mm in-line terminals

Reference: 895.746.71

Series name: V108

Rated current In (A): 15

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 1000A 76x140mm M12 flush end terminals

Reference: 900.131.26

Series name: BPF3

Power loss (W): 230

Rated current In (A): 1000

Class: aBat

Fuse Dimension (mm): 76x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 590000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 3365000

Minimum breaking current (A): 10000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 20A 22x65mm

Reference: 903.248.36

Series name: DC22

Power loss (W): 4,4

Rated current In (A): 20

Class: aBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 48

Total clearing I²t @Un DC (A²s): 220

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VDC EV-full range 40A 10x38mm surface mount,...

Reference: 904.360.78

Series name: M050

Power loss (W): 5,6

Rated current In (A): 40

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 53,5

Fuse Connection/Terminal type: Screw fixing

Minimum breaking current (A): 80

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 70A 22x65mm

Reference: 904.864.77

Series name: PV22

Power loss (W): 13

Rated current In (A): 70

Class: gPV

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 10

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2010

Total clearing I²t @Un DC (A²s): 10500

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse BS 690VAC/500VDC aR 63A 17x77mm fixing centres 63mm

Reference: 907.073.30

Series name: 69E1

Power loss (W): 15

Rated current In (A): 63

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 17x77

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 63,5

Melting I²t value (A²s): 457

Total clearing I²t @Un AC (A²s): 1937

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 750A 103x144mm 4x M10 flush end...

Reference: 909.634.43

Series name: B500

Power loss (W): 205

Rated current In (A): 750

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 228000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 1264000

Minimum breaking current (A): 8700

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 240VAC/150VDC aR 63A 17x56mm fixing centres 42mm

Reference: 911.778.86

Series name: 24E1

Power loss (W): 10,7

Rated current In (A): 63

Class: aR

Rated Voltage Un AC (V): 240

Rated breaking capacity I1 AC (kA): 100

Rated Voltage Un DC (V): 150

Rated breaking capacity I1 DC (kA): 20

Melting I²t value (A²s): 145

Total clearing I²t @Un AC (A²s): 1660

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 10A 10x38mm

Reference: 912.049.76

Series name: M100

Power loss (W): 1,55

Rated current In (A): 10

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 30

Fuse Connection/Terminal type: Cylindrical

Minimum breaking current (A): 20

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 450A 50x141mm silver plated axial...

Reference: 912.206.14

Series name: B050

Power loss (W): 60

Rated current In (A): 450

Class: aBat, aR

Fuse Dimension (mm): 50x141

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 62000

Total clearing I²t @Un DC (A²s): 162000

Minimum breaking current (A): 4500

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 1600A 103x106mm 2x M12 flush end terminals

Reference: 916.702.70

Series name: B400

Power loss (W): 280

Rated current In (A): 1600

Class: aBat

Fuse Dimension (mm): 103x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 955600

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 2870000

Minimum breaking current (A): 16000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 900A 63x203mm tin plated axial...

Reference: 919.035.31

Series name: B100

Power loss (W): 170

Rated current In (A): 900

Class: aBat

Fuse Dimension (mm): 63x203

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 152,7

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 267000

Total clearing I²t @Un DC (A²s): 813000

Minimum breaking current (A): 9000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 10A 10x85mm in-line terminals

Reference: 919.302.40

Series name: V108

Rated current In (A): 10

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 63A 22x58mm with pins for...

Reference: 919.847.75

Series name: UR22

Power loss (W): 13,4

Rated current In (A): 63

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 540

Total clearing I²t @Un AC (A²s): 2370

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 16A 22x65mm

Reference: 920.752.40

Series name: X800

Rated current In (A): 16

Class: gG

Fuse Dimension (mm): 22x65

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 250A 76x269mm axial terminals fixing...

Reference: 921.536.68

Series name: 20PV3

Power loss (W): 67,5

Rated current In (A): 250

Class: gPV

Fuse Dimension (mm): 76x269

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 26550

Minimum breaking current (A): 500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 400A 50x123mm surface mount,...

Reference: 923.227.01

Series name: Z050A

Rated current In (A): 400

Class: EV Fuse – Full range

Rated Voltage Un DC (V): 1000

Time costant L/R (ms): 2,5

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR125A 22x58mm

Reference: 926.959.14

Series name: UR22

Power loss (W): 26

Rated current In (A): 125

Class: aR

Rated Voltage Un AC (V): 550

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 3100

Total clearing I²t @Un AC (A²s): 15000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 150A 22x58mm surface mount,...

Reference: 928.681.71

Series name: UR22

Power loss (W): 31,9

Rated current In (A): 150

Class: aR

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 4850

Total clearing I²t @Un AC (A²s): 23500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse BS 690VAC/500VDC aR 90A 17x77mm fixing centres 63mm

Reference: 929.654.98

Series name: 69E1

Power loss (W): 25

Rated current In (A): 90

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 17x77

Rated Voltage Un DC (V): 500

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 63,5

Melting I²t value (A²s): 683

Total clearing I²t @Un AC (A²s): 2863

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 700A 103x144mm 4x M10 flush end...

Reference: 929.737.75

Series name: B500

Power loss (W): 185

Rated current In (A): 700

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 208000

Fixing dimensions: M10

Total clearing I²t @Un DC (A²s): 1169000

Minimum breaking current (A): 8000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC gBat 12A 22x65mm

Reference: 933.044.86

Series name: BP22

Power loss (W): 2,7

Rated current In (A): 12

Class: gBat

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 17

Minimum breaking current (A): 24

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 250A DIN00/80 with indicator and...

Reference: 934.169.73

Series name: NR2B

Rated current In (A): 250

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 900A 63x106mm 2x M12 flush end...

Reference: 934.823.06

Series name: B100

Power loss (W): 170

Rated current In (A): 900

Class: aBat

Fuse Dimension (mm): 63x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 267000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 813000

Minimum breaking current (A): 9000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC EV-Full Range 75A 22x65mm

Reference: 938.403.22

Series name: EV65.1000

Power loss (W): 13,5

Rated current In (A): 75

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 25

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2480

Total clearing I²t @Un DC (A²s): 7300

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 400A 50x140mm M8 flush end terminals

Reference: 939.180.20

Series name: BPF1

Power loss (W): 70,5

Rated current In (A): 400

Class: aBat

Fuse Dimension (mm): 50x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 73750

Fixing dimensions: M8

Total clearing I²t @Un DC (A²s): 258150

Minimum breaking current (A): 4000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 1100A 63x203mm tin plated axial...

Reference: 939.403.04

Series name: B100

Power loss (W): 180

Rated current In (A): 1100

Class: aBat

Fuse Dimension (mm): 63x203

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 152,7

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 508000

Total clearing I²t @Un DC (A²s): 1620000

Minimum breaking current (A): 11000

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 800VAC gG 8A 22x65mm

Reference: 941.257.57

Series name: X800

Rated current In (A): 8

Class: gG

Fuse Dimension (mm): 22x65

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat/aR 300A 38x129mm tin plated axial...

Reference: 942.895.54

Series name: B025

Power loss (W): 47

Rated current In (A): 300

Class: aBat, aR

Fuse Dimension (mm): 38x129

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 23300

Total clearing I²t @Un DC (A²s): 51000

Minimum breaking current (A): 2400

Applicable standards: IEC, UL

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 1100A 89x106mm 2x M12 flush end terminals

Reference: 942.974.93

Series name: B300

Power loss (W): 210

Rated current In (A): 1100

Class: aBat

Fuse Dimension (mm): 86x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 373200

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1120000

Minimum breaking current (A): 11000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 55A 22x85mm in-line aluminum terminals 6AWG

Reference: 943.549.03

Series name: 20PV22

Power loss (W): 13,5

Rated current In (A): 55

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1065

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 80A 22x58mm surface mount,...

Reference: 944.514.36

Series name: UR22

Power loss (W): 16,3

Rated current In (A): 80

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fixing connection centres (mm): 80

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1055

Total clearing I²t @Un AC (A²s): 4620

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 700A 103x144mm 2x M12 flush end...

Reference: 946.887.63

Series name: B500

Power loss (W): 185

Rated current In (A): 700

Class: aBat

Fuse Dimension (mm): 103x144

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 250

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 208000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 1169000

Minimum breaking current (A): 8000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 350A 50x123mm axial terminals,...

Reference: 948.927.94

Series name: Z050A

Rated current In (A): 350

Class: EV Fuse – Full range

Rated Voltage Un DC (V): 1000

Time costant L/R (ms): 2,5

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 800VAC gG 25A 22x65mm

Reference: 950.132.78

Series name: X800

Rated current In (A): 25

Class: gG

Fuse Dimension (mm): 22x65

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 250A size 1 53x52mm M8 flush end terminals

Reference: 952.201.47

Series name: C100

Power loss (W): 38

Rated current In (A): 250

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 4100

Fixing dimensions: M8

Total clearing I²t @Un AC (A²s): 28000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 32A DIN00/80 with indicator and...

Reference: 953.799.47

Series name: NR2B

Rated current In (A): 32

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 350A size 1 53x52mm M8 flush end terminals

Reference: 964.146.63

Series name: C100

Power loss (W): 53

Rated current In (A): 350

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 53x52

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 10000

Fixing dimensions: M8

Total clearing I²t @Un AC (A²s): 70000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 25A 10x85mm in-line terminals

Reference: 965.085.72

Series name: V108

Rated current In (A): 25

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 500VAC IEC/550VAC UL aR 16A 22x58mm with pins for...

Reference: 968.375.45

Series name: UR22

Power loss (W): 5,1

Rated current In (A): 16

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 12,5

Total clearing I²t @Un AC (A²s): 56

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-Full Range 50A 22x65mm

Reference: 968.836.79

Series name: EV65.1000

Power loss (W): 11

Rated current In (A): 50

Class: EV Fuse – Full range

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 25

Time costant L/R (ms): 2,5

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 685

Total clearing I²t @Un DC (A²s): 2800

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 200A DIN00/80 with indicator and...

Reference: 969.788.60

Series name: NR2B

Rated current In (A): 250

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH00

Rated breaking capacity I1 DC (kA): 30

Time costant L/R (ms): 2

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 125A DIN000/80 without indicator...

Reference: 969.839.51

Series name: NR2A

Power loss (W): 27,5

Rated current In (A): 125

Class: aR

Indicator: No

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2100

Total clearing I²t @Un AC (A²s): 7700

Total clearing I²t @Un DC (A²s): 9200

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC EV-full range 25A 10x38mm surface mount,...

Reference: 970.958.15

Series name: M100

Power loss (W): 5

Rated current In (A): 25

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 53

Fuse Connection/Terminal type: Screw fixing

Minimum breaking current (A): 50

Applicable standards: UL

Available

3D Datasheet

Compare

Fuse 700VDC aBat 40A 10x38mm surface mount, fixing...

Reference: 971.827.03

Series name: E103

Power loss (W): 4,6

Rated current In (A): 40

Class: aBat

Fuse Dimension (mm): 10x38

Rated Voltage Un DC (V): 700

Rated breaking capacity I1 DC (kA): 20

Fixing connection centres (mm): 52

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 161

Total clearing I²t @Un DC (A²s): 2760

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 60A 22x65mm

Reference: 972.091.49

Series name: AB22

Power loss (W): 11

Rated current In (A): 60

Class: aBat

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 10

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1270

Total clearing I²t @Un DC (A²s): 7000

Minimum breaking current (A): 480

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 1800A 103x106mm 2x M12 flush end terminals

Reference: 972.167.94

Series name: B400

Power loss (W): 298

Rated current In (A): 1800

Class: aBat

Fuse Dimension (mm): 103x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1493000

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 4480000

Minimum breaking current (A): 18000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 50A DIN000/80 with indicator and...

Reference: 974.055.30

Series name: NR2A

Power loss (W): 9

Rated current In (A): 50

Class: aR

Indicator: Yes

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 330

Total clearing I²t @Un AC (A²s): 1200

Total clearing I²t @Un DC (A²s): 1500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 10A 10x85mm in-line terminals

Reference: 975.988.85

Series name: 20PV10

Power loss (W): 2,6

Rated current In (A): 10

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC/700VDC aR 250A DIN000/80 without indicator...

Reference: 977.316.49

Series name: NR2A

Power loss (W): 57

Rated current In (A): 250

Class: aR

Indicator: No

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Rated Voltage Un DC (V): 700

Fuse size: NH000

Rated breaking capacity I1 DC (kA): 30

Fixing connection centres (mm): 80

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 10150

Total clearing I²t @Un AC (A²s): 37100

Total clearing I²t @Un DC (A²s): 44200

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 800VAC gG 2A 22x65mm

Reference: 977.978.94

Series name: X800

Rated current In (A): 2

Class: gG

Fuse Dimension (mm): 22x65

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 25A 14x85mm in-line terminals

Reference: 979.300.79

Series name: 20PV14

Power loss (W): 7,6

Rated current In (A): 25

Class: gPV

Fuse Dimension (mm): 14x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 118

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aBat 1400A 89x106mm 2x M12 flush end terminals

Reference: 979.833.74

Series name: B300

Power loss (W): 262

Rated current In (A): 1400

Class: aBat

Fuse Dimension (mm): 86x106

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 731600

Fixing dimensions: M12

Total clearing I²t @Un DC (A²s): 2195000

Minimum breaking current (A): 14000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 690VAC aR 1100A size 3 76x50mm M12 flush end terminals

Reference: 980.066.34

Series name: C300

Power loss (W): 136

Rated current In (A): 1100

Class: aR

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 200

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 200800

Fixing dimensions: M12

Total clearing I²t @Un AC (A²s): 1150000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 200A 50x215mm axial terminals, fixing...

Reference: 500.173.72

Series name: BPF1

Power loss (W): 40

Rated current In (A): 200

Class: aBat

Fuse Dimension (mm): 50x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 168,65

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 12550

Total clearing I²t @Un DC (A²s): 43950

Minimum breaking current (A): 2000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 550A 50x215mm axial terminals, fixing...

Reference: 481.685.31

Series name: BPF1

Power loss (W): 90

Rated current In (A): 550

Class: aBat

Fuse Dimension (mm): 50x215

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Fixing connection centres (mm): 168,65

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 182900

Total clearing I²t @Un DC (A²s): 640150

Minimum breaking current (A): 5500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 200A 50x140mm M8 flush end terminals

Reference: 115.193.15

Series name: BPF1

Power loss (W): 40

Rated current In (A): 200

Class: aBat

Fuse Dimension (mm): 50x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 12550

Fixing dimensions: M8

Total clearing I²t @Un DC (A²s): 43950

Minimum breaking current (A): 2000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC aBat 550A 50x140mm M8 flush end terminals

Reference: 526.966.68

Series name: BPF1

Power loss (W): 90

Rated current In (A): 550

Class: aBat

Fuse Dimension (mm): 50x140

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 182900

Fixing dimensions: M8

Total clearing I²t @Un DC (A²s): 640150

Minimum breaking current (A): 5500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1500VDC gPV 12A 10x85mm in-line terminals

Reference: 143.250.67

Series name: V108

Rated current In (A): 12

Class: gPV

Fuse Dimension (mm): 10x85

Rated Voltage Un DC (V): 1500

Rated breaking capacity I1 DC (kA): 20

Time costant L/R (ms): ≤3

Applicable standards: IEC

Available

3D Datasheet

Compare

On-board fuse box for metro with fuses 1800VDC 2x800A,...

Reference: 704.189.83

Series name: MBOX

Rated Voltage Un DC (V): 1800

Applicable standards: IEC

Degree of protection: IP65

Enclosure material: steel AISI304L

Dimension (mm): 600x300x210

Available

Compare

Fuse 1000VAC gG 10A 22x65mm

Reference: 850.994.64

Series name: X100

Rated current In (A): 10

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 16A 22x65mm

Reference: 256.973.70

Series name: X100

Rated current In (A): 16

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 25A 22x65mm

Reference: 892.468.08

Series name: X100

Rated current In (A): 25

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 35A 22x65mm

Reference: 397.363.74

Series name: X100

Rated current In (A): 35

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 32A 22x65mm

Reference: 205.955.78

Series name: X100

Rated current In (A): 32

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 40A 22x65mm

Reference: 581.608.48

Series name: X100

Rated current In (A): 40

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 50A 22x65mm

Reference: 657.855.26

Series name: X100

Rated current In (A): 50

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VAC gG 20A 22x65mm

Reference: 170.907.57

Series name: X100

Rated current In (A): 20

Class: gG

Rated Voltage Un AC (V): 1000

Rated breaking capacity I1 AC (kA): 50

Fuse Dimension (mm): 22x65

Fuse Connection/Terminal type: Cylindrical

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 100A 37x123mm...

Reference: 521.528.40

Series name: Z025A

Class: EV Fuse – Full range

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2,5

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 125A 37x123mm...

Reference: 644.571.35

Series name: Z025A

Class: EV Fuse – Full range

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2,5

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 150A 37x123mm...

Reference: 558.505.22

Series name: Z025A

Class: EV Fuse – Full range

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2,5

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 200A 37x123mm...

Reference: 816.703.62

Series name: Z025A

Class: EV Fuse – Full range

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2,5

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 250A 37x123mm...

Reference: 761.809.04

Series name: Z025A

Class: EV Fuse – Full range

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2,5

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 100A 37x123mm...

Reference: 926.492.76

Series name: Z025A

Class: EV Fuse – Full range

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2,5

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 125A 37x123mm...

Reference: 618.014.43

Series name: Z025A

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 150A 37x123mm...

Reference: 221.492.05

Series name: Z025A

Class: EV Fuse – Full range

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2,5

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 200A 37x123mm...

Reference: 162.998.59

Series name: Z025A

Rated current In (A): 200

Available

Datasheet

Compare

Fuse for automotive 1000V DC EV-full range 250A 37x123mm...

Reference: 171.706.49

Series name: Z025A

Rated current In (A): 250

Class: EV Fuse – Full range

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 100

Time costant L/R (ms): 2,5

Available

Datasheet

Compare

Fuse 2000VDC gPV 12A 22x85mm

Reference: 833.361.58

Series name: 20PV22

Power loss (W): 4

Rated current In (A): 12

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 23

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 15A 22x85mm

Reference: 717.383.24

Series name: 20PV22

Power loss (W): 4,8

Rated current In (A): 15

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 38

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 20A 22x85mm

Reference: 463.061.50

Series name: 20PV22

Power loss (W): 6,4

Rated current In (A): 20

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 67

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 25A 22x85mm

Reference: 930.920.23

Series name: 20PV22

Power loss (W): 7,6

Rated current In (A): 25

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 118

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 30A 22x85mm

Reference: 722.450.52

Series name: 20PV22

Power loss (W): 8,8

Rated current In (A): 30

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 185

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 12A 22x85 in-line copper 10/12 AWG

Reference: 773.810.27

Series name: 20PV22

Power loss (W): 4

Rated current In (A): 12

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 23

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 15A 22x85 in-line copper 10/12 AWG

Reference: 226.310.63

Series name: 20PV22

Power loss (W): 4,8

Rated current In (A): 15

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 38

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 20A 22x85 in-line copper 10/12 AWG

Reference: 307.830.85

Series name: 20PV22

Power loss (W): 6,4

Rated current In (A): 20

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 67

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 25A 22x85 in-line copper 10/12 AWG

Reference: 361.013.42

Series name: 20PV22

Power loss (W): 7,6

Rated current In (A): 25

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 118

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 30A 22x85 in-line copper 10/12 AWG

Reference: 918.529.60

Series name: 20PV22

Power loss (W): 8,8

Rated current In (A): 30

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 185

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 32A 22x85 in-line copper 10/12 AWG

Reference: 809.596.46

Series name: 20PV22

Power loss (W): 9,7

Rated current In (A): 32

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 225

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 12A 22x85 in-line copper terminals 6/8 AWG

Reference: 637.379.22

Series name: 20PV22

Power loss (W): 4

Rated current In (A): 12

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 23

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 15A 22x85 in-line copper terminals 6/8 AWG

Reference: 689.656.50

Series name: 20PV22

Power loss (W): 4,8

Rated current In (A): 15

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 38

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 20A 22x85 in-line copper terminals 6/8 AWG

Reference: 405.973.79

Series name: 20PV22

Power loss (W): 6,4

Rated current In (A): 20

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 67

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 25A 22x85 in-line copper terminals 6/8 AWG

Reference: 705.576.91

Series name: 20PV22

Power loss (W): 7,6

Rated current In (A): 25

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 118

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 30A 22x85 in-line copper terminals 6/8 AWG

Reference: 665.362.82

Series name: 20PV22

Power loss (W): 8,8

Rated current In (A): 30

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 185

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000V DC 35A 22x85mm gPV in-line alluminum 4AWG

Reference: 433.371.43

Series name: 20PV22

Power loss (W): 10,7

Rated current In (A): 35

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 265

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000V DC 40A 22x85mm gPV in-line alluminum 4AWG

Reference: 715.106.10

Series name: 20PV22

Power loss (W): 11,3

Rated current In (A): 40

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 415

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000V DC 45A 22x85mm gPV in-line alluminum 4AWG

Reference: 894.116.24

Series name: 20PV22

Power loss (W): 11,9

Rated current In (A): 45

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000V DC 50A 22x85mm gPV in-line alluminum 4AWG

Reference: 935.255.05

Series name: 20PV22

Power loss (W): 12,7

Rated current In (A): 50

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 815

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000V DC 55A 22x85mm gPV in-line alluminum 4AWG

Reference: 929.282.47

Series name: 20PV22

Power loss (W): 13,5

Rated current In (A): 55

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 1065

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000V DC 60A 22x85mm gPV in-line alluminum 4AWG

Reference: 174.051.12

Series name: 20PV22

Power loss (W): 13,9

Rated current In (A): 60

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 1450

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000V DC 65A 22x85mm gPV in-line alluminum 4AWG

Reference: 542.255.27

Series name: 20PV22

Power loss (W): 15,4

Rated current In (A): 65

Class: gPV

Fuse Dimension (mm): 22x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 1660

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC aBat 350A 76x194mm Flush-End Terminals M12

Reference: 549.076.61

Series name: 20BP3

Power loss (W): 110

Rated current In (A): 350

Class: aBat

Fuse Dimension (mm): 76x194

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 39000

Fixing dimensions: M12

Minimum breaking current (A): 3500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC aBat 400A 76x194mm Flush-End Terminals M12

Reference: 985.683.10

Series name: 20BP3

Power loss (W): 120

Rated current In (A): 400

Class: aBat

Fuse Dimension (mm): 76x194

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 56500

Fixing dimensions: M12

Minimum breaking current (A): 4000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC aBat 450A 76x194mm Flush-End Terminals M12

Reference: 377.532.93

Series name: 20BP3

Power loss (W): 127

Rated current In (A): 450

Class: aBat

Fuse Dimension (mm): 76x194

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 81500

Fixing dimensions: M12

Minimum breaking current (A): 4500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC aBat 500A 76x194mm Flush-End Terminals M12

Reference: 164.459.06

Series name: 20BP3

Power loss (W): 131

Rated current In (A): 500

Class: aBat

Fuse Dimension (mm): 76x194

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 120000

Fixing dimensions: M12

Minimum breaking current (A): 5000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC aBat 550A 76x194mm Flush-End Terminals M12

Reference: 986.616.78

Series name: 20BP3

Power loss (W): 137

Rated current In (A): 550

Class: aBat

Fuse Dimension (mm): 76x194

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 166000

Fixing dimensions: M12

Minimum breaking current (A): 5500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC aBat 630A 76x194mm Flush-End Terminals M12

Reference: 177.898.10

Series name: 20BP3

Power loss (W): 138

Rated current In (A): 630

Class: aBat

Fuse Dimension (mm): 76x194

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 295000

Fixing dimensions: M12

Minimum breaking current (A): 6300

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC aBat 700A 76x218mm Double body Flush-End...

Reference: 669.293.11

Series name: 20BP3

Power loss (W): 220

Rated current In (A): 700

Class: aBat

Fuse Dimension (mm): 76x218

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Fixing dimensions: M12

Minimum breaking current (A): 7000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC aBat 800A 76x218mm Double body Flush-End...

Reference: 244.549.60

Series name: 20BP3

Power loss (W): 241

Rated current In (A): 800

Class: aBat

Fuse Dimension (mm): 76x218

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 226000

Fixing dimensions: M12

Minimum breaking current (A): 8000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC aBat 900A 76x218mm Double body Flush-End...

Reference: 675.648.12

Series name: 20BP3

Power loss (W): 257

Rated current In (A): 900

Class: aBat

Fuse Dimension (mm): 76x218

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 326000

Fixing dimensions: M12

Minimum breaking current (A): 9000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC aBat 1000A 76x218mm Double body Flush-End...

Reference: 259.761.91

Series name: 20BP3

Power loss (W): 266

Rated current In (A): 1000

Class: aBat

Fuse Dimension (mm): 76x218

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 480000

Fixing dimensions: M12

Minimum breaking current (A): 10000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC aBat 1100A 76x218mm Double body Flush-End...

Reference: 375.815.03

Series name: 20BP3

Power loss (W): 277

Rated current In (A): 1100

Class: aBat

Fuse Dimension (mm): 76x218

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 664000

Fixing dimensions: M12

Minimum breaking current (A): 11000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC aBat 1250A 76x218mm Double body Flush-End...

Reference: 151.169.46

Series name: 20BP3

Power loss (W): 278

Rated current In (A): 1250

Class: aBat

Fuse Dimension (mm): 76x218

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1180000

Fixing dimensions: M12

Minimum breaking current (A): 12500

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 90A 27x85mm

Reference: 547.387.46

Series name: 20PV27

Power loss (W): 20,7

Rated current In (A): 90

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 3750

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 100A 27x85mm

Reference: 241.208.32

Series name: 20PV27

Power loss (W): 21,1

Rated current In (A): 100

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 5600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 110A 27x85mm

Reference: 567.692.54

Series name: 20PV27

Power loss (W): 21,8

Rated current In (A): 110

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 7790

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 125A 27x85mm

Reference: 359.535.04

Series name: 20PV27

Power loss (W): 23,4

Rated current In (A): 125

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 11220

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 90A 27x85mm in-line terminal for copper...

Reference: 536.891.44

Series name: 20PV27

Power loss (W): 20,7

Rated current In (A): 90

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 3750

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 70A 27x85mm In-line terminal copper 4 AWG

Reference: 880.064.47

Series name: 20PV27

Power loss (W): 20,2

Rated current In (A): 70

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 75A 27x85mm In-line terminal copper 4 AWG

Reference: 798.209.62

Series name: 20PV27

Power loss (W): 19,7

Rated current In (A): 75

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 1900

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 80A 27x85mm In-line terminal copper 4 AWG

Reference: 199.859.39

Series name: 20PV27

Power loss (W): 20

Rated current In (A): 80

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 2400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 90A 27x85mm In-line terminal copper 4 AWG

Reference: 546.101.83

Series name: 20PV27

Power loss (W): 20,7

Rated current In (A): 90

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 3750

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 100A 27x85mm In-line terminal copper 4 AWG

Reference: 713.261.87

Series name: 20PV27

Power loss (W): 21,1

Rated current In (A): 100

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 5600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 110A 27x85mm In-line terminal copper 4 AWG

Reference: 578.312.58

Series name: 20PV27

Power loss (W): 21,8

Rated current In (A): 110

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 7790

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 125A 27x85mm In-line terminal copper 4 AWG

Reference: 476.045.27

Series name: 20PV27

Power loss (W): 23,4

Rated current In (A): 125

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 11220

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 125A 27x85mm In-line terminal copper 2 AWG

Reference: 882.278.42

Series name: 20PV27

Power loss (W): 23,4

Rated current In (A): 125

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 11220

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 110A 27x85mm In-line terminal copper 2 AWG

Reference: 799.970.92

Series name: 20PV27

Power loss (W): 21,8

Rated current In (A): 110

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for copper cable

Melting I²t value (A²s): 7790

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 100A 27x85mm In-line terminal aluminum 4...

Reference: 976.853.27

Series name: 20PV27

Power loss (W): 21,1

Rated current In (A): 100

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 5600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 90A 27x85mm In-line terminal aluminum 4 AWG

Reference: 366.245.66

Series name: 20PV27

Power loss (W): 20,7

Rated current In (A): 90

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 3750

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 80A 27x85mm In-line terminal aluminum 4 AWG

Reference: 141.009.74

Series name: 20PV27

Power loss (W): 20

Rated current In (A): 80

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 2400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 75A 27x85mm In-line terminal aluminum 4 AWG

Reference: 362.113.29

Series name: 20PV27

Power loss (W): 19,7

Rated current In (A): 75

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 1900

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 70A 27x85mm In-line terminal aluminum 4 AWG

Reference: 607.107.17

Series name: 20PV27

Power loss (W): 20,2

Rated current In (A): 70

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 1400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 70A 27x85mm In-line terminal aluminum 2 AWG

Reference: 198.718.05

Series name: 20PV27

Power loss (W): 20,2

Rated current In (A): 70

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 1400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 75A 27x85mm In-line terminal aluminum 2 AWG

Reference: 393.313.98

Series name: 20PV27

Power loss (W): 19,7

Rated current In (A): 75

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 1900

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 80A 27x85mm In-line terminal aluminum 2 AWG

Reference: 201.435.99

Series name: 20PV27

Power loss (W): 20

Rated current In (A): 80

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 2400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 90A 27x85mm In-line terminal aluminum 2 AWG

Reference: 352.503.31

Series name: 20PV27

Power loss (W): 20,7

Rated current In (A): 90

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 3750

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 100A 27x85mm In-line terminal aluminum 2...

Reference: 502.313.43

Series name: 20PV27

Power loss (W): 21,1

Rated current In (A): 100

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 5600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 110A 27x85mm In-line terminal aluminum 2...

Reference: 439.192.41

Series name: 20PV27

Power loss (W): 21,8

Rated current In (A): 110

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 7790

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 2000VDC gPV 125A 27x85mm In-line terminal aluminum 2...

Reference: 538.657.25

Series name: 20PV27

Power loss (W): 23,4

Rated current In (A): 125

Class: gPV

Fuse Dimension (mm): 27x85

Rated Voltage Un DC (V): 2000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: In-line for aluminum cable

Melting I²t value (A²s): 11220

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 50VDC 125A 31,8x22mm Solderable terminals

Reference: 538.255.08

Series name: BMOD50

Power loss (W): 6,7

Rated current In (A): 125

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 750

Time costant L/R (ms): 3

Melting I²t value (A²s): 126570

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 135A 31,8x22mm Solderable terminals

Reference: 335.333.69

Series name: BMOD50

Power loss (W): 8

Rated current In (A): 135

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 810

Time costant L/R (ms): 3

Melting I²t value (A²s): 126570

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 150A 31,8x22mm Solderable terminals

Reference: 298.582.43

Series name: BMOD50

Power loss (W): 7,4

Rated current In (A): 150

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 900

Time costant L/R (ms): 3

Melting I²t value (A²s): 225000

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 160A 31,8x22mm Solderable terminals

Reference: 131.335.28

Series name: BMOD50

Power loss (W): 9,2

Rated current In (A): 160

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 960

Time costant L/R (ms): 3

Melting I²t value (A²s): 225000

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 175A 31,8x22mm Solderable terminals

Reference: 120.482.15

Series name: BMOD50

Power loss (W): 11

Rated current In (A): 175

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 1050

Time costant L/R (ms): 3

Melting I²t value (A²s): 225000

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 180A 31,8x22mm Solderable terminals

Reference: 199.362.64

Series name: BMOD50

Power loss (W): 12

Rated current In (A): 180

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 1080

Time costant L/R (ms): 3

Melting I²t value (A²s): 225000

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 200A 31,8x22mm Solderable terminals

Reference: 296.664.33

Series name: BMOD50

Power loss (W): 11

Rated current In (A): 200

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 1200

Time costant L/R (ms): 3

Melting I²t value (A²s): 410070

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 225A 31,8x22mm Solderable terminals

Reference: 566.394.08

Series name: BMOD50

Power loss (W): 14

Rated current In (A): 225

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 1350

Time costant L/R (ms): 3

Melting I²t value (A²s): 625000

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 250A 31,8x22mm Solderable terminals

Reference: 108.684.93

Series name: BMOD50

Power loss (W): 14

Rated current In (A): 250

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 1500

Time costant L/R (ms): 3

Melting I²t value (A²s): 729000

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 275A 31,8x22mm Solderable terminals

Reference: 615.389.35

Series name: BMOD50

Power loss (W): 16

Rated current In (A): 275

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 1650

Time costant L/R (ms): 3

Melting I²t value (A²s): 729000

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 300A 31,8x22mm Solderable terminals

Reference: 983.001.91

Series name: BMOD50

Power loss (W): 18

Rated current In (A): 300

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 1800

Time costant L/R (ms): 3

Melting I²t value (A²s): 992250

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 315A 31,8x22mm Solderable terminals

Reference: 506.934.23

Series name: BMOD50

Power loss (W): 19

Rated current In (A): 315

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 1890

Time costant L/R (ms): 3

Melting I²t value (A²s): 992250

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 325A 31,8x22mm Solderable terminals

Reference: 107.341.90

Series name: BMOD50

Power loss (W): 17

Rated current In (A): 325

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 1950

Time costant L/R (ms): 3

Melting I²t value (A²s): 1296000

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 350A 31,8x22mm Solderable terminals

Reference: 493.844.73

Series name: BMOD50

Power loss (W): 25

Rated current In (A): 350

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 2100

Time costant L/R (ms): 3

Melting I²t value (A²s): 1296000

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 355A 31,8x22mm Solderable terminals

Reference: 104.422.90

Series name: BMOD50

Power loss (W): 26

Rated current In (A): 355

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 2130

Time costant L/R (ms): 3

Melting I²t value (A²s): 1296000

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 375A 31,8x22mm Solderable terminals

Reference: 484.515.47

Series name: BMOD50

Power loss (W): 37

Rated current In (A): 375

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 2250

Time costant L/R (ms): 3

Melting I²t value (A²s): 2025000

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 400A 31,8x22mm Solderable terminals

Reference: 625.504.55

Series name: BMOD50

Power loss (W): 39

Rated current In (A): 400

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 2400

Time costant L/R (ms): 3

Melting I²t value (A²s): 2025000

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 425A 31,8x22mm Solderable terminals

Reference: 650.188.97

Series name: BMOD50

Power loss (W): 41

Rated current In (A): 425

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 2550

Time costant L/R (ms): 3

Melting I²t value (A²s): 2025000

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 50VDC 500A 31,8x22mm Solderable terminals

Reference: 786.414.02

Series name: BMOD50

Power loss (W): 54

Rated current In (A): 500

Class: Partial range

Fuse Dimension (mm): 31,8x22

Rated Voltage Un DC (V): 50

Rated breaking capacity I1 DC (kA): 3000

Time costant L/R (ms): 3

Melting I²t value (A²s): 2916000

Applicable standards: Company standard

Available

3D Datasheet

Compare

Fuse 1000VDC aR 50A 22x65mm

Reference: 260.036.14

Series name: AR22

Power loss (W): 9

Rated current In (A): 50

Class: aR

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 737

Total clearing I²t @Un DC (A²s): 6600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aR 70A 22x65mm surface mount with fixing...

Reference: 334.412.08

Series name: AR22

Power loss (W): 12,5

Rated current In (A): 70

Class: aR

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 87

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2000

Total clearing I²t @Un DC (A²s): 12300

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aR 40A 22x65mm

Reference: 334.609.76

Series name: AR22

Power loss (W): 6,6

Rated current In (A): 40

Class: aR

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 415

Total clearing I²t @Un DC (A²s): 3300

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aR 80A 22x65mm surface mount with fixing...

Reference: 345.127.77

Series name: AR22

Power loss (W): 14,5

Rated current In (A): 80

Class: aR

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 87

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 2950

Total clearing I²t @Un DC (A²s): 15400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aR 40A 22x65mm surface mount with fixing...

Reference: 377.835.06

Series name: AR22

Power loss (W): 6,6

Rated current In (A): 40

Class: aR

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 87

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 415

Total clearing I²t @Un DC (A²s): 3300

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aR 80A 22x65mm

Reference: 408.534.01

Series name: AR22

Power loss (W): 14,5

Rated current In (A): 80

Class: aR

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2950

Total clearing I²t @Un DC (A²s): 15400

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aR 70A 22x65mm

Reference: 529.658.33

Series name: AR22

Power loss (W): 12,5

Rated current In (A): 70

Class: aR

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2000

Total clearing I²t @Un DC (A²s): 12300

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aR 60A 22x65mm surface mount with fixing...

Reference: 538.237.27

Series name: AR22

Power loss (W): 9,5

Rated current In (A): 60

Class: aR

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 87

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1300

Total clearing I²t @Un DC (A²s): 9800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aR 60A 22x65mm

Reference: 595.927.40

Series name: AR22

Power loss (W): 9,5

Rated current In (A): 60

Class: aR

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1300

Total clearing I²t @Un DC (A²s): 9800

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aR 50A 22x65mm surface mount with fixing...

Reference: 764.024.17

Series name: AR22

Power loss (W): 9

Rated current In (A): 50

Class: aR

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 87

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 737

Total clearing I²t @Un DC (A²s): 6600

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aR 32A 22x65mm surface mount with fixing...

Reference: 803.049.13

Series name: AR22

Power loss (W): 5,3

Rated current In (A): 32

Class: aR

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 87

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 250

Total clearing I²t @Un DC (A²s): 2000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aR 32A 22x65mm

Reference: 868.215.71

Series name: AR22

Power loss (W): 5,3

Rated current In (A): 32

Class: aR

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 250

Total clearing I²t @Un DC (A²s): 2000

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aR 100A 22x65mm

Reference: 807.873.30

Series name: AR22

Power loss (W): 17,7

Rated current In (A): 100

Class: aR

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 6650

Total clearing I²t @Un DC (A²s): 34700

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aR 25A 22x65mm

Reference: 196.986.37

Series name: AR22

Power loss (W): 4,6

Rated current In (A): 25

Class: aR

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 120

Total clearing I²t @Un DC (A²s): 960

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aR 100A 22x65mm surface mount with fixing...

Reference: 520.370.75

Series name: AR22

Power loss (W): 17,7

Rated current In (A): 100

Class: aR

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 87

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 6650

Total clearing I²t @Un DC (A²s): 34700

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 1000VDC aR 25A 22x65mm surface mount with fixing...

Reference: 154.804.82

Series name: AR22

Power loss (W): 4,6

Rated current In (A): 25

Class: aR

Fuse Dimension (mm): 22x65

Rated Voltage Un DC (V): 1000

Rated breaking capacity I1 DC (kA): 50

Fixing connection centres (mm): 87

Time costant L/R (ms): 1-3

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 120

Total clearing I²t @Un DC (A²s): 960

Applicable standards: IEC

Available

3D Datasheet

Compare

Fuse 76x73,5mm 600VAC 2000A Flush-End Mount Terminal M12

Reference: 366.319.05

Series name: C330

Power loss (W): 245

Rated current In (A): 2000

Class: aR

Rated Voltage Un AC (V): 600

Rated breaking capacity I1 AC (kA): 200

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1610000

Fixing dimensions: M12

Total clearing I²t @Un AC (A²s): 7084000

Applicable standards: IEC

Dimension (mm): 76x73,5

Available

Datasheet

Compare

Fuse 76x73,5mm 600VAC 2200A Flush-End Mount Terminal M12

Reference: 642.937.14

Series name: C330

Power loss (W): 270

Rated current In (A): 2200

Class: aR

Rated Voltage Un AC (V): 600

Rated breaking capacity I1 AC (kA): 200

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1970000

Fixing dimensions: M12

Total clearing I²t @Un AC (A²s): 8668000

Applicable standards: IEC

Dimension (mm): 76x73,5

Available

Datasheet

Compare

Fuse 600VAC aR 2000A 76x73,5mm size 3 with microswitch...

Reference: 266.576.92

Series name: C330P

Power loss (W): 245

Rated current In (A): 2000

Class: aR

Rated Voltage Un AC (V): 600

Rated breaking capacity I1 AC (kA): 200

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1610000

Fixing dimensions: M12

Total clearing I²t @Un AC (A²s): 7084000

Applicable standards: IEC

Dimension (mm): 76x73,5

Available

Datasheet

Compare

Fuse 600VAC aR 2200A 76x73,5mm size 3 with microswitch...

Reference: 557.875.49

Series name: C330P

Power loss (W): 270

Rated current In (A): 2200

Class: aR

Rated Voltage Un AC (V): 600

Rated breaking capacity I1 AC (kA): 200

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 1970000

Fixing dimensions: M12

Total clearing I²t @Un AC (A²s): 8668000

Applicable standards: IEC

Dimension (mm): 76x73,5

Available

Datasheet

Compare

Fuse 690V gG 25A 22x58mm with pins for PCB soldering

Reference: 199.999.77

Series name: G225

Power loss (W): 2,3

Rated current In (A): 25

Class: gG

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 900

Total clearing I²t @Un AC (A²s): 3500

Applicable standards: IEC

Available

Datasheet

Compare

Fuse 690V gG 32A 22x58mm with pins for PCB soldering

Reference: 140.106.64

Series name: G225

Power loss (W): 3

Rated current In (A): 32

Class: gG

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 1500

Total clearing I²t @Un AC (A²s): 5900

Applicable standards: IEC

Available

Datasheet

Compare

Fuse 690V gG 40A 22x58mm with pins for PCB soldering

Reference: 897.955.29

Series name: G225

Power loss (W): 3,5

Rated current In (A): 40

Class: gG

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 2700

Total clearing I²t @Un AC (A²s): 10600

Applicable standards: IEC

Available

Datasheet

Compare

Fuse 690V gG 50A 22x58mm with pins for PCB soldering

Reference: 634.069.65

Series name: G225

Power loss (W): 4

Rated current In (A): 50

Class: gG

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 5300

Total clearing I²t @Un AC (A²s): 20700

Applicable standards: IEC

Available

Datasheet

Compare

Fuse 690V gG 63A 22x58mm with pins for PCB soldering

Reference: 523.089.87

Series name: G225

Power loss (W): 4,9

Rated current In (A): 63

Class: gG

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 9700

Total clearing I²t @Un AC (A²s): 37800

Applicable standards: IEC

Available

Datasheet

Compare

Fuse 690V gG 80A 22x58mm with pins for PCB soldering

Reference: 912.114.40

Series name: G225

Power loss (W): 6,3

Rated current In (A): 80

Class: gG

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 120

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 16500

Total clearing I²t @Un AC (A²s): 64000

Applicable standards: IEC

Available

Datasheet

Compare

Fuse 690V gG 100A 22x58mm with pins for PCB soldering

Reference: 308.529.57

Series name: G225

Power loss (W): 7,9

Rated current In (A): 100

Class: gG

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 120

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 29200

Total clearing I²t @Un AC (A²s): 100000

Applicable standards: IEC

Available

Datasheet

Compare

Fuse 690V gG 25A 22x58mm with pins for PCB soldering

Reference: 168.070.76

Series name: G225

Power loss (W): 2,3

Rated current In (A): 25

Class: gG

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: PCB Mount Terminals

Melting I²t value (A²s): 900

Total clearing I²t @Un AC (A²s): 3500

Applicable standards: IEC

Available

Datasheet

Compare

Fuse 690V gG 32A 22x58mm with pins for PCB soldering

Reference: 309.927.80

Series name: G225

Power loss (W): 3

Rated current In (A): 32

Class: gG

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: PCB Mount Terminals

Melting I²t value (A²s): 1500

Total clearing I²t @Un AC (A²s): 5900

Applicable standards: IEC

Available

Datasheet

Compare

Fuse 690V gG 40A 22x58mm with pins for PCB soldering

Reference: 577.690.10

Series name: G225

Power loss (W): 3,5

Rated current In (A): 40

Class: gG

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: PCB Mount Terminals

Melting I²t value (A²s): 2700

Total clearing I²t @Un AC (A²s): 10600

Applicable standards: IEC

Available

Datasheet

Compare

Fuse 690V gG 50A 22x58mm with pins for PCB soldering

Reference: 387.852.30

Series name: G225

Power loss (W): 4

Rated current In (A): 50

Class: gG

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: PCB Mount Terminals

Melting I²t value (A²s): 5300

Total clearing I²t @Un AC (A²s): 20700

Applicable standards: IEC

Available

Datasheet

Compare

Fuse 690V gG 63A 22x58mm with pins for PCB soldering

Reference: 437.217.98

Series name: G225

Power loss (W): 4,9

Rated current In (A): 63

Class: gG

Rated Voltage Un AC (V): 690

Rated breaking capacity I1 AC (kA): 80

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: PCB Mount Terminals

Melting I²t value (A²s): 9700

Total clearing I²t @Un AC (A²s): 37800

Applicable standards: IEC

Available

Datasheet

Compare

Fuse 690V gG 80A 22x58mm with pins for PCB soldering

Reference: 743.433.07

Series name: G225

Power loss (W): 6,3

Rated current In (A): 80

Class: gG

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 120

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: PCB Mount Terminals

Melting I²t value (A²s): 16500

Total clearing I²t @Un AC (A²s): 64000

Applicable standards: IEC

Available

Datasheet

Compare

Fuse 690V gG 100A 22x58mm with pins for PCB soldering

Reference: 158.305.26

Series name: G225

Power loss (W): 7,9

Rated current In (A): 100

Class: gG

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 120

Fuse Dimension (mm): 22x58

Fuse Connection/Terminal type: PCB Mount Terminals

Melting I²t value (A²s): 29200

Total clearing I²t @Un AC (A²s): 100000

Applicable standards: IEC

Available

Datasheet

Compare

Fuse 500VAC gG/550VAC gR 100A 27x60mm with pins for PCB...

Reference: 171.902.24

Series name: G276

Power loss (W): 8

Rated current In (A): 100

Class: gG, gR

Rated Voltage Un AC (V): 500, 550

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 27x60

Fuse Connection/Terminal type: PCB Mount Terminals

Melting I²t value (A²s): 23650

Total clearing I²t @Un AC (A²s): 84000

Applicable standards: IEC, UL

Available

Datasheet

Compare

Fuse 500VAC gG 100A 27x60mm

Reference: 321.659.62

Series name: G276

Power loss (W): 8

Rated current In (A): 100

Class: gG

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 27x60

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 23650

Total clearing I²t @Un AC (A²s): 84000

Applicable standards: IEC

Available

Datasheet

Compare

Fuse 500VAC gG 125A 27x60mm

Reference: 344.575.93

Series name: G276

Power loss (W): 9,5

Rated current In (A): 125

Class: gG

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 27x60

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 42000

Total clearing I²t @Un AC (A²s): 150000

Applicable standards: IEC

Available

Datasheet

Compare

Fuse 500VAC gG/550VAC gR 160A 27x60mm with pins for PCB...

Reference: 858.953.83

Series name: G276

Power loss (W): 12

Rated current In (A): 160

Class: gG, gR

Rated Voltage Un AC (V): 500, 550

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 27x60

Fuse Connection/Terminal type: PCB Mount Terminals

Melting I²t value (A²s): 74650

Total clearing I²t @Un AC (A²s): 265000

Applicable standards: IEC, UL

Available

Datasheet

Compare

Fuse 500VAC gG 160A 27x60mm

Reference: 934.168.97

Series name: G276

Power loss (W): 12

Rated current In (A): 160

Class: gG

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 27x60

Fuse Connection/Terminal type: Cylindrical

Melting I²t value (A²s): 74650

Total clearing I²t @Un AC (A²s): 265000

Applicable standards: IEC

Available

Datasheet

Compare

Fuse 500VAC gG/550VAC gR 125A 27x60mm with pins for PCB...

Reference: 954.427.00

Series name: G276

Power loss (W): 9,5

Rated current In (A): 125

Class: gG, gR

Rated Voltage Un AC (V): 500, 550

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 27x60

Fuse Connection/Terminal type: PCB Mount Terminals

Melting I²t value (A²s): 42000

Total clearing I²t @Un AC (A²s): 150000

Applicable standards: IEC, UL

Available

Datasheet

Compare

Fuse 500V AC gG 27x60mm 100A with axial mount terminals

Reference: 230.954.02

Series name: G276

Power loss (W): 8

Rated current In (A): 100

Class: gG

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 27x60

Fixing connection centres (mm): 111

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 23650

Total clearing I²t @Un AC (A²s): 84000

Available

Datasheet

Compare

Fuse 500V AC gG 27x60mm 125A with axial mount terminals

Reference: 103.837.22

Series name: G276

Power loss (W): 9,5

Rated current In (A): 125

Class: gG

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 27x60

Fixing connection centres (mm): 111

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 42000

Total clearing I²t @Un AC (A²s): 150000

Available

Datasheet

Compare

Fuse 500V AC gG 27x60mm 160A with axial mount terminals

Reference: 319.568.73

Series name: G276

Power loss (W): 12

Rated current In (A): 160

Class: gG

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 27x60

Fixing connection centres (mm): 111

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 74650

Total clearing I²t @Un AC (A²s): 265000

Available

Datasheet

Compare

Fuse 500V AC gG 27x60mm 100A BS surface mount terminals

Reference: 940.883.08

Series name: G276

Power loss (W): 8

Rated current In (A): 100

Class: gG

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 27x60

Fixing connection centres (mm): 111

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 23650

Total clearing I²t @Un AC (A²s): 84000

Available

Datasheet

Compare

Fuse 500V AC gG 27x60mm 125A BS surface mount terminals

Reference: 423.767.72

Series name: G276

Power loss (W): 9,5

Rated current In (A): 125

Class: gG

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 27x60

Fixing connection centres (mm): 111

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 42000

Total clearing I²t @Un AC (A²s): 150000

Available

Datasheet

Compare

Fuse 500V AC gG 27x60mm 160A BS surface mount terminals

Reference: 160.433.33

Series name: G276

Power loss (W): 12

Rated current In (A): 160

Class: gG

Rated Voltage Un AC (V): 500

Rated breaking capacity I1 AC (kA): 100

Fuse Dimension (mm): 27x60

Fixing connection centres (mm): 111

Fuse Connection/Terminal type: Screw fixing

Melting I²t value (A²s): 74650

Total clearing I²t @Un AC (A²s): 265000

Available

Datasheet

Compare
